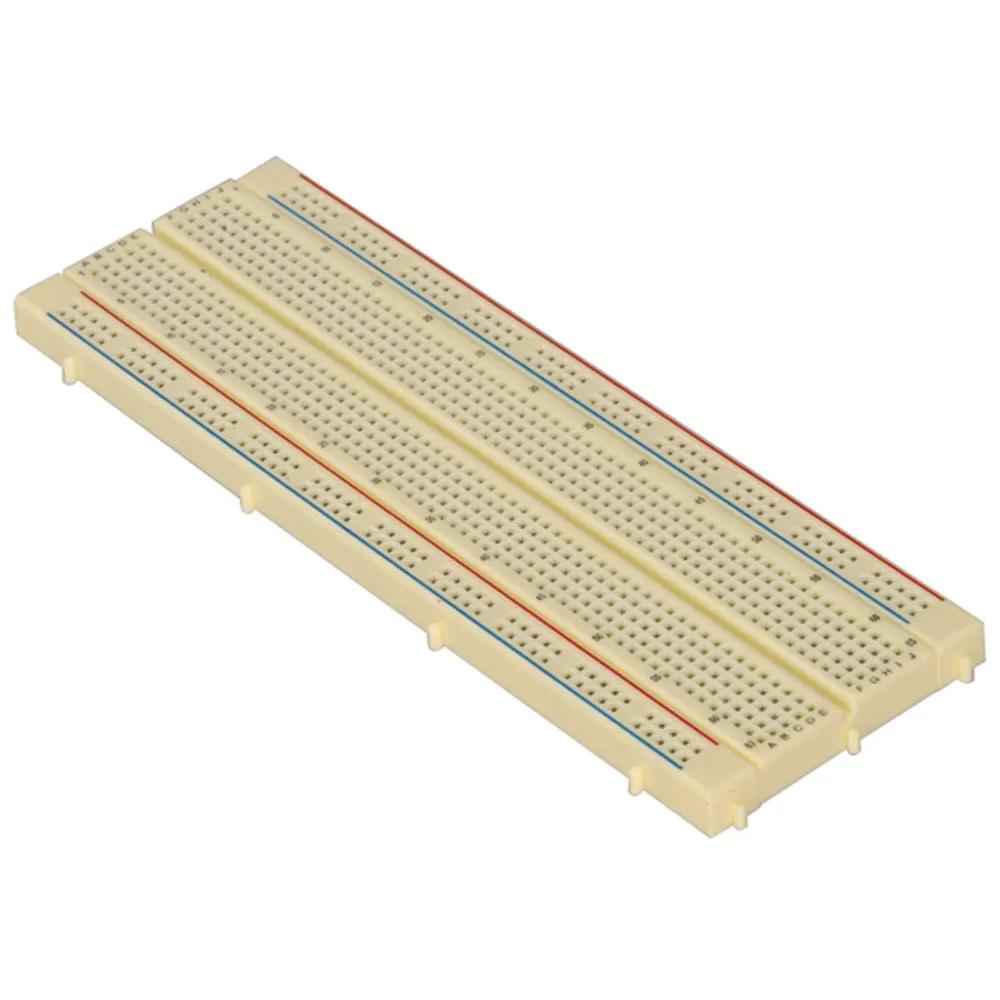

830-Point Solderless Breadboard

Features

• Accepts most electronic components, including integrated circuits and transistors for digital and/or analog circuitry
• 0.1" hole spacing
• Pins are identified by numbered rows and columns
• Ideal for high frequency and low noise circuits
• One-year warranty
• Use to breadboard and debug circuit designs
• Low static, plastic body - CMOS safe
• Nickel-plated clips designed to withstand up to 10,000 insertion cycles
• Breadboard power and ground strips can be detatched and connect together to form larger working areas
• Components are easily interconnected using 20-28 AWG wire (P/N 19290 & P/N 20080)
• Bus strips: 2
• Contact points: 830
• Breadboard size: 6.5"L x 2.125"W

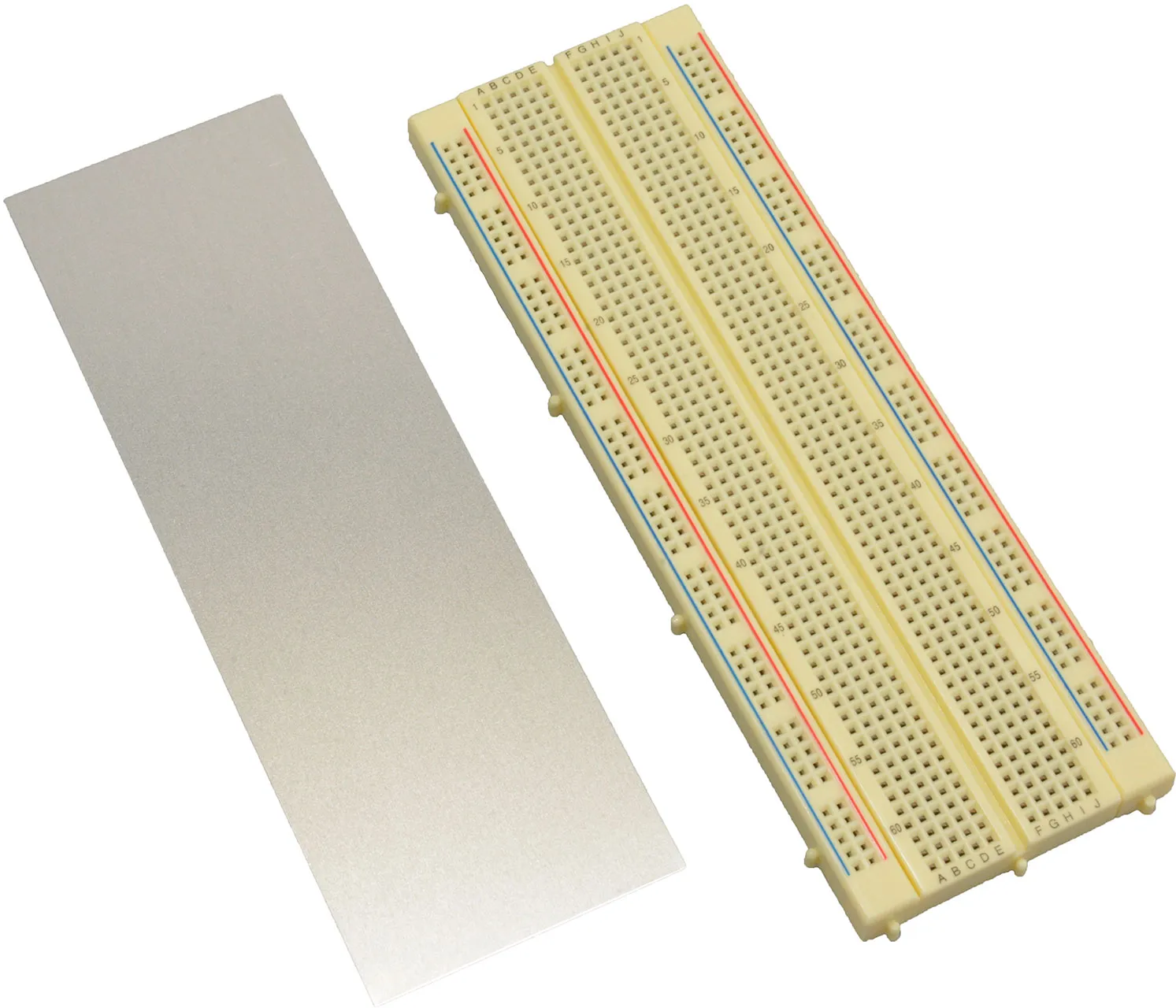

• Baseplate size: 6.5"L x 2.1"W (metal, not attached, included)
• Weight: 0.30 lbs.
• Rated Current: 5A @ 36V, 2A @ 48V

Overview

These long-lasting breadboards feature screen-printed color coordinates suitable for many types of digital and analog prototyping and circuit design. Use AC/DC breadboard power supply (P/N 77682).
