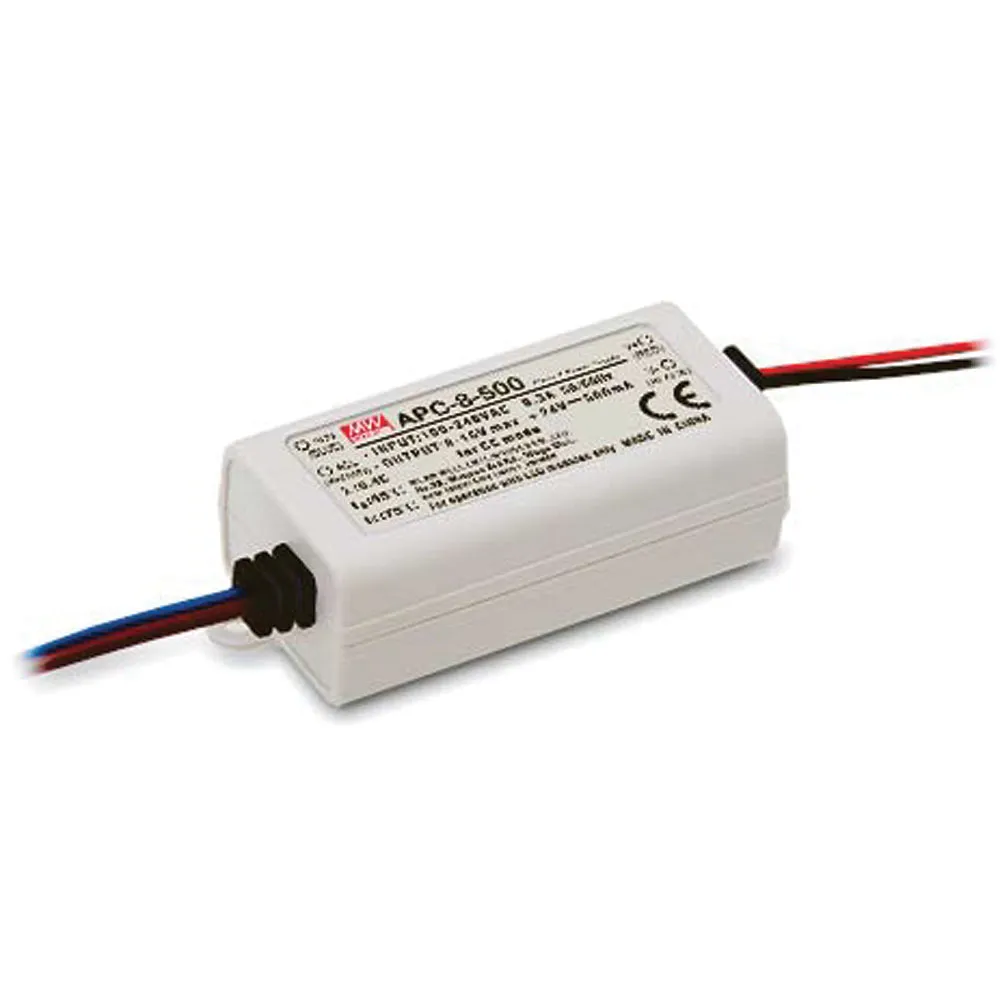

8-16 Volt 0.5 Amp 8 Watt AC-DC Switching LED Power Supply

500 mA @ 8 to 16 VDC

The APC-8 series is an 8W AC/DC constant current mode single output LED power supply.

Features

  • Output connector: (2) wires, 20 AWG stripped and tinned
  • Input connector: (2) wires, 18 AWG stripped and tinned
  • Constant current design
  • Universal AC input / Full range
  • Class II power unit, no FG (field ground)
  • Fully isolated plastic case
  • IP30 design
  • Small and compact size
  • Cooling by free air convection
  • Protection: Short circuit
  • No load power consumption <0.5W
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 year warranty

Applications

  • Indoor LED lighting
  • LED decorative lighting
  • LED office lighting

Related Products

  • APV-8 Series (8 watt constant voltage series)

    • Product Identification

    Product Type:Auto Switching SMPS
    Manufacturer Series:APC-8

    Compliance

    Agency Approvals:UL, CUL, CE, EN, EAC

    Dimensions & Appearance

    Style:Enclosed
    Color:White
    Height:0.87 in.
    Width:1.18 in.
    Length:2.36 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Maximum Input Current:0.15 A
    Input Voltage:90 VAC to 264 VAC

    Output

    Number of Outputs:1
    Output Current (Channel 1):0.5 A
    Output Voltage (Channel 1):8 VDC to 16 VDC
    Output Range:8 VDC to 16 VDC
    Output Connector Type:Stripped and Tinned
    Output Current:0.50 A
    Output Voltage:See Output Range

    Features

    PFC Function:No
    IP Rating:IP42
    Minimum Isolation Voltage:3750V
    Efficiency:81%
    Power Rating:8 W
    ,
