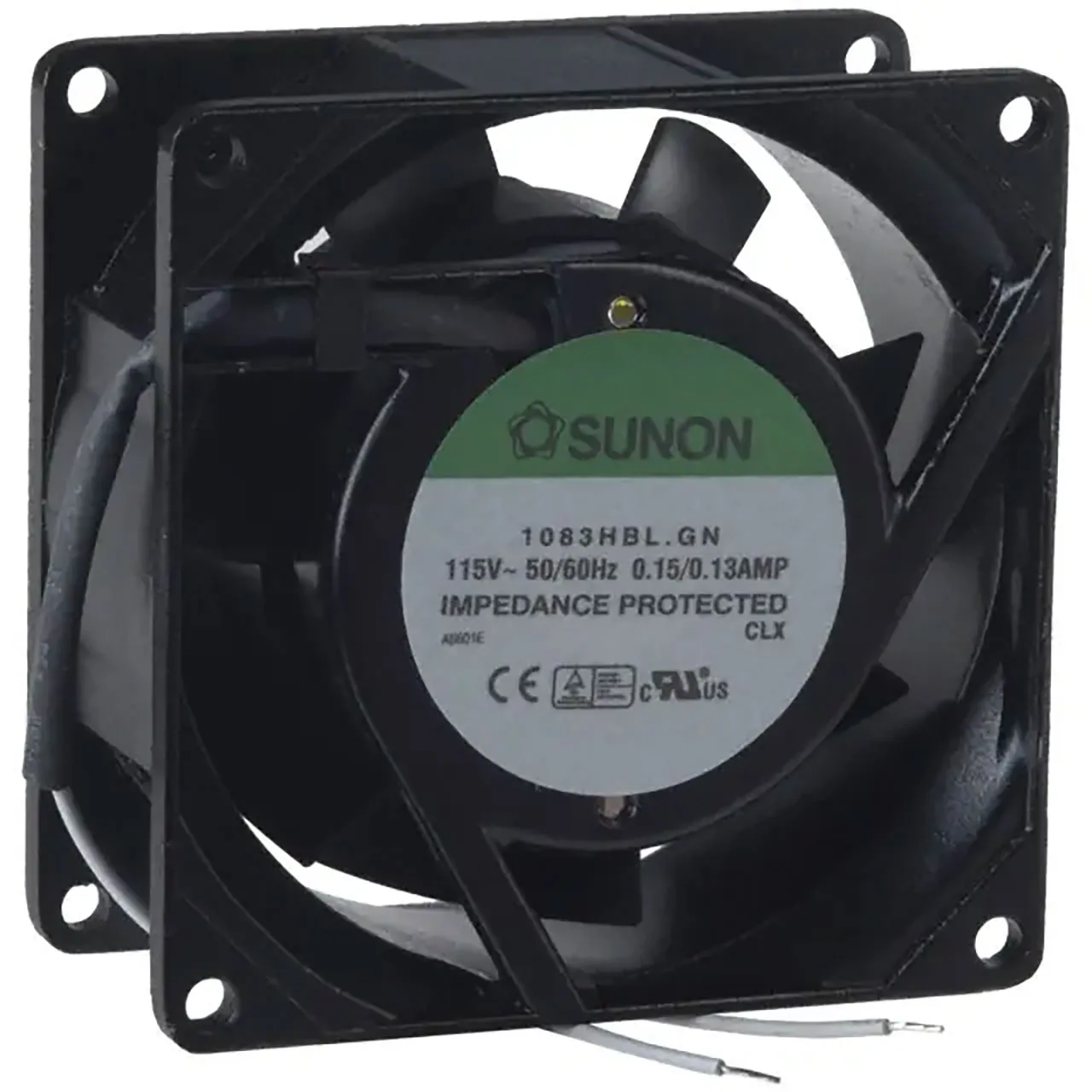

80x80x38mm Tubeaxial Fan Sleeve Bearing 115 VAC

Features

  • Voltage - Rated: 115VAC
  • Size / Dimension: Square - 80 mm L x 80 mm H
  • Width: 38 mm
  • Air Flow: 30 CFM (0.840 m³/min)
  • Static Pressure: 0.180 in H2O (44.8 Pa)
  • Bearing Type: Sleeve
  • Fan Type: Tubeaxial
  • Noise: 35.0dB(A)
  • Power (Watts): 12 W
  • RPM: 2750 RPM
  • Termination: 2 Wire Leads
  • Operating Temperature: 14 to 158°F (-10 to 70°C)
  • Approval Agency: CE, CUR, TUV, UL
  • Weight: 0.75 lb
  • Current Rating (Amps): 0.130 A
  • Voltage Range: 85 to 125VAC
  • Material - Frame: Aluminum
  • Material - Blade: Polybutylene Terephthalate (PBT)

Overview

The sleeve bearing system of the tubeaxial fan is designed to operate up to 2750 RPM with an aluminum frame.

Product Identification

Product Type:AC Fan
Manufacturer Series:ValuePro

Compliance

Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:38 mm
Height:80 mm
Width:80 mm

Features

Bearing:Sleeve
Air Flow (CFM):30
Noise (dBA):35
Termination:12" Wires
Voltage Rating:115 VAC
Power Rating:12 W
Current Rating:130 mA
,
