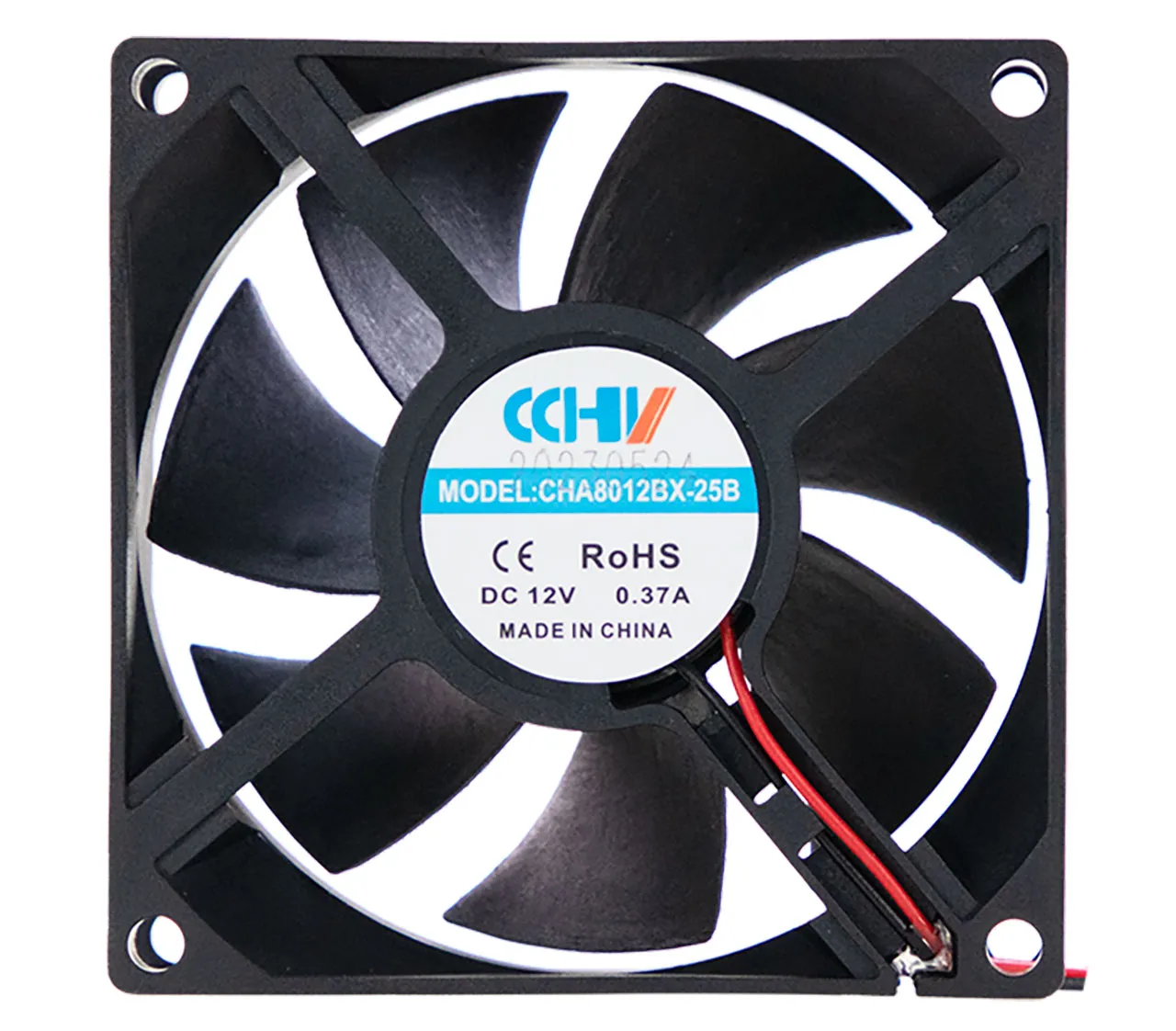

80x80x25mm Tubeaxial Fan 12 VDC Brushless Dual Ball Bearing 12" Wires 46 CFM
Features
- Voltage Rating: 12 VDC
- Length: 80 mm
- Width: 80 mm
- Height: 25 mm
- Air Flow (CFM): 46.46
- Bearing: Dual Ball
- Current Rating: 230 mA
- Power Rating: 2.76 W
- Agency Approvals: CE
- Noise (dBA): 39.8
- Connection (Leads): 12" Wires
- Speed: 3500 rpm
- Product Type: Fan
Overview
This cooling fan also known as a case fan or muffin fan, is an active cooling device mainly used in household electronics or industrial product equipment. They can continuously provide stable air volume that would help to prevent device overheating.
Product Identification
Product Type:DC Fan
Compliance
RoHS Status:ROHS Compliant
Agency Approvals:CE
Dimensions & Appearance
Depth:25 mm
Height:80 mm
Width:80 mm
Features
Bearing:Dual Ball
Air Flow (CFM):46.46
Noise (dBA):39.8
Maximum Pressure:0.20 in.
Motor Drive Type:Brushless DC
Voltage Rating:12 VDC
Speed:3500 rpm
Termination:12" Wires
Power Rating:3.6 W
Current Rating:230 mA
