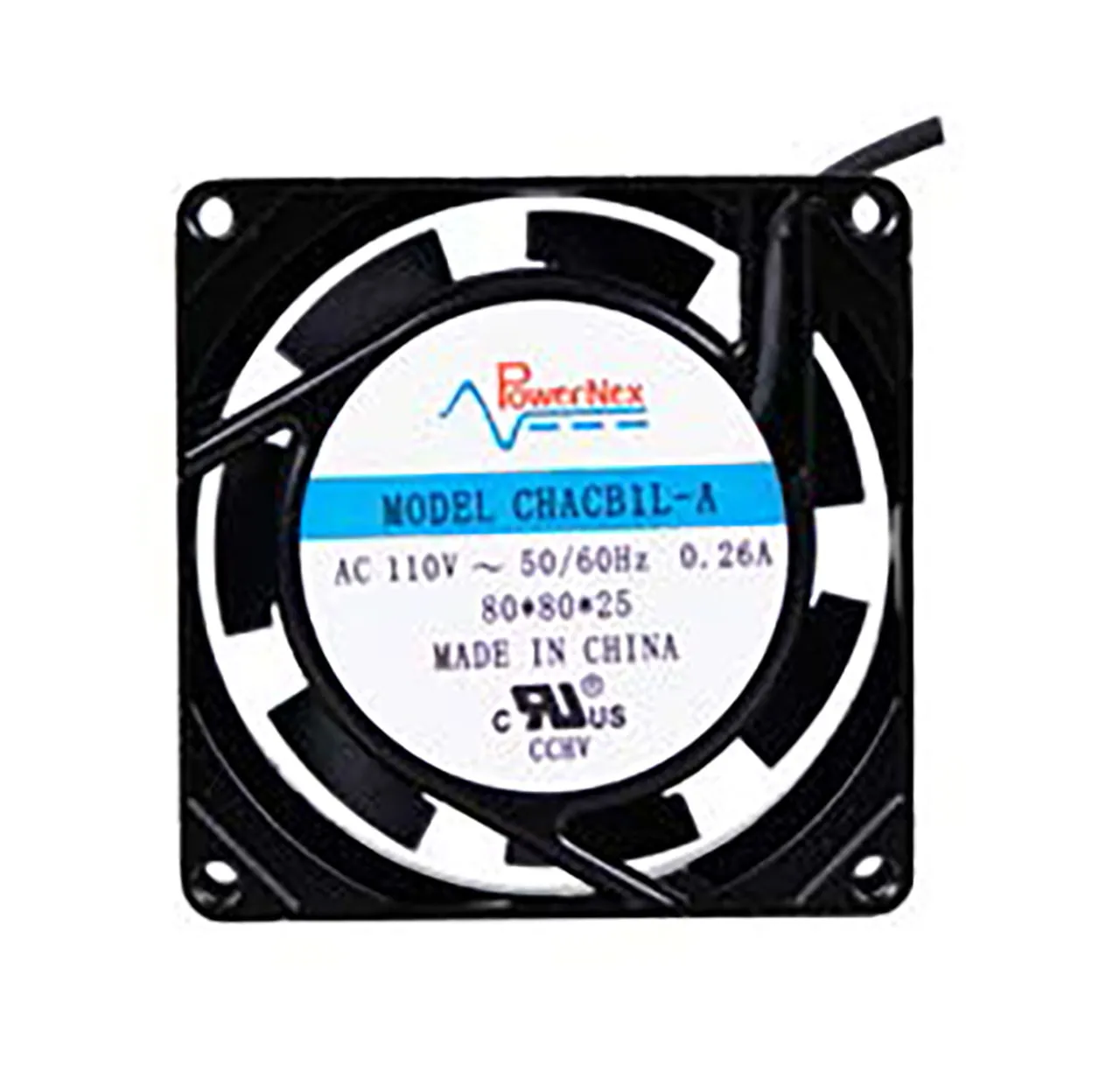

80x80x25mm Fan 110VAC Dual Ball Bearing 20 CFM 33dB 12" Wires
Features
- Wide operating environment temperature: -20°C to +70°C.
- Direct driven by AC power, no need for additional peripheral drivers
- Aluminum alloy frame, sturdy and durable structure.
Overview
80x80x25mm Fan 110VAC Dual Ball Bearing 20 CFM 33dB 12" Wires
Product Identification
Product Type:AC Fan
Additional Feature:Die Cast Aluminum Frame, Plastic Impeller
Compliance
RoHS Status:ROHS Compliant
Agency Approvals: CUL, UL
Dimensions & Appearance
Depth:25 mm
Height:80 mm
Width:80 mm
Features
Bearing:Dual Ball
Noise (dBA):33
Maximum Pressure:0.18 in.
Speed:2900 rpm
Air Flow (CFM):20
Termination:12" Wires
Voltage Rating:115 VAC
Power Rating:20 W
Current Rating:180 mA
