80MHz 2Ch Advanced-Series Arbitrary Waveform Generator

Features

• 80MHz, 2 channels, 320MS/s, Memory Depth: 16Mpts, 4.3in display, USB. Modulations: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM, DSB-AM
• Channels: 2Ch
• Memory Depth: 16Mpts
• Display Size: 4.3 in.
• Warranty: 3 years
• Interface: USB, LAN, 10MHz In/Out, Trigger, Mod In
• Prop65: No
• Reach: No

Overview

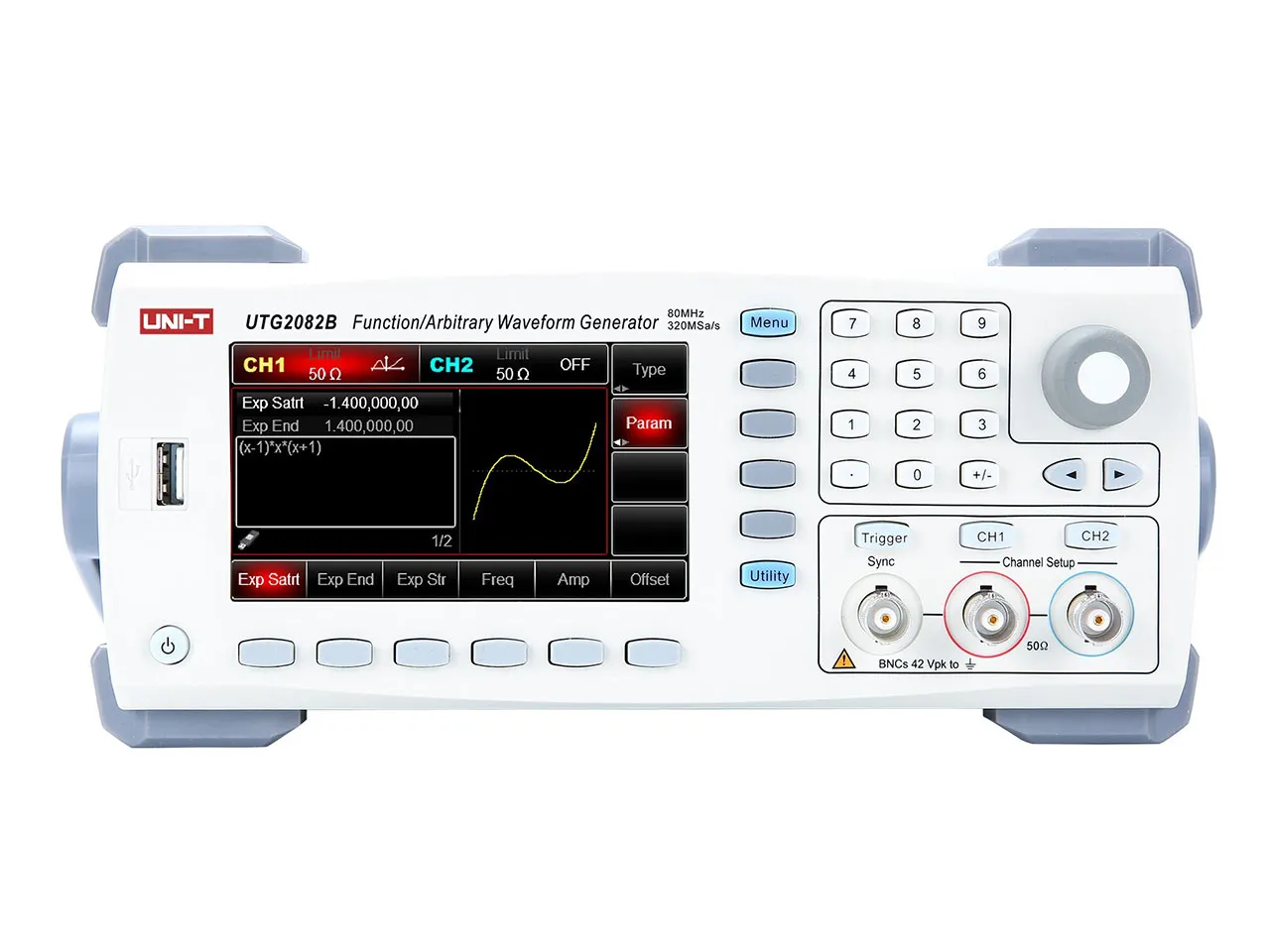

The UNI-Trend UTG2082B Advanced-Series aribtrary waveform generator is an affordable and stable 80MHz source for your test bench.

Technical Specifications

• Other Accessories: BNC straight-through cable, BNC to alligator clip cable
• Accessories Universal Accessories: Power cord, USB2.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• T Screen: No
• Frequency: 80MHz
• Vertical Resolution: 16 Bits
• Sweep Modes: Linear, Logarithmic
• Frequency Counter: 100mHz - 200MHz
• Built In Arb: 160
• Square Pulse Hz : 25MHz
• Modulation Types: AM, FM, FSK, PM, QAM, ASK, PSK, BPSK, QPSK, OSK, PWM, SUM, DSB-AM
• Waveforms: Sine, Square, Ramp, Pulse, Harmonic, Noise, DC, Arbitrary, Expression
• Sample Rate: 320MSa/s
