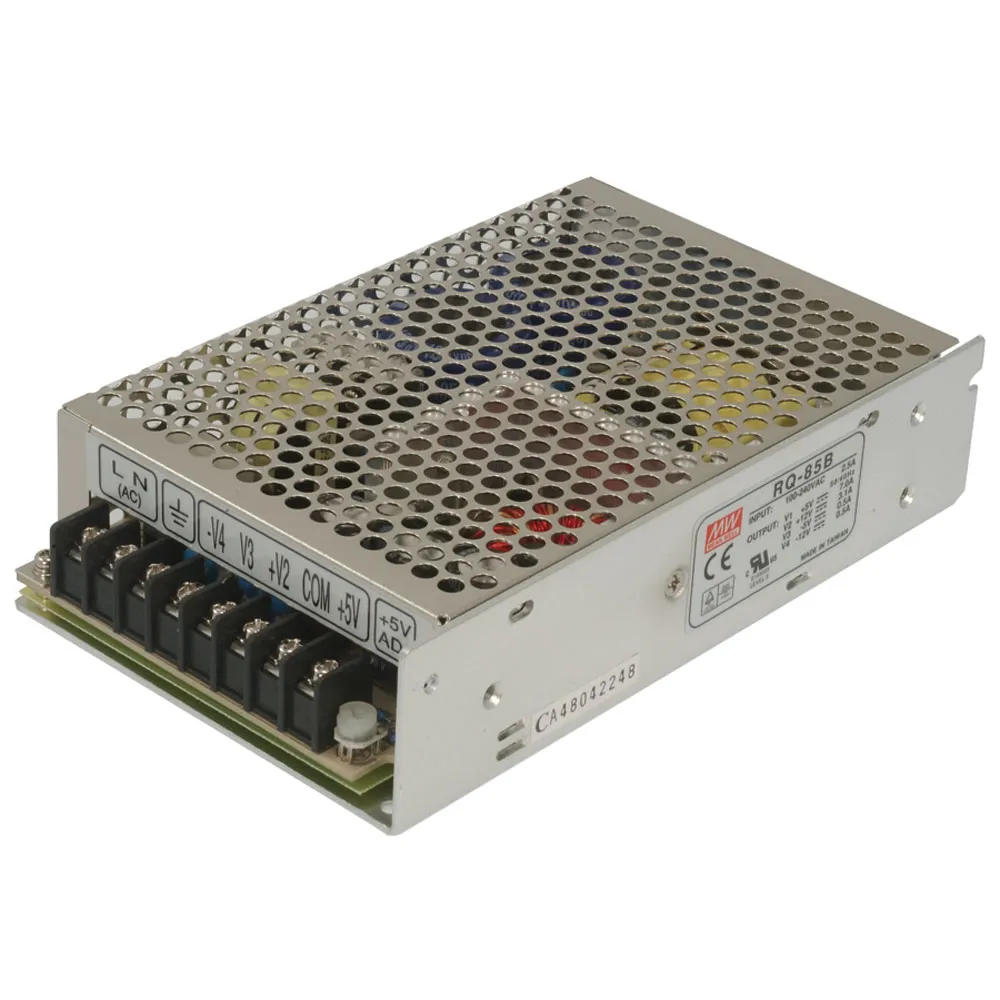

80.7W AC/DC Enclosed Switching Power Supply



+5 Volts @ 7 Amps (Channel 1)
+12 Volts @ 3.1 Amps (Channel 2)
-5 Volts @ 0.5 Amps (Channel 3)
-12 Volts @ 0.5 Amps (Channel 4)

Specifications

  • Size (L x W x H) (inches): 6.3 x 3.8 x 1.5
  • Ripple and Noise (mV p-p): 80
  • Load Regulation: 1.0%
  • Line Regulation: 0.5%
  • Input: 88-264VAC @ 47-63Hz
  • 5G Vibration
  • Able to withstand 300VAC surge input for 5 seconds
  • Short-circuit/overload/overvoltage protection
  • 3-year warranty
  • Certifications: UL/CUL/TUV/CE/CB

    • Product Identification

    Type:Auto Switching SMPS
    Product Type:AC to DC Power Supply
    Manufacturer Series:RQ-85

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Multiple Output
    Color:Silver
    Height:1.5 in.
    Width:3.8 in.
    Length:6.3 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:88 VAC to 264 VAC
    Maximum Input Current:2.5 A

    Output

    Output Current (Channel 4):0.5 A
    Output Voltage (Channel 4):-12 VDC
    Output Voltage (Channel 3):-5 VDC
    Number of Outputs:4
    Output Current (Channel 3):0.5 A
    Output Voltage (Channel 2):12 VDC
    Output Voltage (Channel 1):5 VDC
    Output Current (Channel 2):3.1 A
    Additional Output Voltages (VDC): -5, -12, 12
    Output Voltage:5 VDC
    Output Connector Type:Screw Terminal Block
    Output Current (Channel 1):7 A
    Output Current:7 A

    Features

    Minimum Isolation Voltage:3000V
    Efficiency:76%
    Power Rating:80.7 W
    ,
