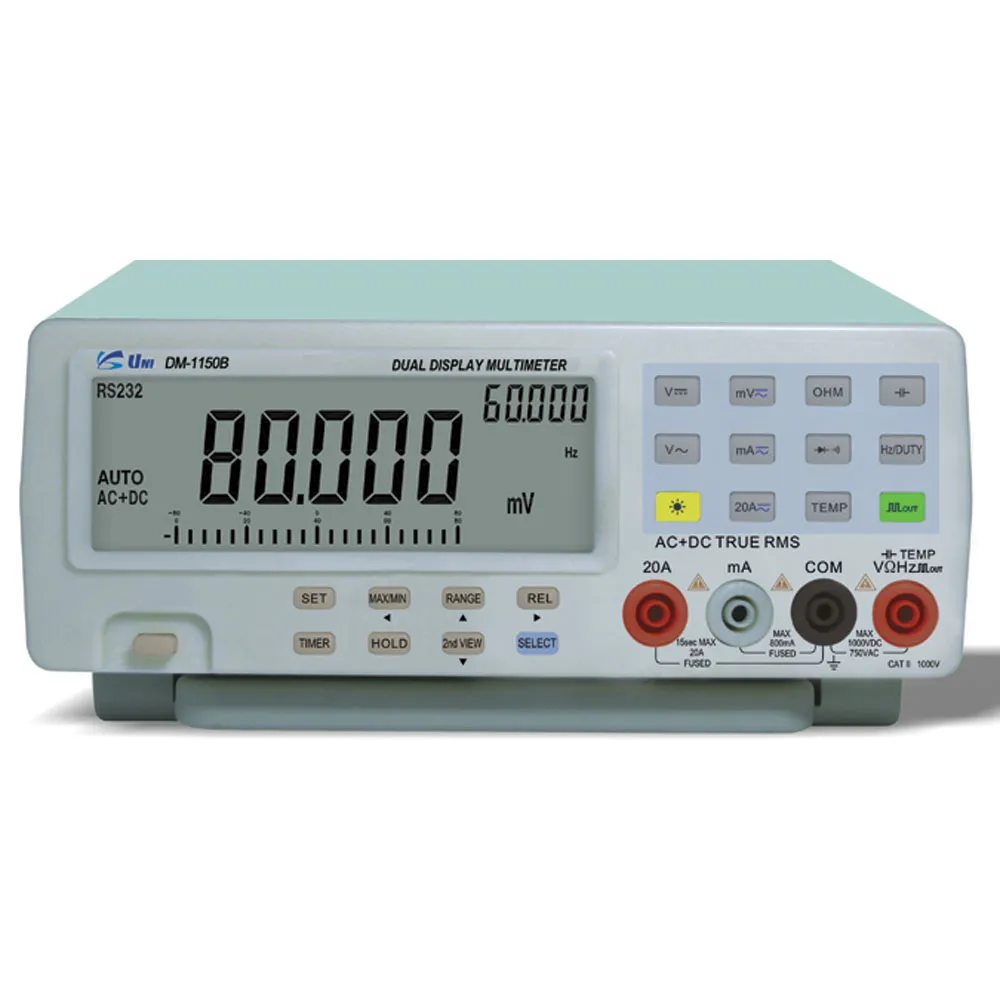

80,000 Count Benchtop Digital Multimeter
Features
Large LCD, 80000 count Dual-display, Analog bar 21 sets 50 measuring functions, with basic DCV, ACV, DCA, ACA, Ω, CAP, Hz, TEMP, diode and Continuity measuring function18 types of frequency, frequency up to 80MHz, 1800 waveform outputs, 0.1%~99% duty cycleSimultaneous measure (AC+DC), (AC+Hz), (DC+dBm), (dBm+Hz), (Hz+Duty), (°C+°F) Auto data update and refresh, auto data hold, auto peak hold36-hour dynamic record: MAG, MIN, AVG, MAX-MIN, setting upper & lower limit, timing measurementRS-232 interface Power requirement: 110/220VAC @ 50/60HzSize: 10.2"W x 8.7"D x 3.2"H (260mm(W) x 220mm(D) x 82mm (H))Weight: 3.1 lbs. (1.4kg)Includes: Test lead, TP-01 K-type thermocouple, RS232 package, user's manual
