80 mm x 80 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 130CFM 66.5dBA 12" Wires Tach Output and PWM | Jameco.com

Orion Fans

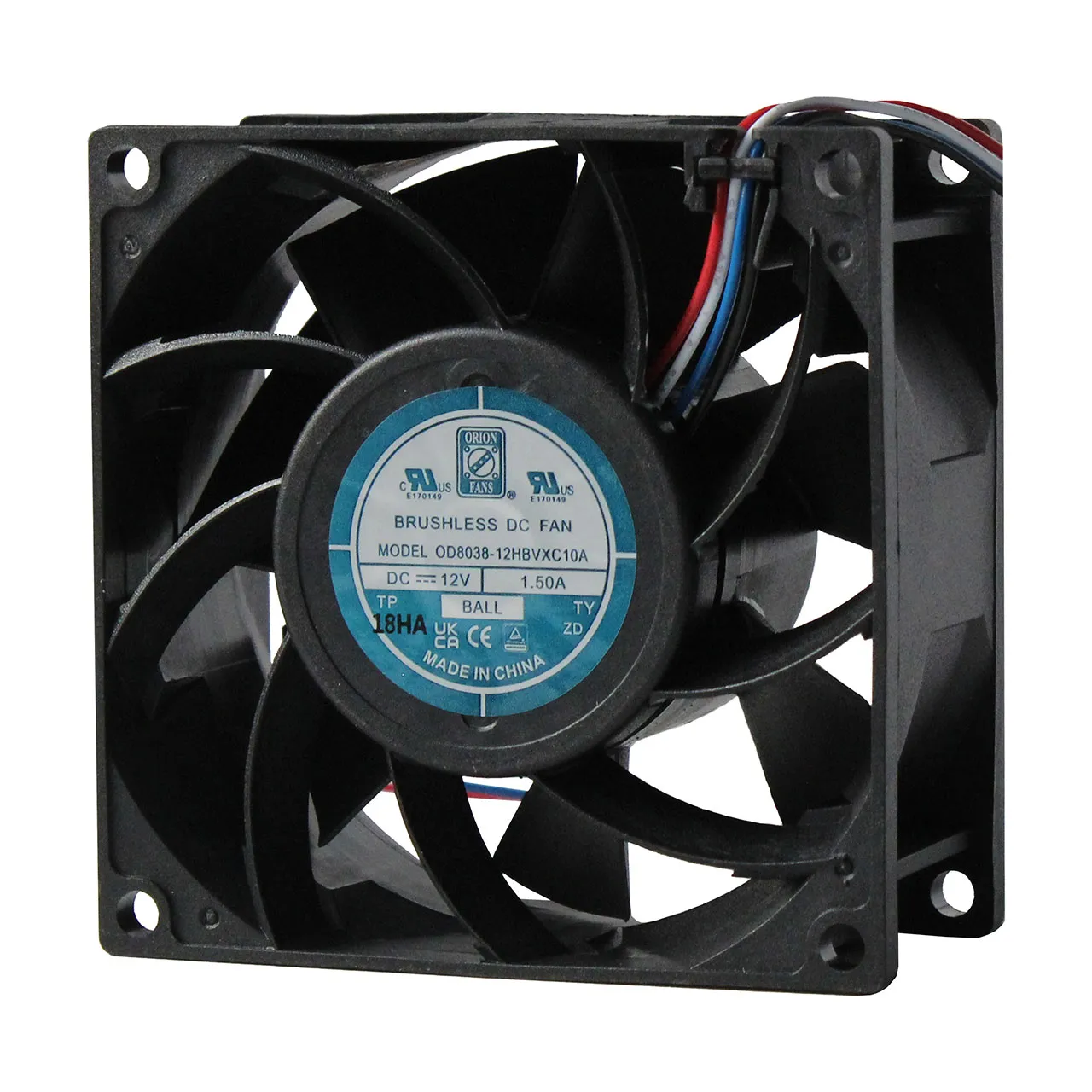

80 mm x 80 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 130CFM 66.5dBA 12" Wires Tach Output and PWM

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$22.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
3+	$22.850	-	-
12+	$21.450	1.40	6.13%
48+	$20.150	2.70	11.82%

80 mm x 80 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 130CFM 66.5dBA 12" Wires (4)

Features

Voltage Rating: 12 VDC
Height: 80 mm
Width: 80 mm
Depth: 38 mm
Air Flow (CFM): 130
Bearing: Ball
Current Rating: 3500 mA
Power Rating: 42 W
Agency Approvals: UL, CUL, TUV, CE, UKCA
Noise (dBA): 66.5
Termination: 12" Wires (4)
Product Type: 80mm x 80mm DC Fan
Speed: 8925 rpm
Maximum Pressure: 2 in.
Additional Features: Open Collector Tach Output and PWM
Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 8925 rpm.
