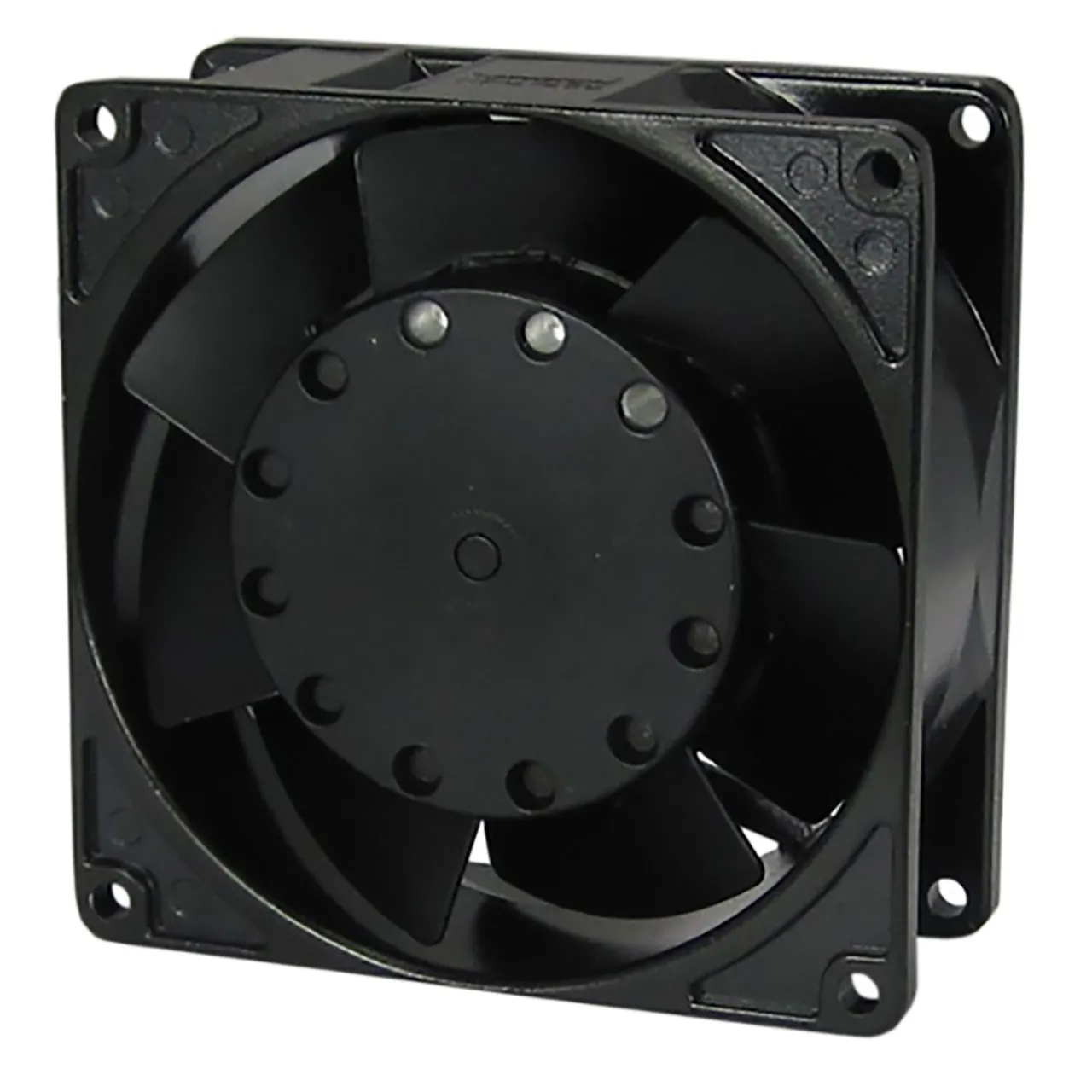

80 mm x 80 mm x 38 mm Tube Axial Fan 115 VAC Ball Bearing 33CFM 33dBA Terminals

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$39.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$39.850	-	-
10+	$37.450	2.40	6.02%
50+	$35.150	4.70	11.79%

Features

Voltage Rating: 115 VAC
Height: 80 mm
Width: 80 mm
Depth: 38 mm
Air Flow (CFM): 33
Bearing: Ball
Current Rating: 56 mA
Power Rating: 13 W
Agency Approvals: UL, CUL, TUV, CE, UKCA
Noise (dBA): 33
Termination: Terminals
Product Type: 80mm x 80mm AC Fan
Speed: 3200 rpm
IP Rating: IP55
Maximum Pressure: 0.18 in.
Motor Drive Type: Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3200 rpm.
