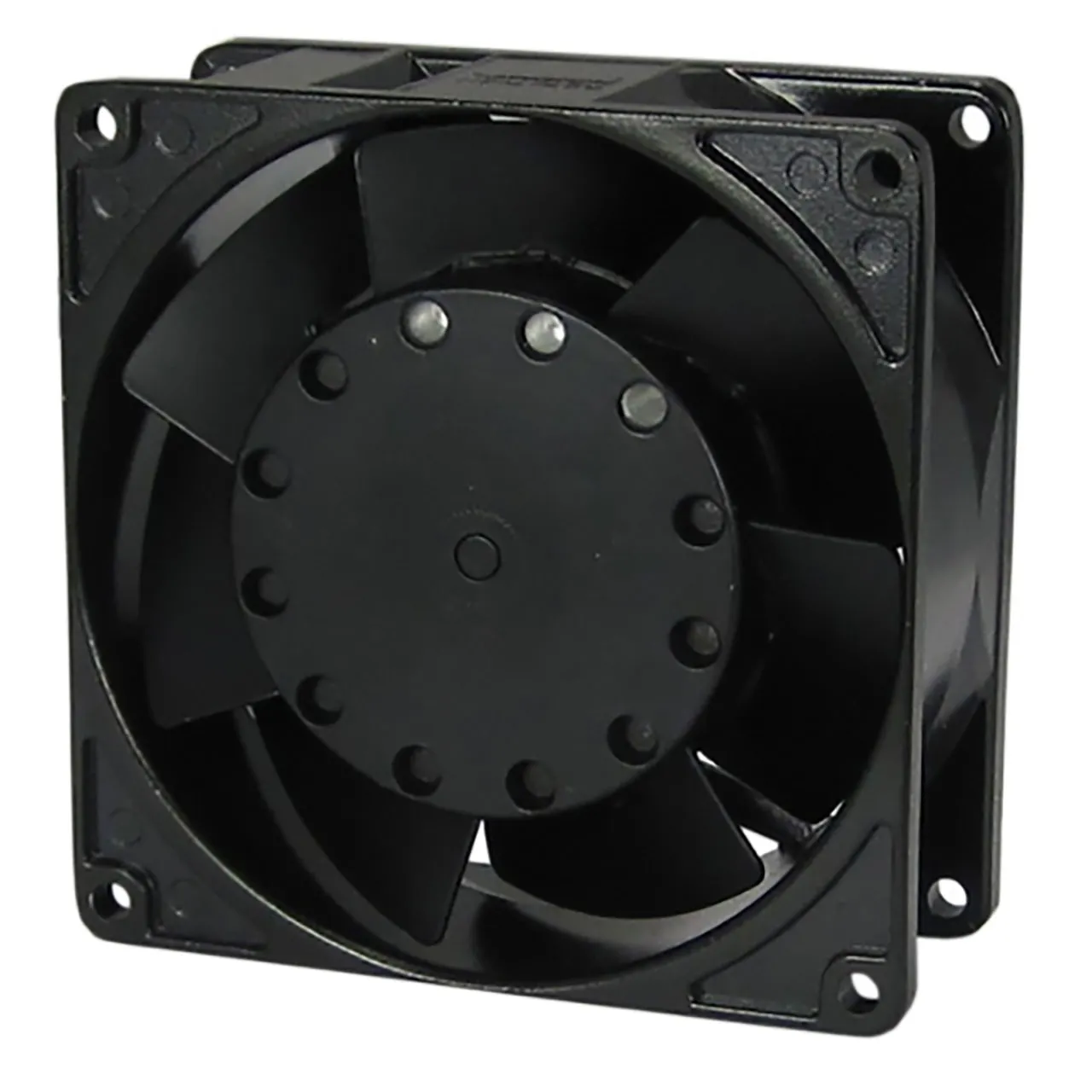

80 mm x 80 mm x 38 mm Tube Axial Fan 115 VAC Ball Bearing 26CFM 26dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 80 mm
  • Width: 80 mm
  • Depth: 38 mm
  • Air Flow (CFM): 26
  • Bearing: Ball
  • Current Rating: 43 mA
  • Power Rating: 10 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 26
  • Termination: Terminals
  • Product Type: 80mm x 80mm AC Fan
  • Speed: 2450 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.14 in.
  • Motor Drive Type: Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2450 rpm.

,
