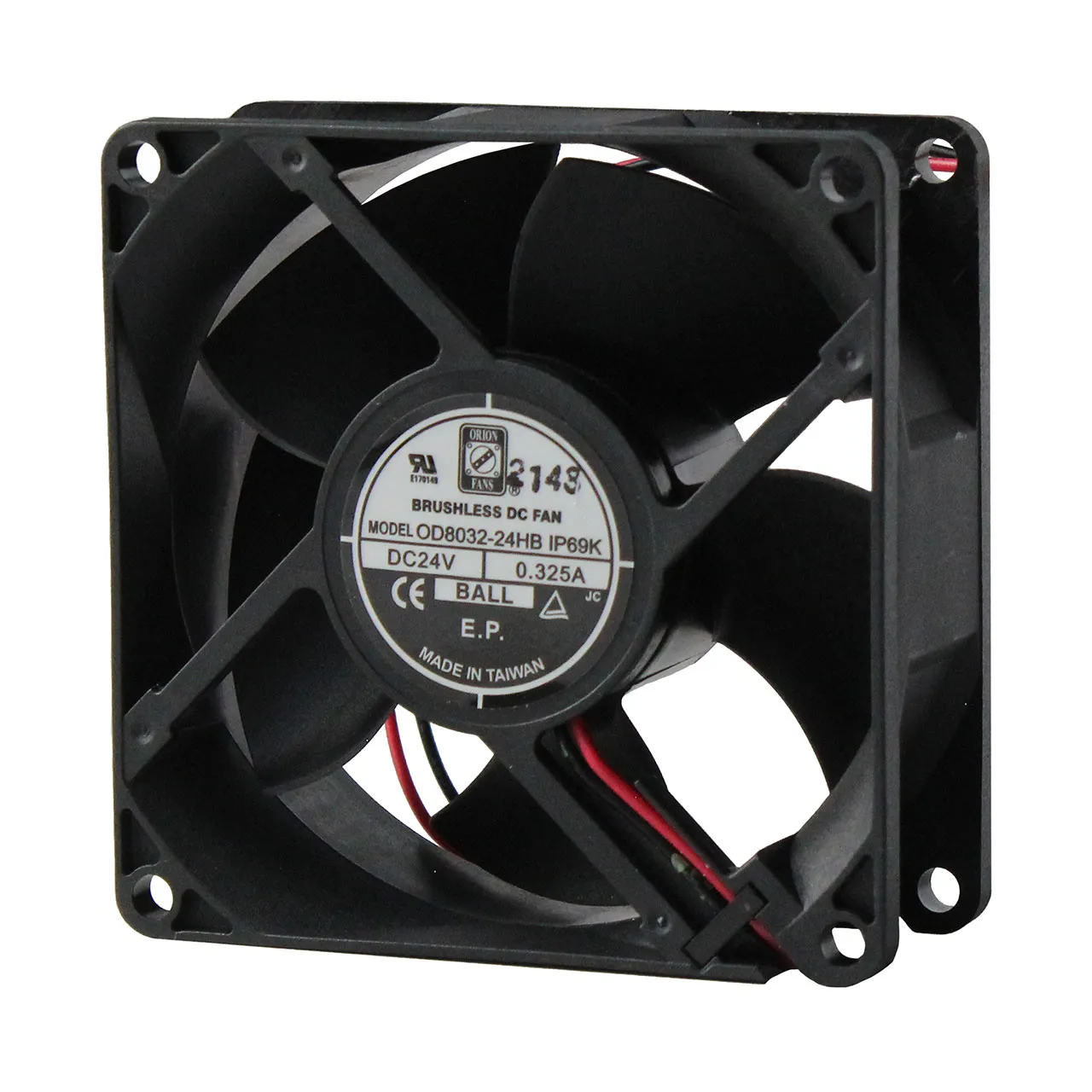

80 mm x 80 mm x 32 mm Tube Axial Fan 24 VDC Ball Bearing 77CFM 50dBA 12" Wires

Features

  • Voltage Rating: 24 VDC
  • Height: 80 mm
  • Width: 80 mm
  • Depth: 32 mm
  • Air Flow (CFM): 77
  • Bearing: Ball
  • Current Rating: 330 mA
  • Power Rating: 7.92 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 50
  • Termination: 12" Wires
  • Product Type: 80mm x 80mm DC Fan
  • Speed: 5900 rpm
  • IP Rating: IP69K
  • Maximum Pressure: 0.73 in.
  • Motor Drive Type: Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 5900 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:32 mm
Height:80 mm
Width:80 mm

Features

Bearing:Ball
Motor Drive Type:Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected
Noise (dBA):50
IP Rating:IP69K
Maximum Pressure:0.73 in.
Voltage Rating:24 VDC
Speed:5900 rpm
Termination:12" Wires
Air Flow (CFM):77
Power Rating:7.92 W
Current Rating:330 mA
,
