80 mm x 80 mm x 32 mm Tube Axial Fan 12 VDC Ball Bearing 60CFM 45.2dBA 12" Wires Alarm Output | Jameco.com

Orion Fans

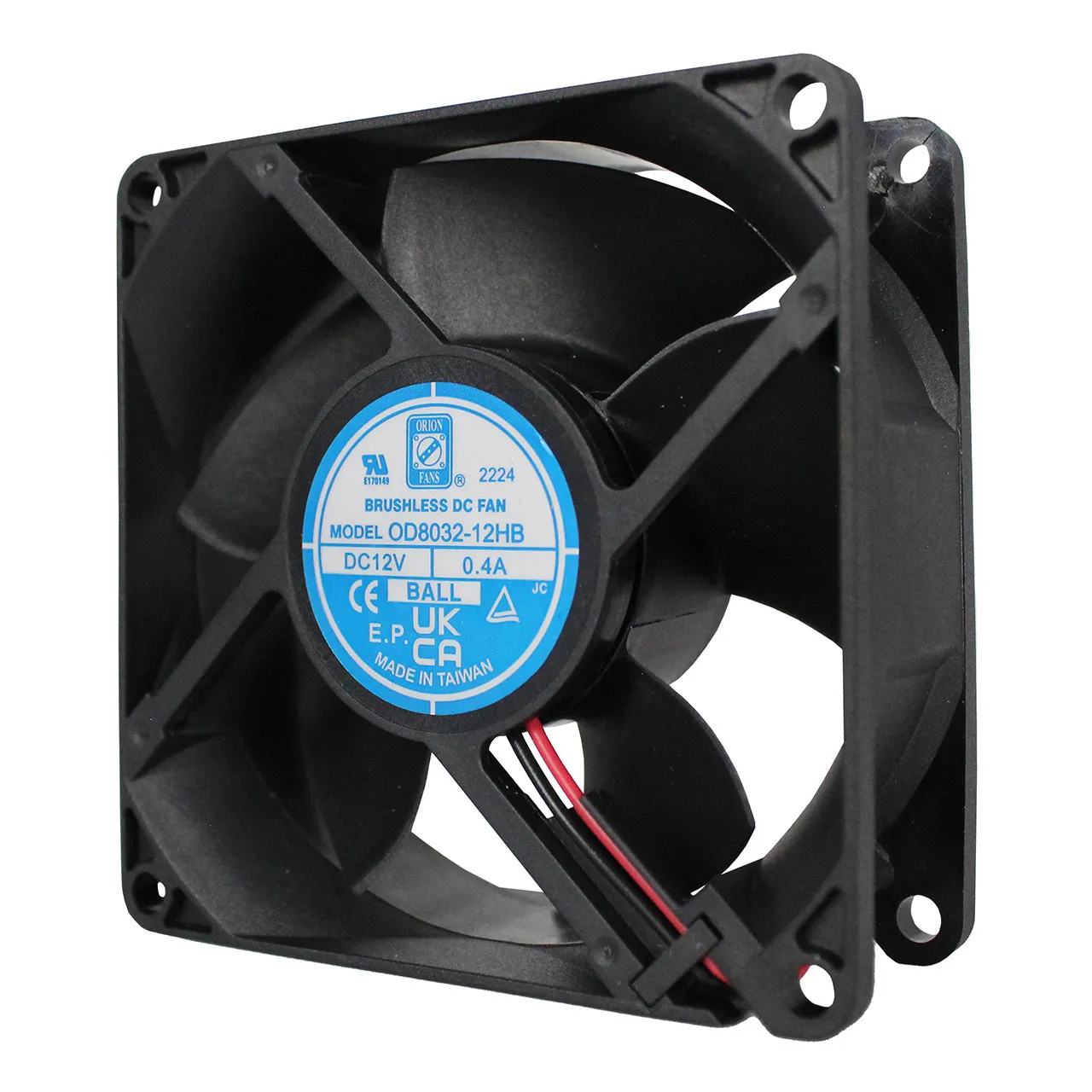

80 mm x 80 mm x 32 mm Tube Axial Fan 12 VDC Ball Bearing 60CFM 45.2dBA 12" Wires Alarm Output

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$17.150

In Stock: 0

Quantity	Unit Price	You Save	Discount
3+	$17.150	-	-
12+	$15.950	1.20	7%
48+	$14.950	2.20	12.83%

80 mm x 80 mm x 32 mm Tube Axial Fan 12 VDC Ball Bearing 60CFM 45.2dBA 12" Wires (3)

Features

Voltage Rating: 12 VDC
Height: 80 mm
Width: 80 mm
Depth: 32 mm
Air Flow (CFM): 60
Bearing: Ball
Current Rating: 400 mA
Power Rating: 4.8 W
Agency Approvals: UL, CUL, CE
Noise (dBA): 45.2
Termination: 12" Wires (3)
Product Type: 80mm x 80mm DC Fan
Speed: 4750 rpm
Maximum Pressure: 0.45 in.
Additional Features: Open Collector Alarm Output
Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 4750 rpm.
