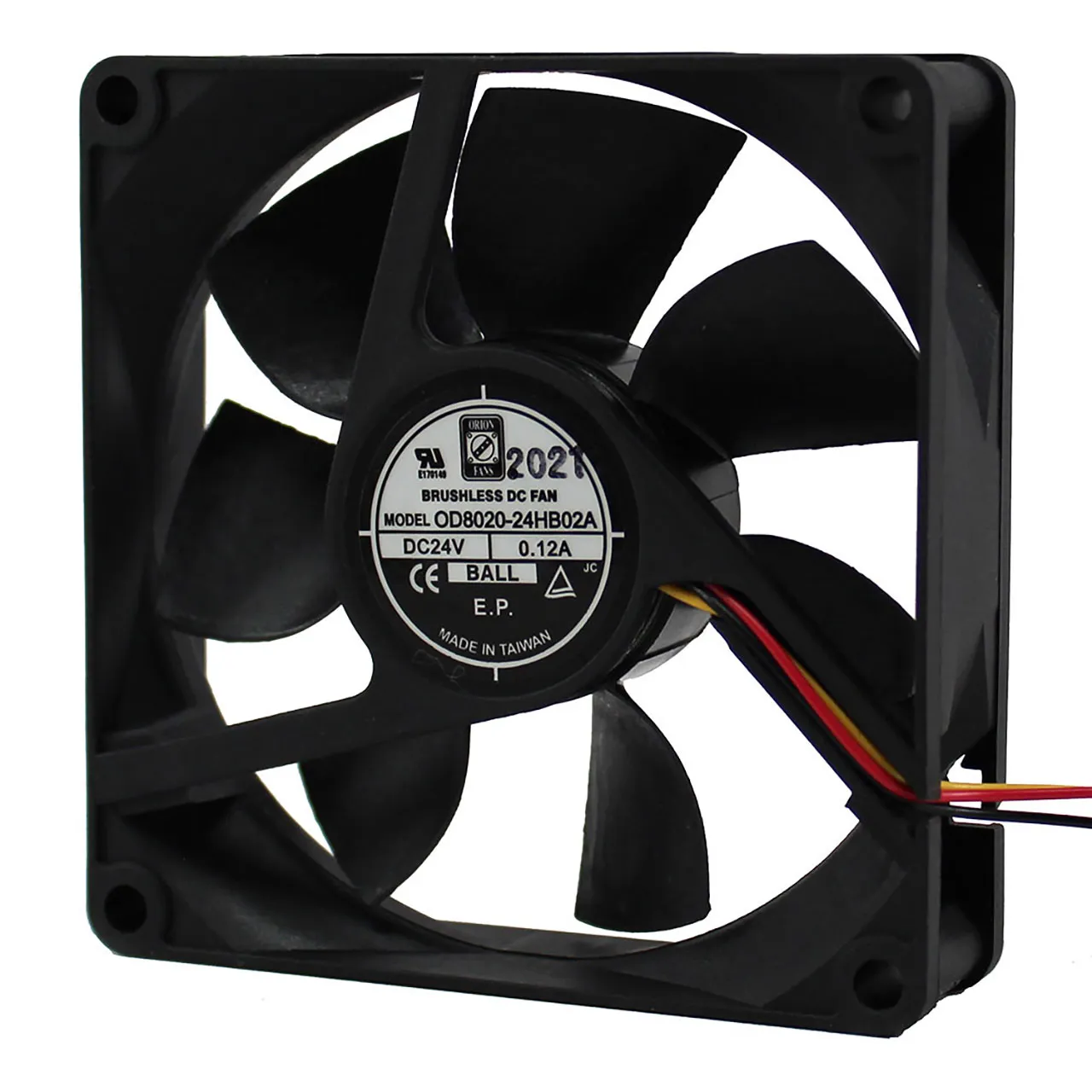

80 mm x 80 mm x 20 mm Tube Axial Fan 24 VDC Ball Bearing 40CFM 36dBA 12" Wires (3)

Features

  • Voltage Rating: 24 VDC
  • Height: 80 mm
  • Width: 80 mm
  • Depth: 20 mm
  • Air Flow (CFM): 40
  • Bearing: Ball
  • Current Rating: 120 mA
  • Power Rating: 2.88 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 36
  • Termination: 12" Wires (3)
  • Product Type: 80mm x 80mm DC Fan
  • Speed: 3400 rpm
  • Maximum Pressure: 0.18 in.
  • Additional Features: Open Collector Alarm Output
  • Motor Drive Type: Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3400 rpm.

,
