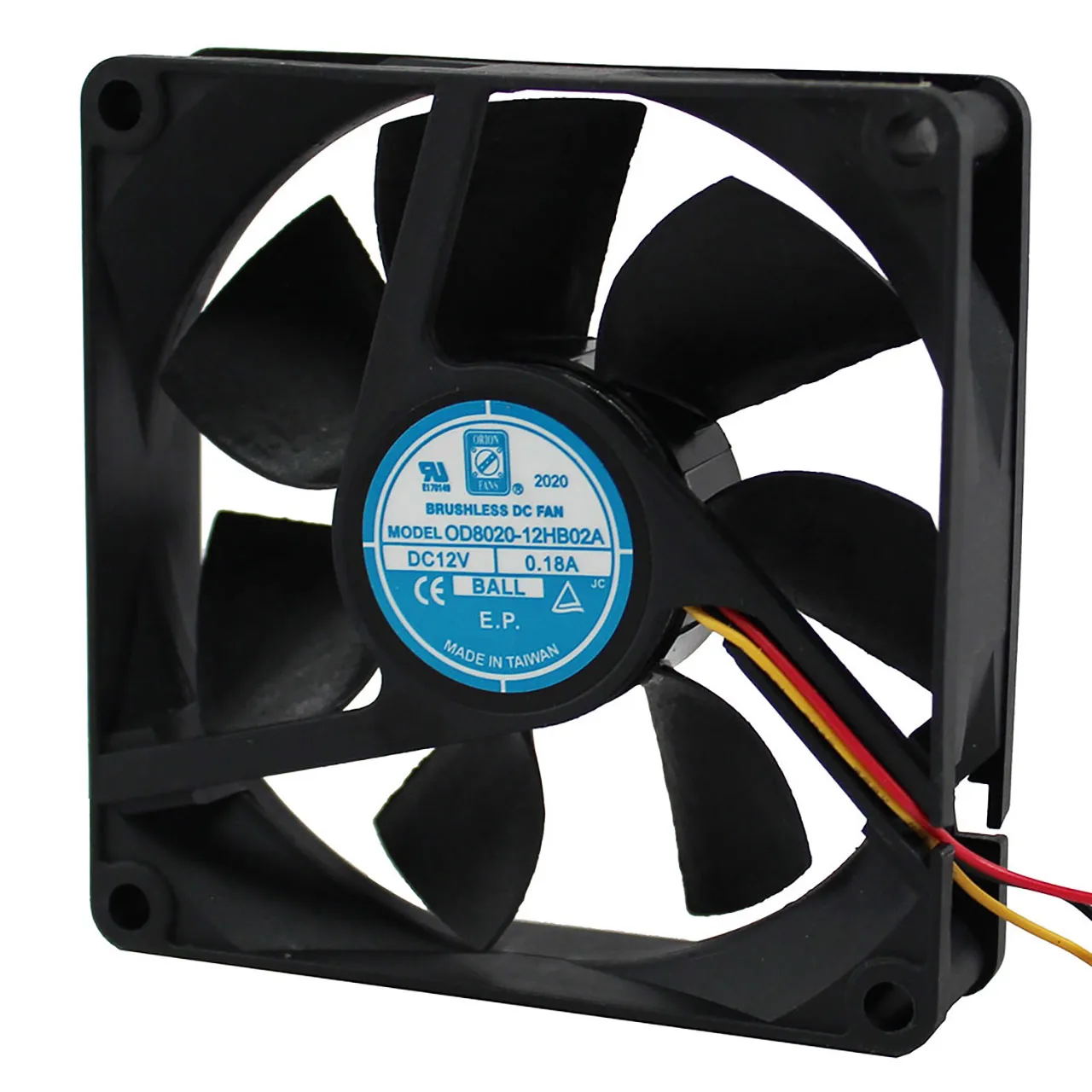

80 mm x 80 mm x 20 mm Tube Axial Fan 12 VDC Ball Bearing 40CFM 36dBA 12" Wires (3)
Features
- Voltage Rating: 12 VDC
- Height: 80 mm
- Width: 80 mm
- Depth: 20 mm
- Air Flow (CFM): 40
- Bearing: Ball
- Current Rating: 180 mA
- Power Rating: 2.16 W
- Agency Approvals: UL, CUL, TUV, CE
- Noise (dBA): 36
- Termination: 12" Wires (3)
- Product Type: 80mm x 80mm DC Fan
- Speed: 3400 rpm
- Maximum Pressure: 0.18 in.
- Additional Features: Open Collector Alarm Output
- Motor Drive Type: Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected
Overview
Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3400 rpm.
Product Identification
Additional Feature:Open Collector Alarm Output
Product Type:DC Fan
Compliance
Dimensions & Appearance
Depth:20 mm
Height:80 mm
Width:80 mm
Features
Bearing:Ball
Maximum Pressure:0.18 in.
Motor Drive Type:Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected
Noise (dBA):36
Voltage Rating:12 VDC
Speed:3400 rpm
Power Rating:2.16 W
Air Flow (CFM):40
Termination:12" Wires (3)
Current Rating:180 mA
