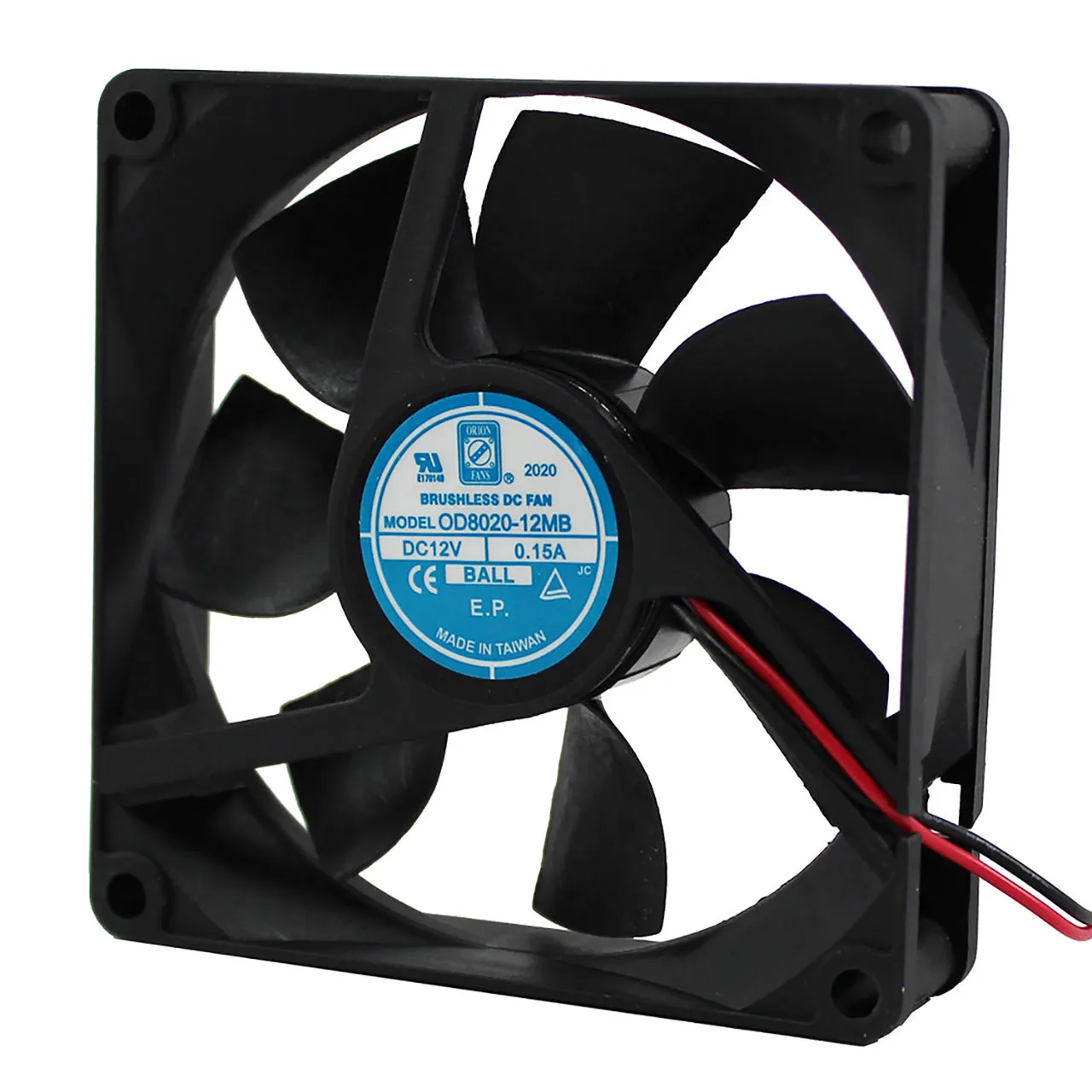

80 mm x 80 mm x 20 mm Tube Axial Fan 12 VDC Ball Bearing 32CFM 29dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 80 mm
  • Width: 80 mm
  • Depth: 20 mm
  • Air Flow (CFM): 32
  • Bearing: Ball
  • Current Rating: 140 mA
  • Power Rating: 1.68 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 29
  • Termination: 12" Wires
  • Product Type: 80mm x 80mm DC Fan
  • Speed: 2800 rpm
  • Maximum Pressure: 0.11 in.
  • Motor Drive Type: Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2800 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:20 mm
Height:80 mm
Width:80 mm

Features

Bearing:Ball
Maximum Pressure:0.11 in.
Motor Drive Type:Brushless DC, Auto Restart, Auto Cutoff, Polarity Protected, Electronically Protected
Speed:2800 rpm
Voltage Rating:12 VDC
Noise (dBA):29
Power Rating:1.68 W
Air Flow (CFM):32
Termination:12" Wires
Current Rating:140 mA
,
