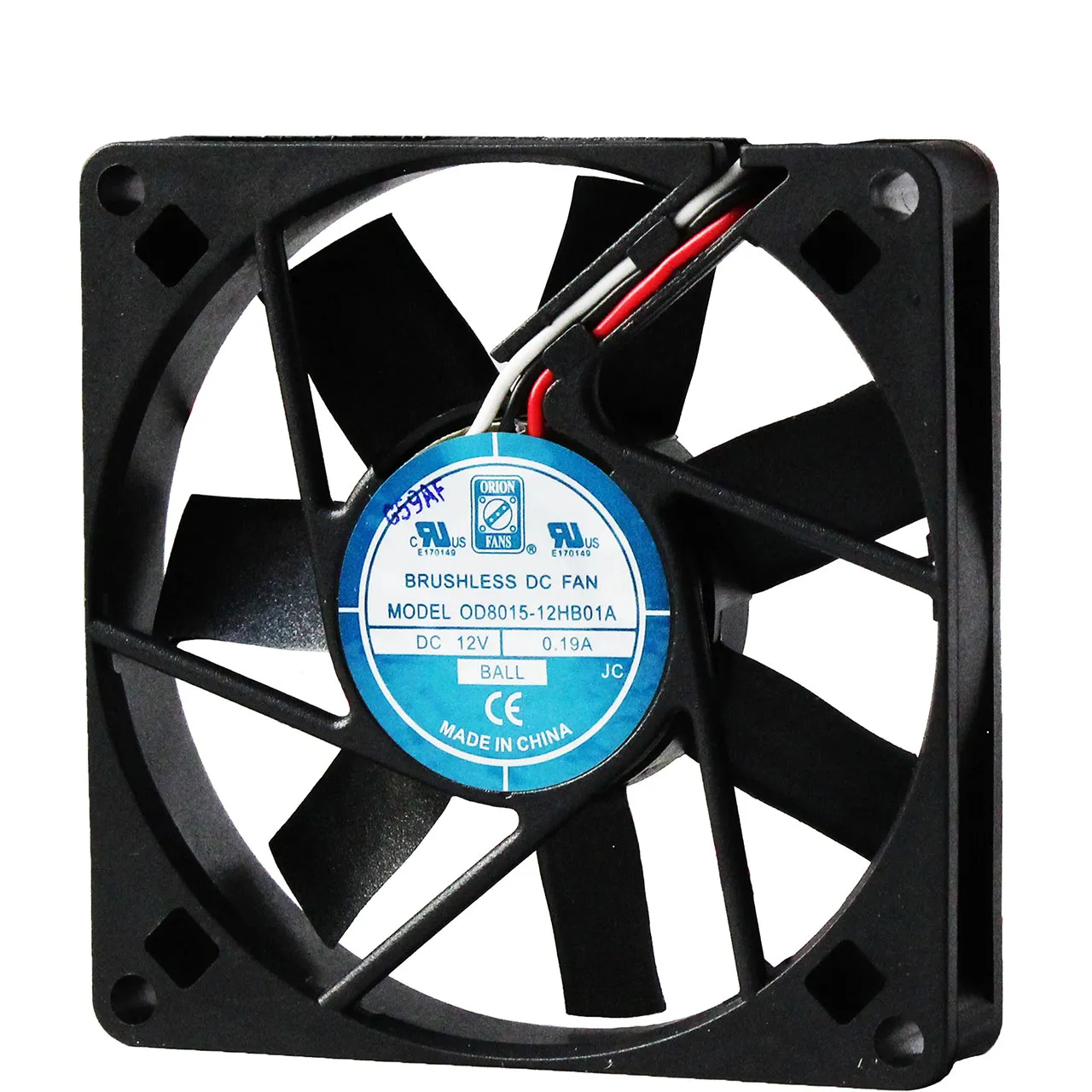

80 mm x 80 mm x 15 mm Tube Axial Fan 12 VDC Ball Bearing 23CFM 31.1dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 80 mm
  • Width: 80 mm
  • Depth: 15 mm
  • Air Flow (CFM): 23
  • Bearing: Ball
  • Current Rating: 120 mA
  • Power Rating: 1.44 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 31.1
  • Termination: 12" Wires
  • Product Type: 80mm x 80mm DC Fan
  • Speed: 2725 rpm
  • Maximum Pressure: 0.07 in.
  • Motor Drive Type: Brushless DC, Auto Restart, Impedance Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2725 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:15 mm
Height:80 mm
Width:80 mm

Features

Bearing:Ball
Maximum Pressure:0.07 in.
Air Flow (CFM):23
Motor Drive Type:Brushless DC, Auto Restart, Impedance Protected, Polarity Protected
Speed:2725 rpm
Voltage Rating:12 VDC
Power Rating:1.44 W
Noise (dBA):31.1
Termination:12" Wires
Current Rating:120 mA
,
