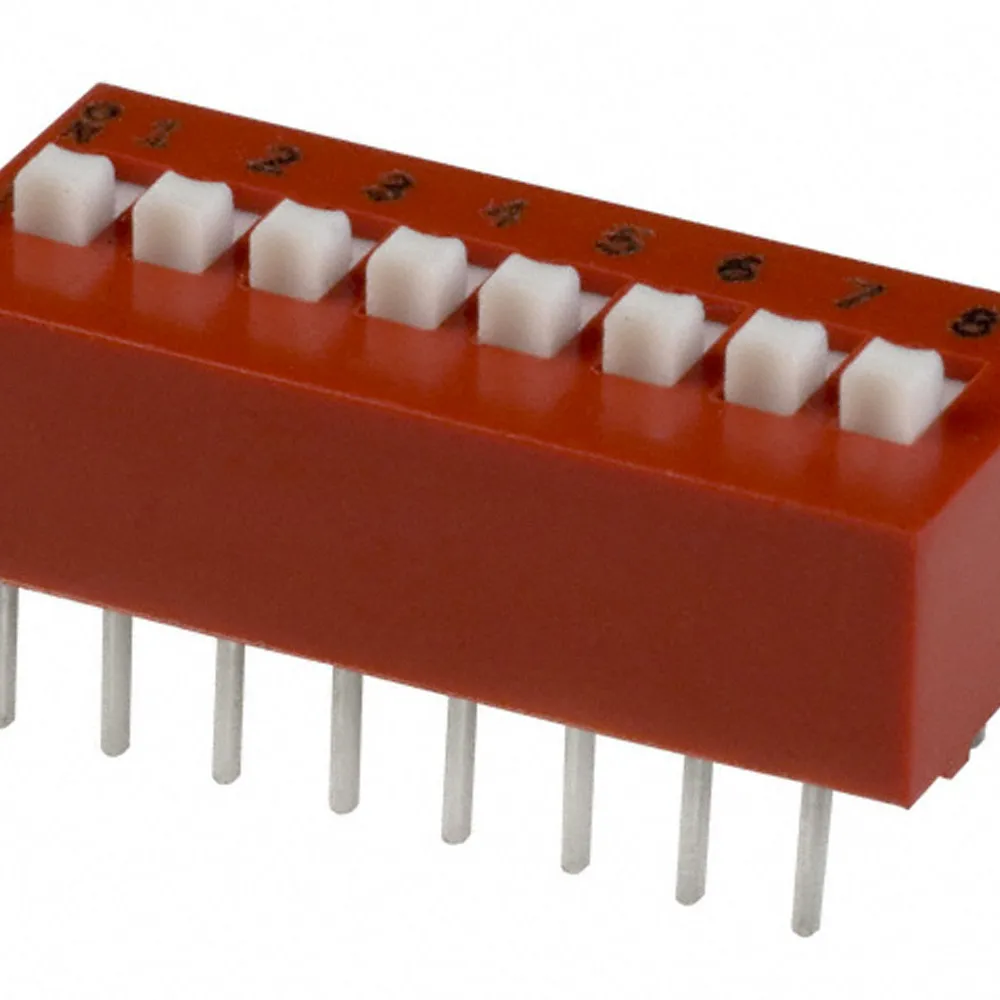

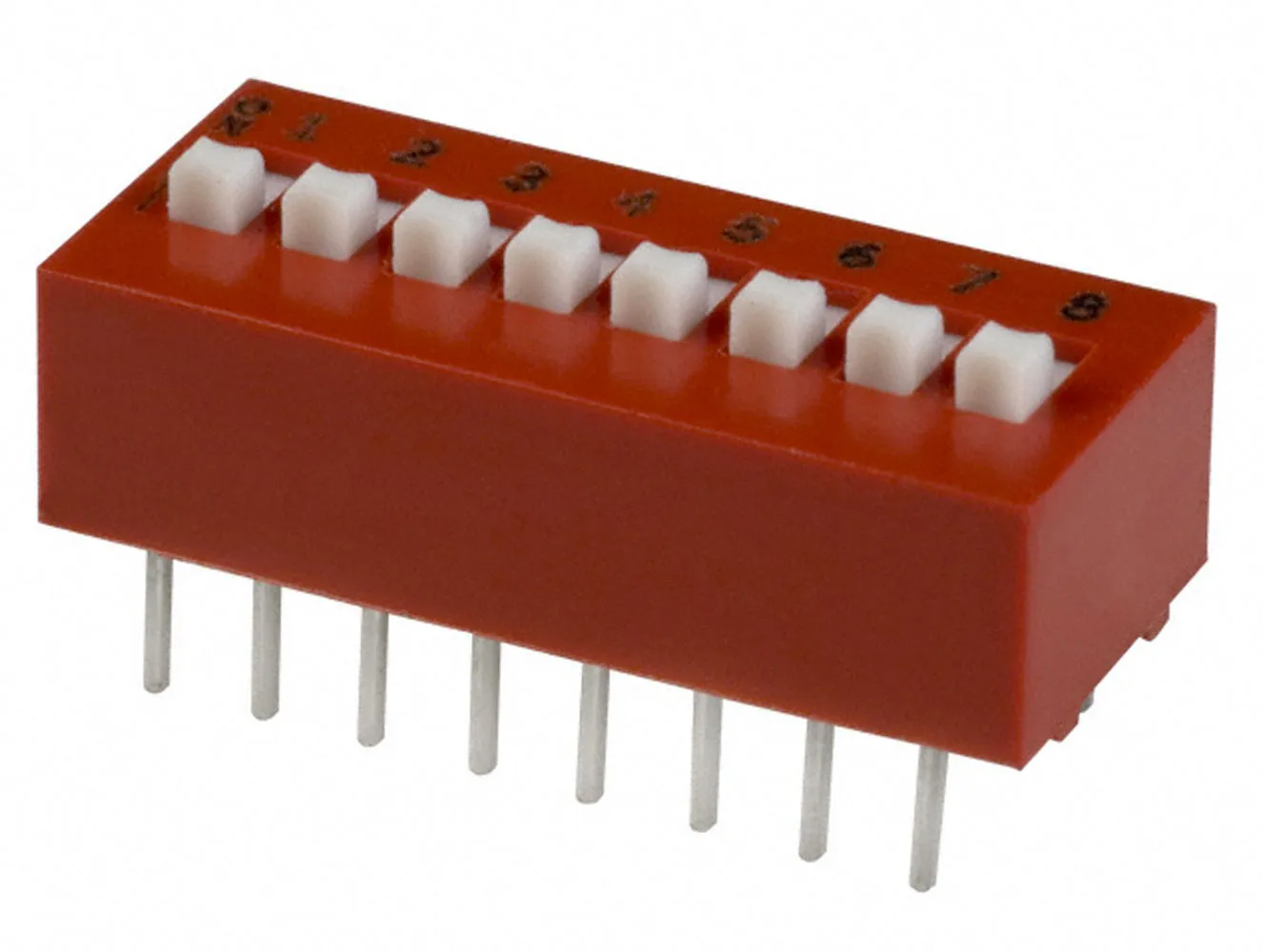

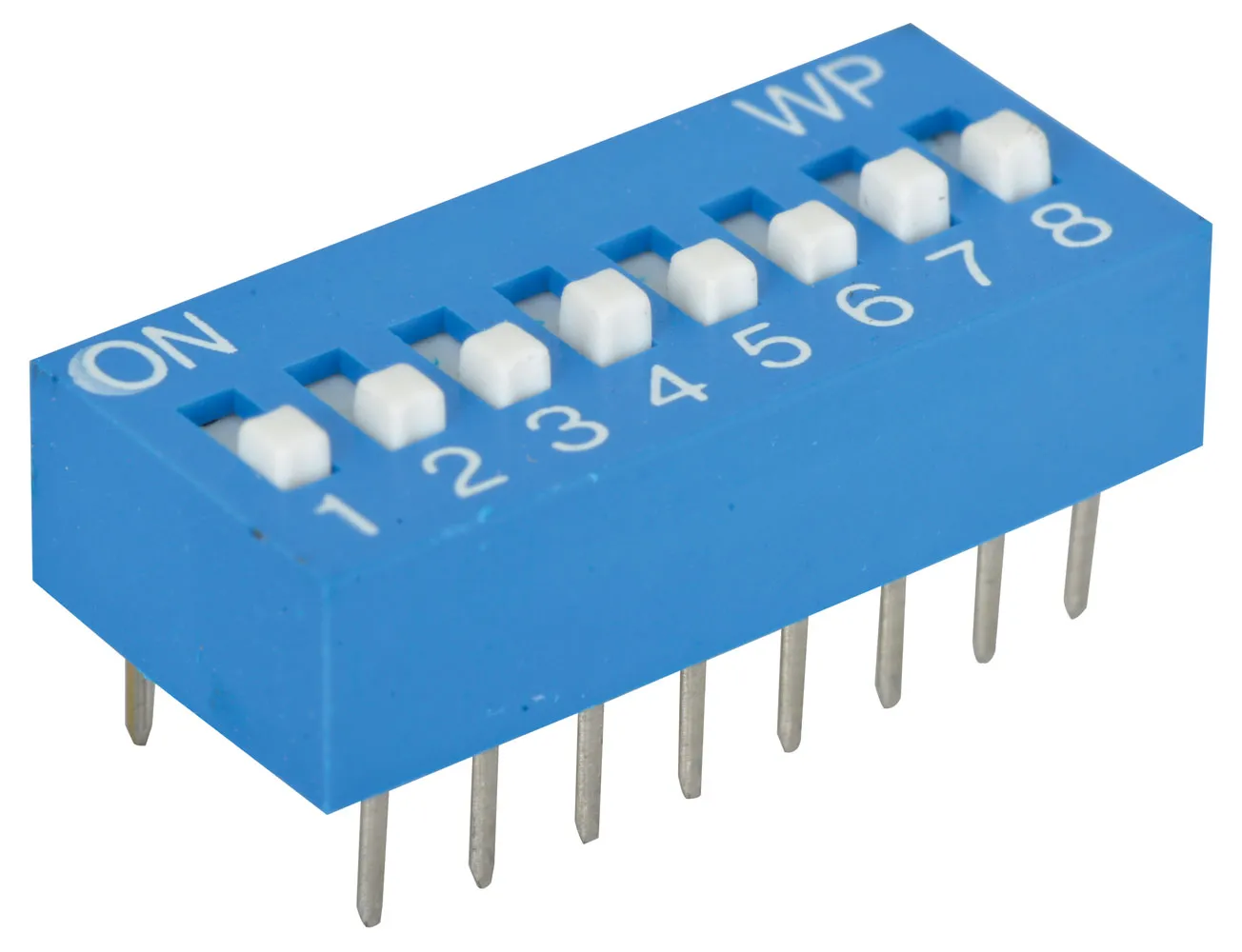

8 Position Standard Slide Raised DIP Switch

Switch Contacts: SPST

Features

  • Body: 0.85" L x 0.395" W x 0.265" H
  • 16-pin, 8-position
  • Gold-plated contact
  • Height: 0.29" (7.6 mm)
  • Slide Travel : 0.08" (2.03 mm)
  • Compatible socket: 112222
  • For use only on printed circuit boards; pins are not long enough for use on breadboards

Product Identification

Product Type:DIP Switch
Family:ValuePro

Dimensions & Appearance

Mounting:Through Hole

Features

Number of Positions:8
Contact Form:SPST
Actuator Type:Slide Raised (Standard)
,
