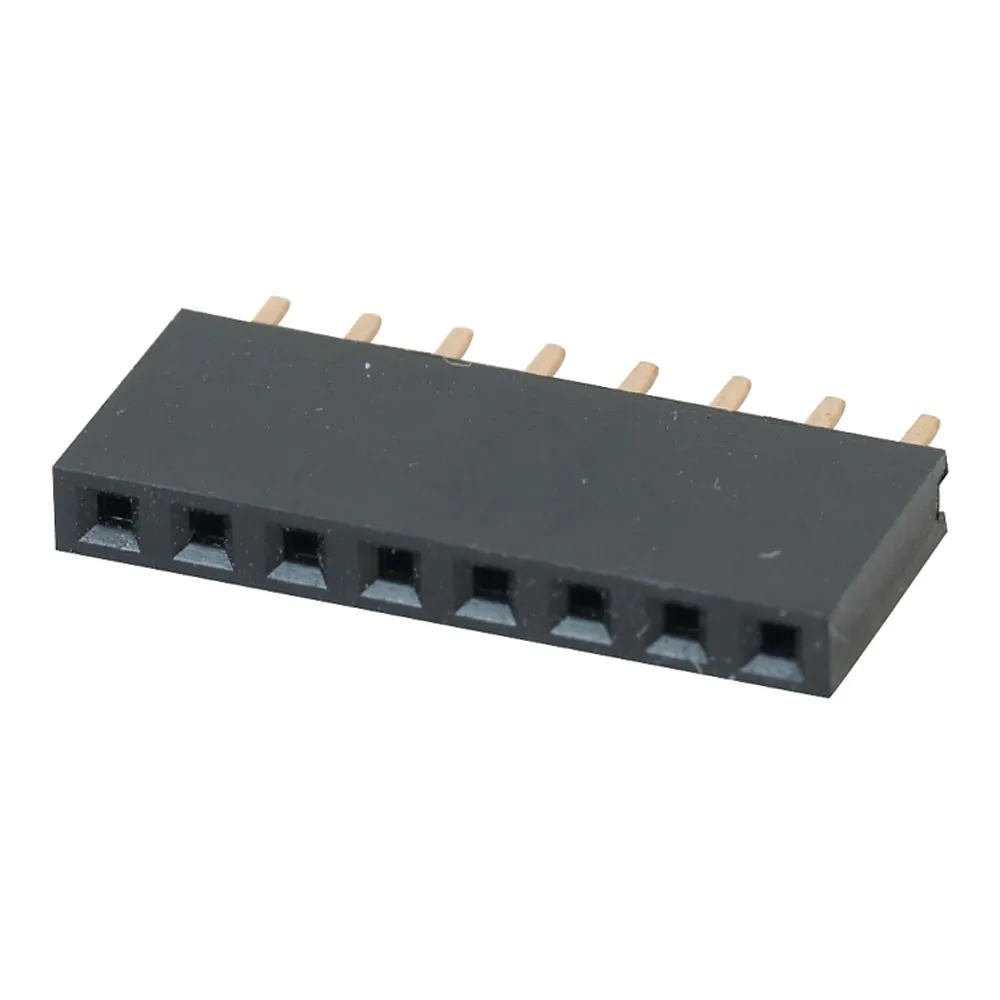

8 Position 0.1" Pitch Female Header Receptacle

Specifications

  • 8 position socket
  • 0.1" (2.54mm) pin spacing
  • Female header receptacle
  • Gold-plated contact
  • Size: 0.8"L x 0.98"W x 0.33"H
  • RoHS compliant

Dimensions & Appearance

Depth:2.5 mm
Length:20.32 mm
Body Orientation:Straight

Features

Number of Rows:1
Housing Color:Black
Maximum Contact Resistance:20 mOhm
Number of Contacts:8
Contact Plating:Gold Over Nickel
Gender:Female
Contact Material:Phosphor Bronze/Brass
Housing Material:Thermoplastic
Pitch:2.54 mm
Current Rating:1 A
Voltage Rating:250 VAC
,
