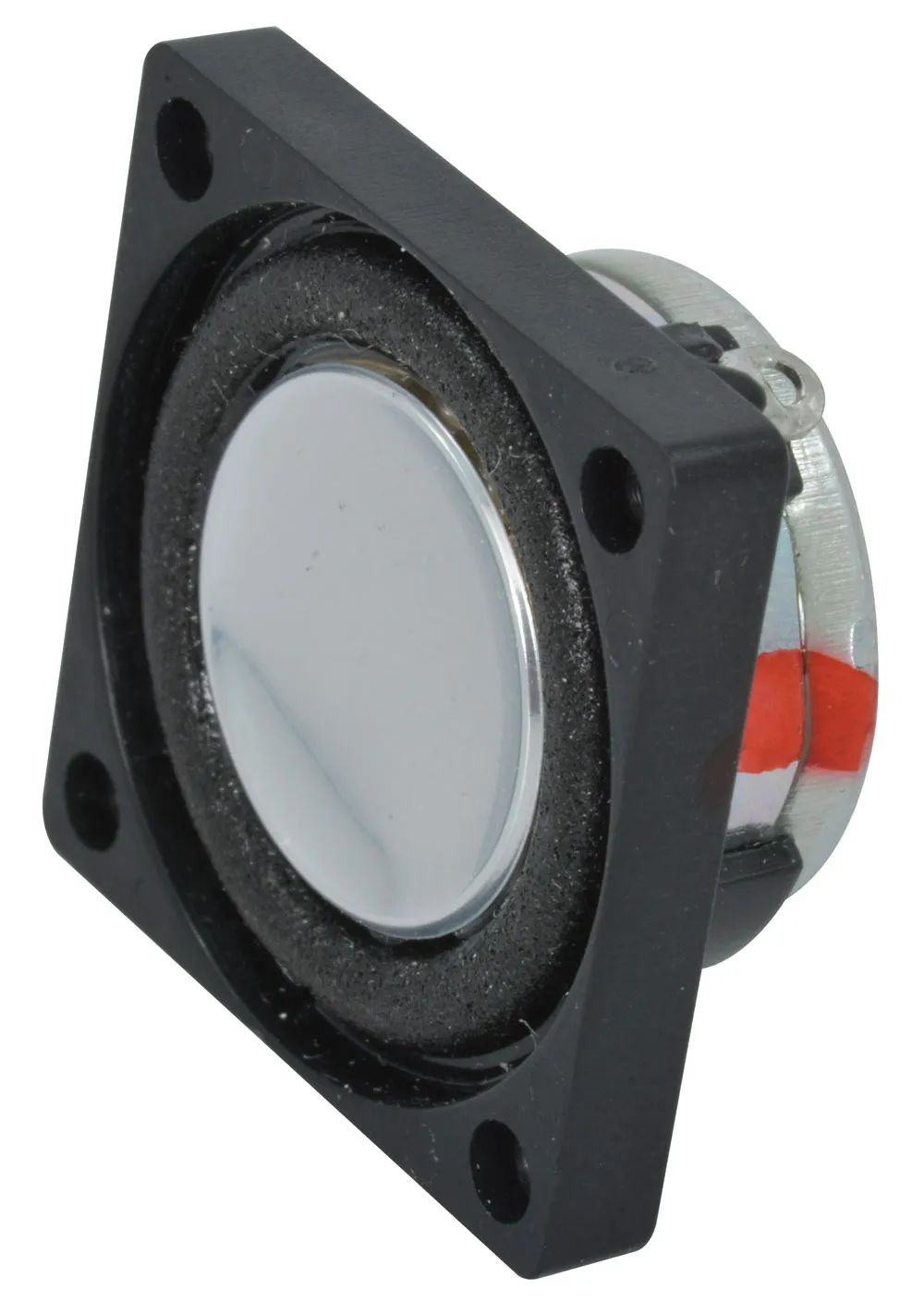

Square Speaker 0.90" 8Ω 4 Watt

Specifications:

  • Manufacturer: ValuePro
  • Manufacturer #: TQ-023CP-8
  • Impedance: 8Ω
  • Frequency Range: 300 Hz to 20 kHz max (response), 10 dB
  • Sound Pressure Level: 76 dB
  • Voice Coil Diameter: 0.52"
  • Input Power: 2 Watt (nominal) / Handling Capacity: 4 Watt
  • Operating Temperature: -25°C to +60°C
  • Dimension: 0.90" H x 0.90" W x 0.40" D
  • Magnet Size: 0.50" x 0.118"

Product Identification

Product Type:Square Ferrite Speaker

Dimensions & Appearance

Depth:0.4 in.
Width:0.9 in.
Length:0.9 in.

Input

Input Power (max) (W):4
Nominal Input Power (W):2

Output

Output:76 dB

Features

Magnet Material:Ferrite
Magnet Size (Diameter x H) (inches):0.5 x 0.12
Impedance:8 Ohm
Termination Method:Solderable Lug
Frequency Range:300 Hz to 20000 Hz
,
