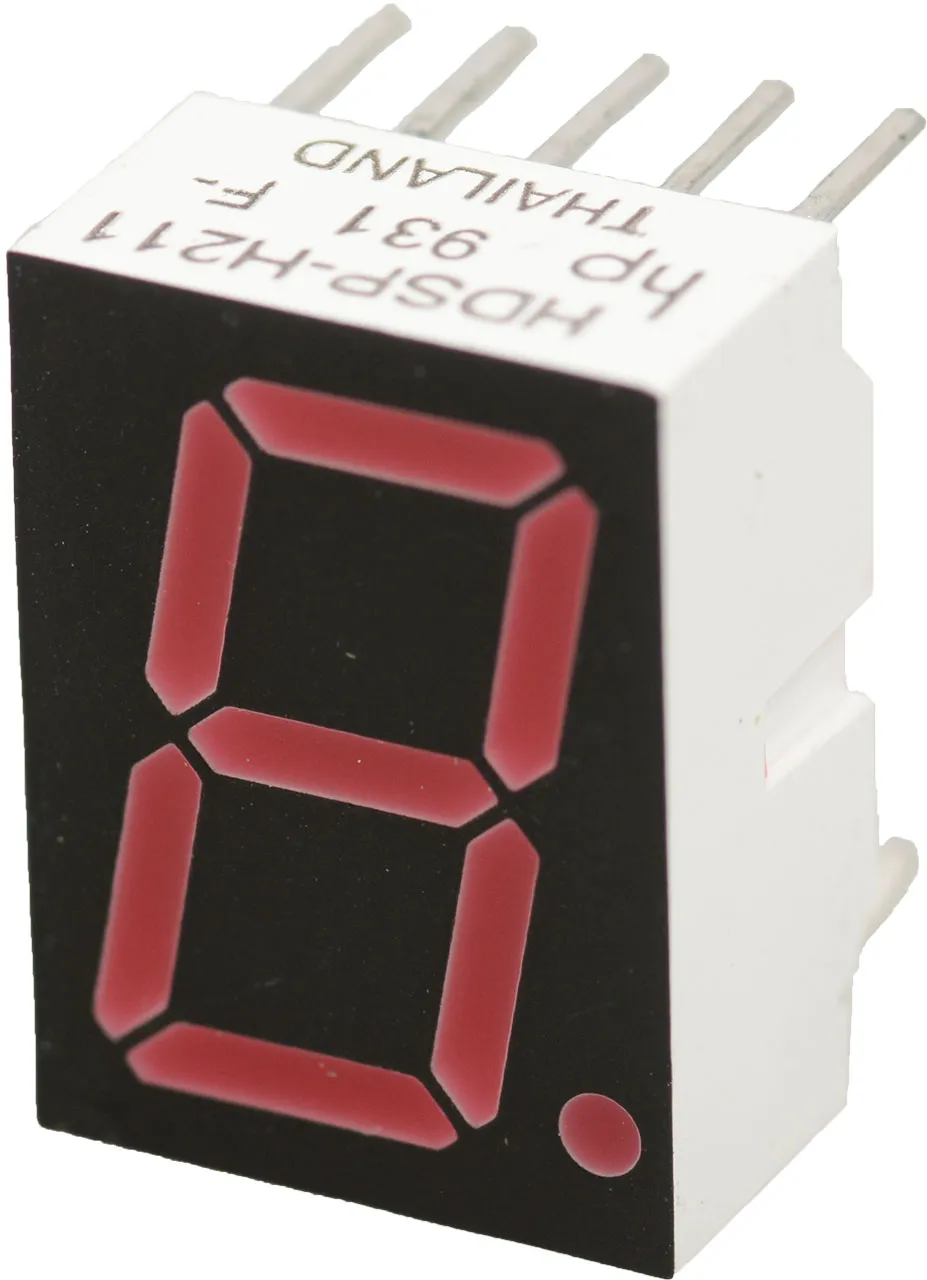

7-Segment LED Display Module Red 1 Character Common Anode 2V 20mA 0.670" H DIP-10

Features

  • Number of Characters: 1
  • Size: 0.670" H x 0.495" W x 0.315" D (17.02 x 12.57 x 8 mm)
  • Digit/Alpha Size: 0.56" (14.22 mm)
  • Display Type: 7-Segment
  • Common Pin: Common Anode
  • Color: Red
  • Voltage - Forward (Vf) (Typ): 2 V
  • Current - Test: 20 mA
  • Millicandela Rating: 2.8 mcd
  • Wavelength - Peak: 635 nm
  • Power Dissipation (Max): 105 mW
  • Package: 10-DIP (0.6", 15.24 mm)

Product Identification

Product Type:Segmented LED Display

Dimensions & Appearance

Color:Black
Mounting:Through Hole

Packaging

Package:10-DIP (0.600", 15.24mm), 10 leads

Features

Number of Digits:1
Pattern Graphics:Segmented
Buss Polarity:Common Anode
LED Display Type:7-Seg Numeric
Decimal Point:RHDP
Digit Size:0.56"
Pins:10
Typical Forward Voltage:2 VDC
Illuminated Color:Red
Dominant Wavelength:635 nm
Luminous Intensity:2.8 mcd
Character Size:0.56"
Maximum Forward Current:20 mA
Maximum Forward Voltage:2.1 V
Peak Wavelength:635 nm
,
