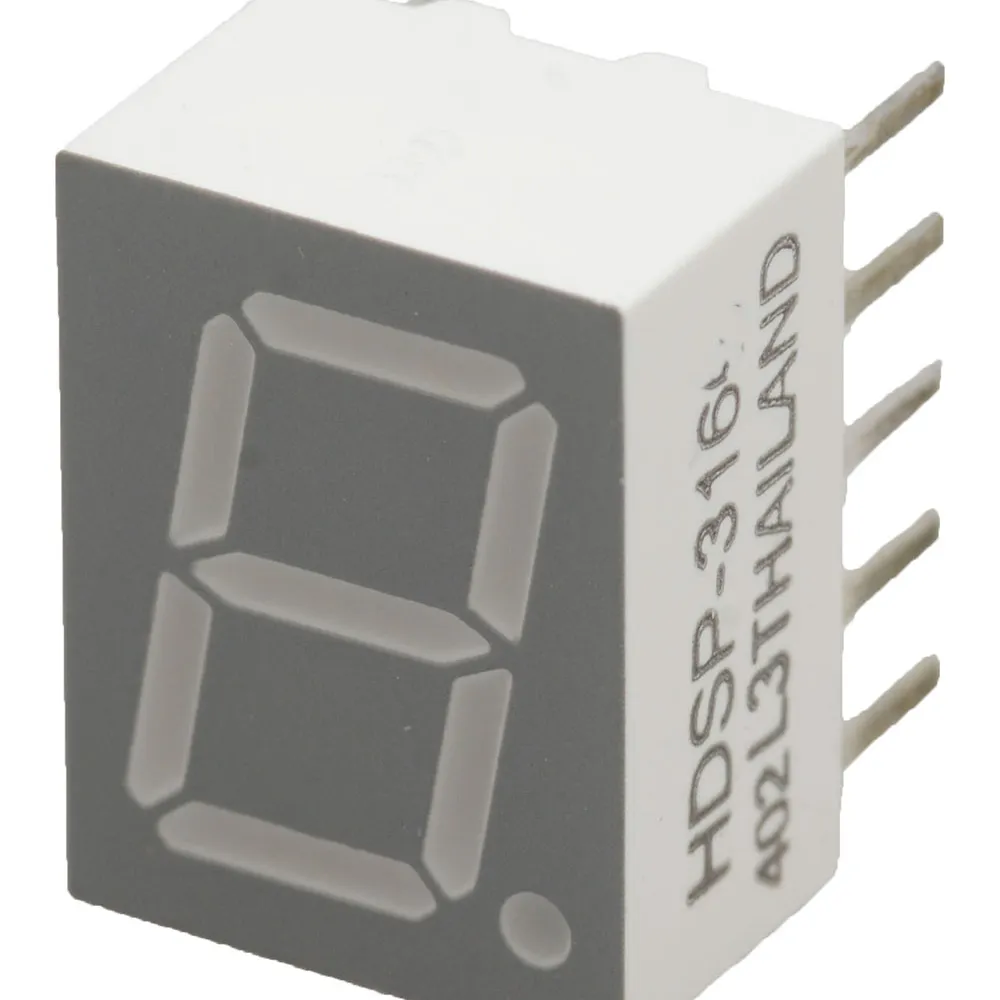

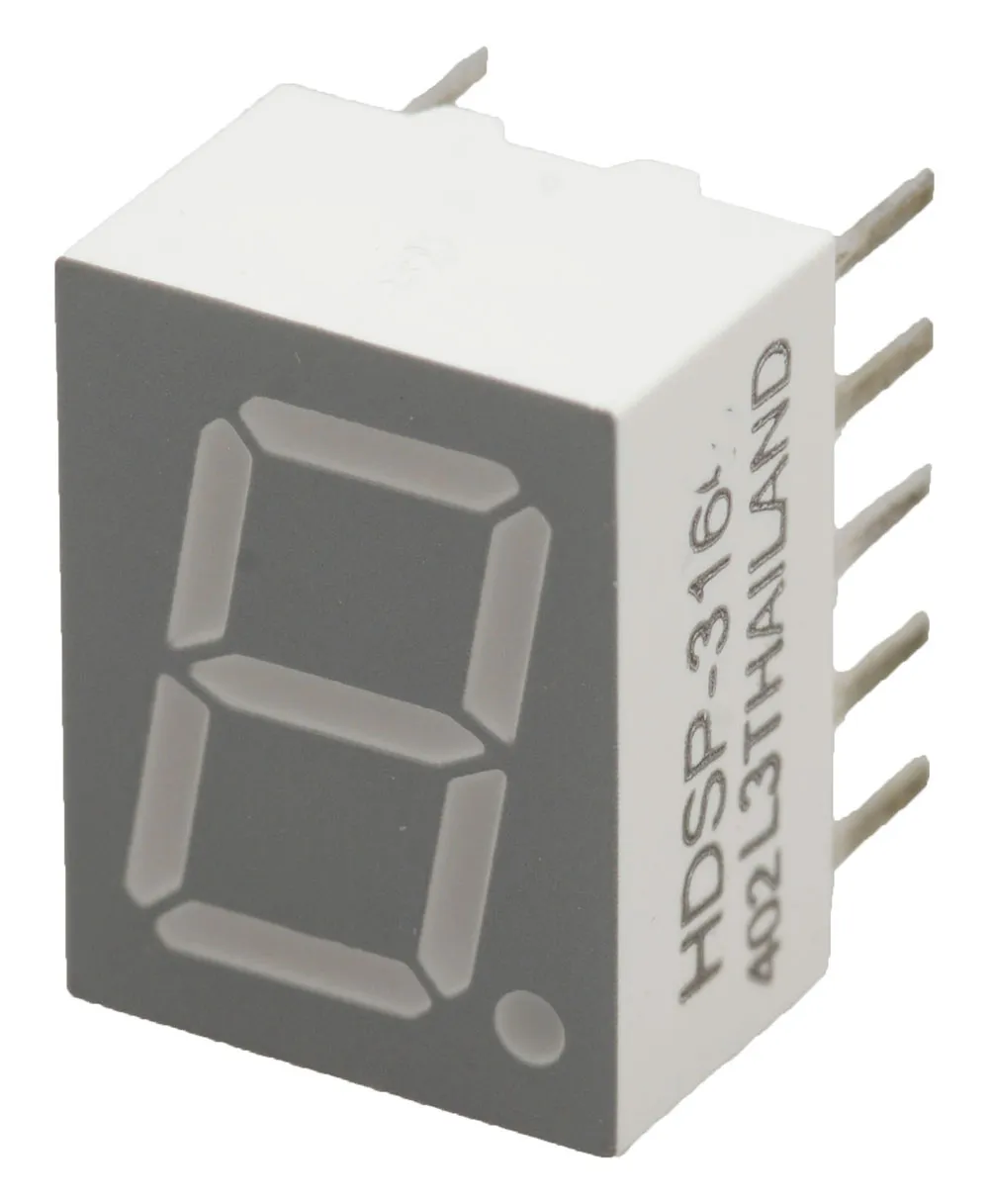

7-Segment Display LED Yellow 1 Character 0.40"H Common Cathode 2V 10mA DIP-10 (0.3")

Specifications

  • Display Type: 7-Segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.40" (10.16 mm)
  • Common Pin: Common Cathode
  • Color: Yellow
  • Voltage - Forward (Vf) (Typ): 2 V
  • Current - Test: 10 mA
  • Brightness Rating: 1.8 mcd
  • Wavelength - Peak: 583 nm
  • Power Dissipation (Max): 105 mW
  • Size: 0.504" H x 0.382" W x 0.276" D (12.8 mm x 9.7 mm x 7 mm)
  • Package: 10-DIP (0.300", 7.62 mm)

Dimensions & Appearance

Color:Gray

Packaging

Package:10-DIP (0.3", 7.62mm), 10 leads

Features

Number of Digits:1
Buss Polarity:Common Cathode
LED Display Type:7-Seg Numeric
Decimal Point:RHDP
Pins:10
Typical Forward Voltage:2 VDC
Luminous Intensity:1.8 mcd
Dominant Wavelength:583 nm
Character Size:0.40"
Illuminated Color:Yellow
Maximum Forward Current:20 mA
Maximum Forward Voltage:2.0 V
,
