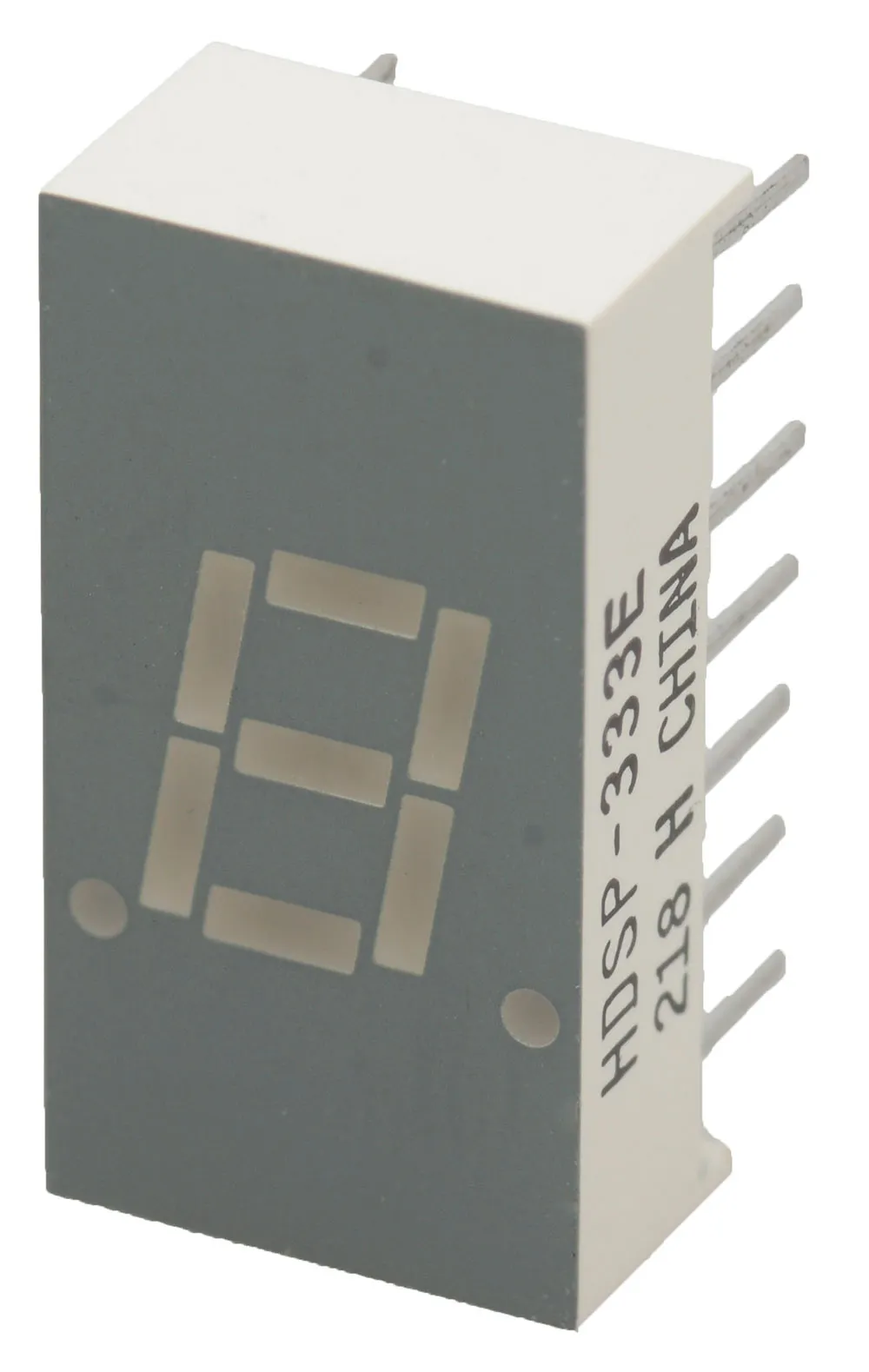

7-Segment Display LED Red 1 Character 0.30"H Common Cathode 2.05V 20mA DIP-14 (0.3")

Specifications

  • Display Type: 7-Segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.30" (7.62 mm)
  • Decimal Point: Right Hand
  • Common Pin: Common Cathode
  • Color: Red
  • Voltage - Forward (Vf) (Typ): 2.05 V
  • Current - Test: 20 mA
  • Brightness Rating: 1.8 mcd
  • Wavelength - Peak: 635 nm
  • Power Dissipation (Max): 65 mW
  • Size: 0.748" H x 0.398" W x 0.240" D (19 mm x 10.1 mm x 6.1 mm)
  • Package: 14-DIP (0.300", 7.62 mm), 10 pins

Dimensions & Appearance

Color:Gray

Packaging

Package:14-DIP (0.3", 7.62mm), 10 leads

Features

Number of Digits:1
Buss Polarity:Common Cathode
LED Display Type:7-Seg Numeric
Decimal Point:RHDP
Pins:10
Character Size:0.30"
Luminous Intensity:1.8 mcd
Typical Forward Voltage:2.05 VDC
Illuminated Color:Red
Dominant Wavelength:635 nm
Maximum Forward Current:20 mA
Maximum Forward Voltage:2.05 V
,
