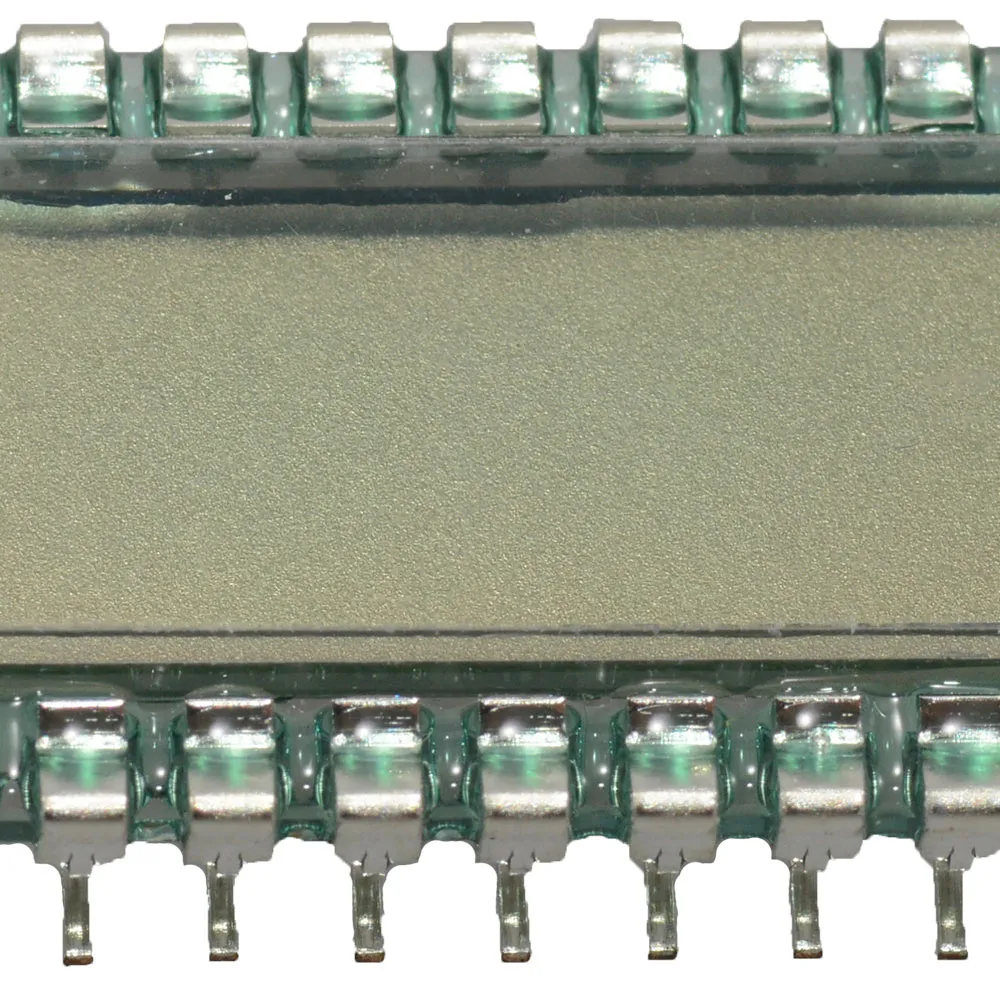

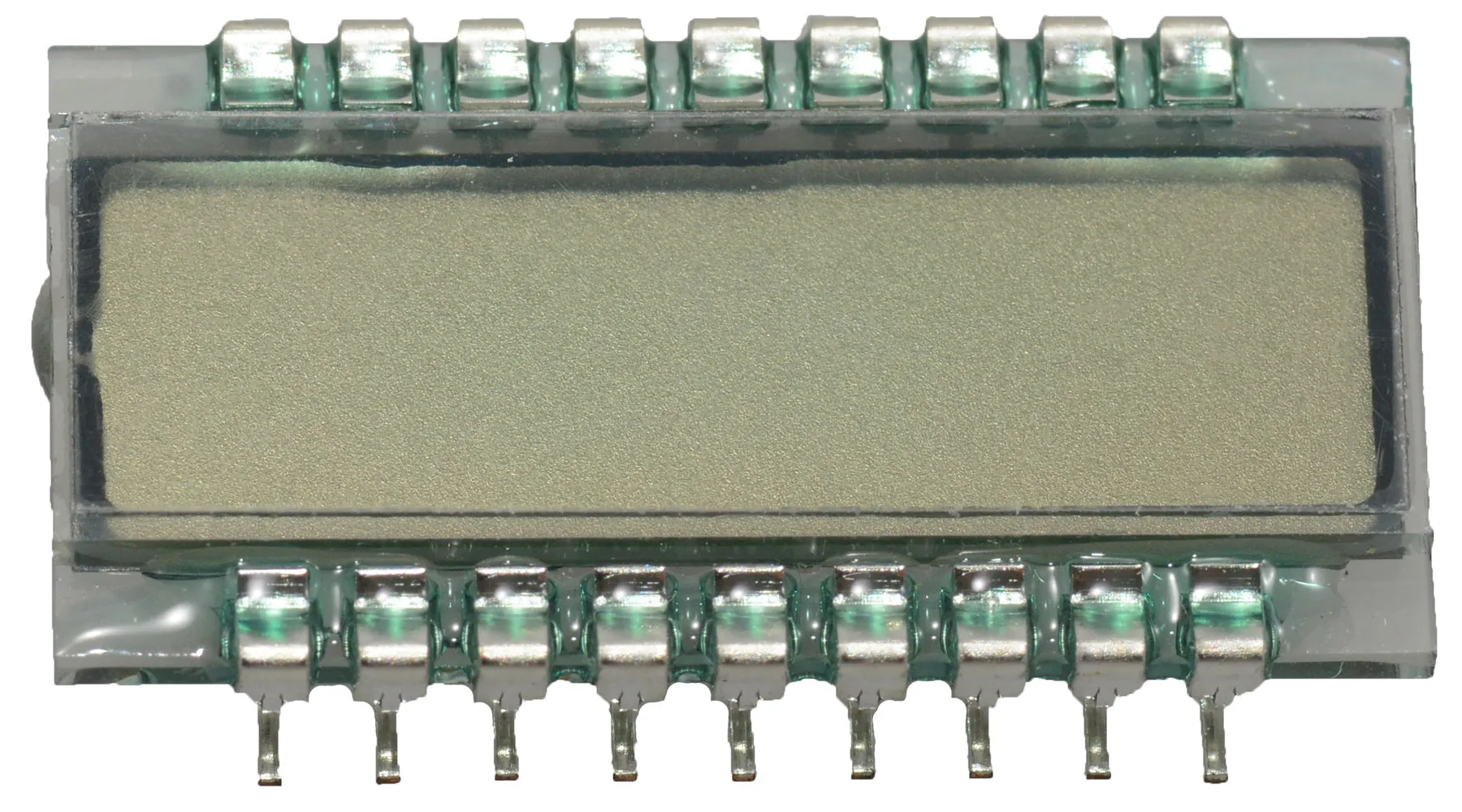

7-Digit LCD Positive Reflective with 2 Decimal Points SMD

Specifications

  • 7 digits
  • 2 decimal points (lower one between digit 6 and 7; upper one between digit 1 and 2)
  • Viewing Angle: 6:00 o'clock
  • Viewing Mode: Positive, reflective
  • Display Type: TN
  • Connector: Zebra
  • SMD
  • Driving Voltage: 2.7 V
  • Multiplex Level: 1/4 duty, 1/3 bias
  • Overall Size: 2.2"W x 1.21"H x 0.11"D (55.8 x 30.8 x 2.8 mm)

Input

Maximum Input Voltage:2.7 V

Features

Backlight (Y/N):N
Module Size (W x H x T):2.19 in. x 1.21 in. x 0.11 in.
Character / Background Color: None, Black
Supply Current:1 mA
Display Size (WxH) Inches:1.18 x 0.115
Characters x Lines:7x1
Character Format:1x8
Display Mode:TN Reflective
Interface:Parallel
,
