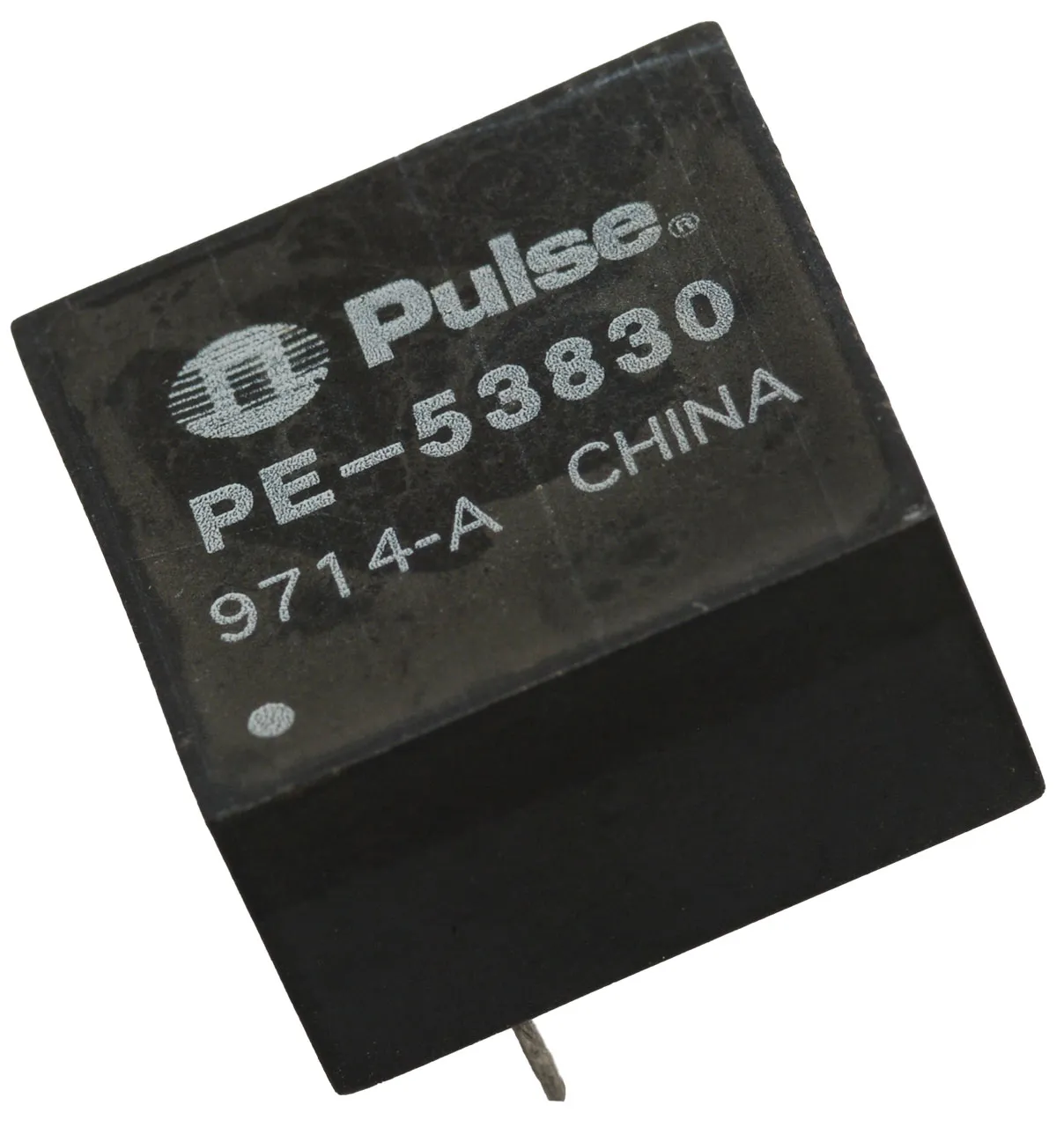

77 uH Shielded Toroidal Inductor 1.54 A 200mOhm Radial Vertical Corner Terminals

Specifications

  • Type: Toroidal
  • Material - Core: n/a
  • Inductance: 77 µH
  • Tolerance: ±20%
  • Current Rating (Amps): 1.54 A
  • Current - Saturation (Isat): n/a
  • Shielding: Shielded
  • DC Resistance (DCR): 200 mOhm
  • Operating Temperature: -40deg;C to 130deg;C
  • Mounting Type: Through Hole
  • Package: Radial, Vertical - Corner Terminals
  • Size: 0.635" L x 0.635" W (16.13 mm x 16.13 mm)
  • Height - Seated (Max): 0.365" (9.27 mm)

Product Identification

Family:N/A

Features

Lead Style:Radial
Core Material:N/A
Technology:N/A
Tolerance:20%
Test Frequency:N/A
Minimum Quality Factor:N/A
Current Rating:1.54 A
Inductance:77 uH
Maximum Self Resonant Frequency:N/A
Maximum DC Resistance:200 mOhm
,
