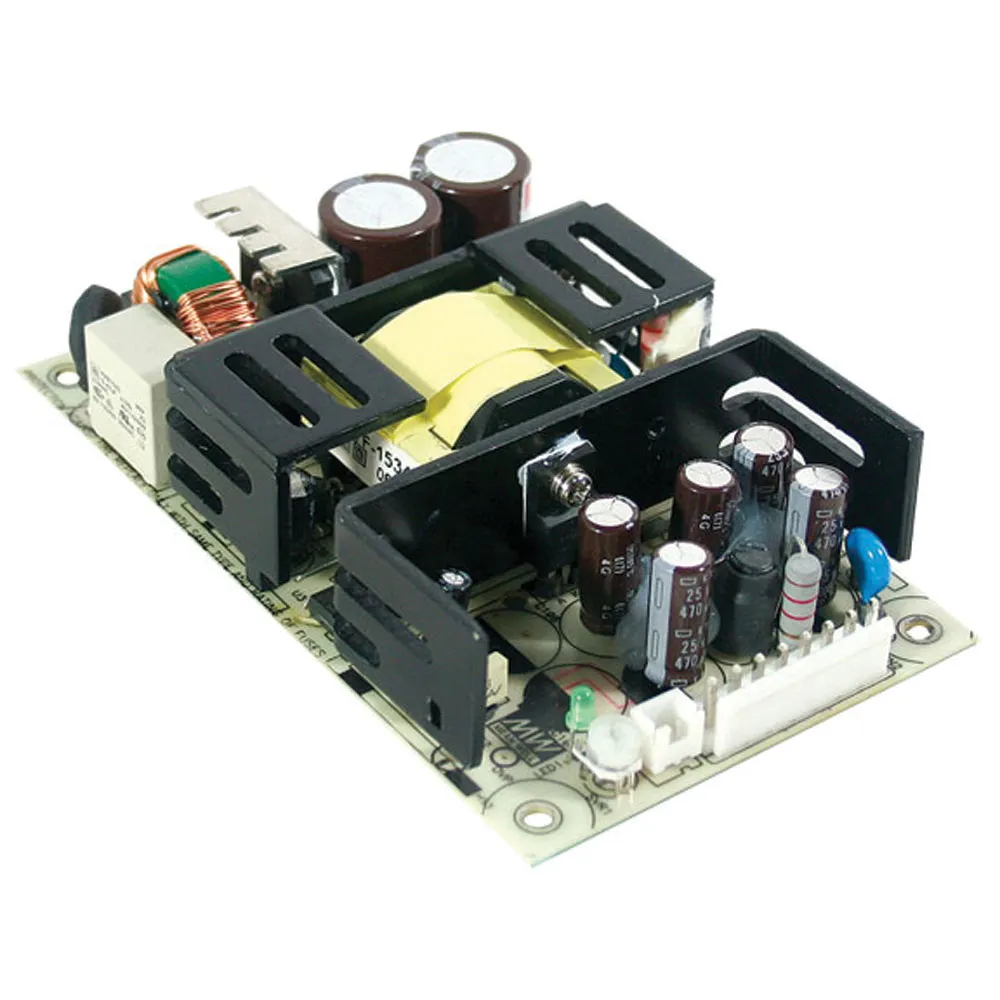

75W Single Output Regulated Switching Medical Power Supply


Output: 36 Volts @ 2.1 Amps


Features:

  • Input voltage range: 90-264VAC @ 47-63Hz, or 127-370VDC
  • Efficiency: 86%
  • Protections: Short circuit / Overload / Over voltage
  • Free air convection for rated power and 23.5CFM forced airconvection for peak load
  • UL60601-1 / IEC60601-1 / EN60601-1 medical safety approved
  • Fixed switching frequency at 65kHz
  • Low leakage current <200µA
  • Size: 5.0"L x 3.0"W x 1.2"H
  • Weight: 0.57 lbs.

    • Product Identification

    Type:Auto Switching SMPS
    Product Type:AC to DC Power Supply SMPS
    Manufacturer Series:RPS-75

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Medical Open Frame
    Height:1.2 in.
    Width:3 in.
    Length:5 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.5 A

    Output

    Number of Outputs:1
    Output Connector Diameters:N/A
    Output Connector Type:JST B8P-VH or equiv.
    Output Voltage:36 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:2.10 A

    Features

    Minimum Isolation Voltage:4000V
    Efficiency:86%
    Power Rating:100.8 W
    ,
