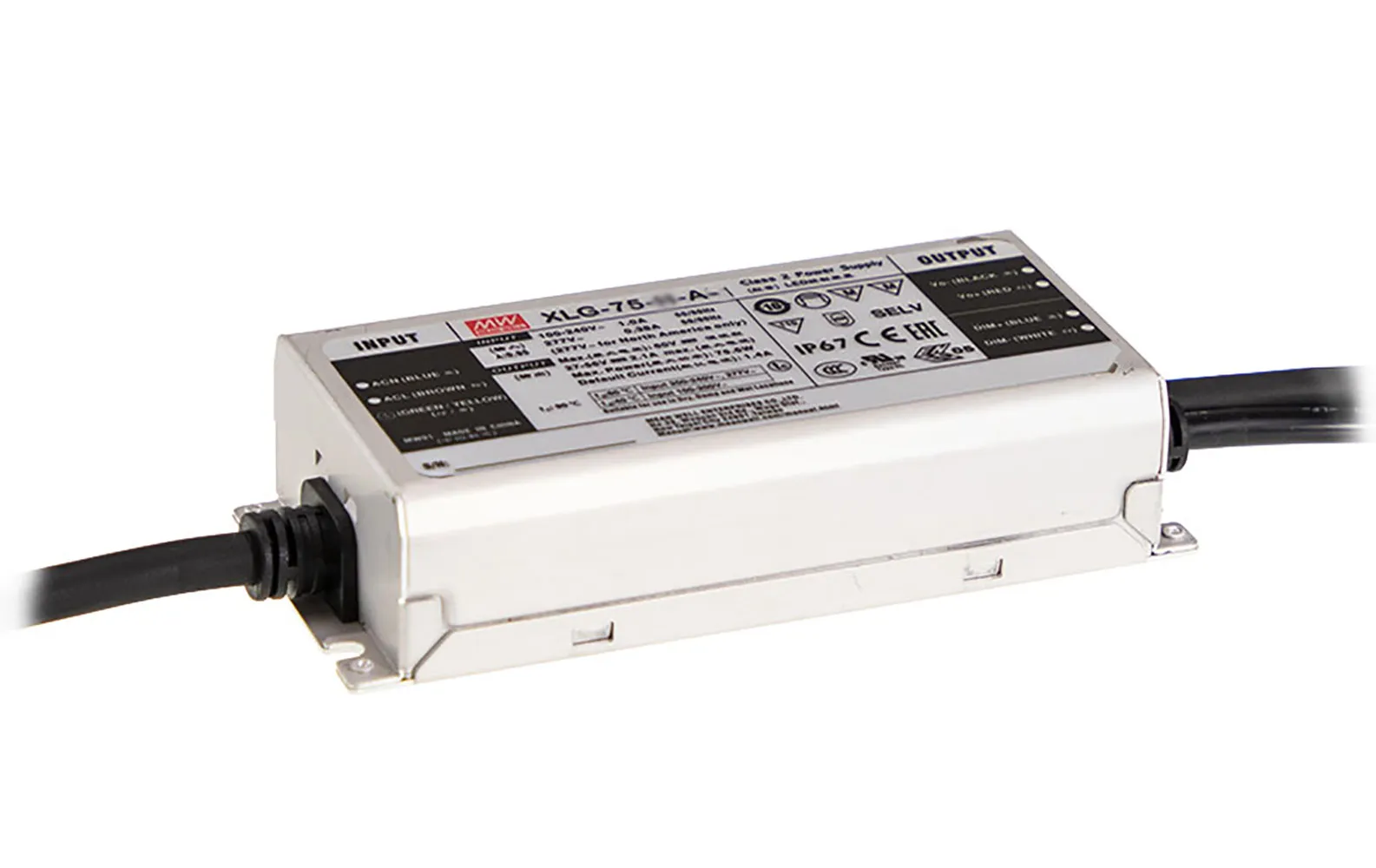

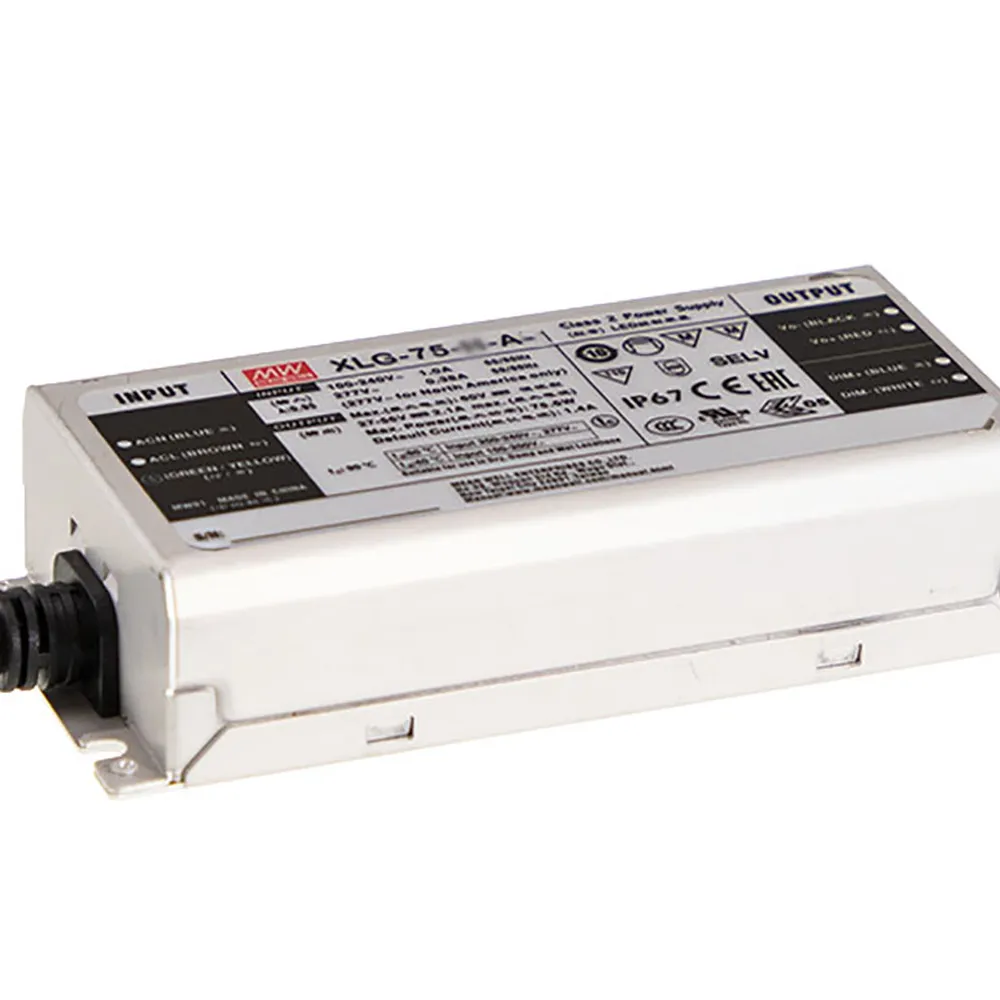

75W 24V 3.1A Constant Power Mode LED Driver with Tunable Output Current
24 Volts DC @ 3.1 Amps (Constant current region: 16.8V to 24V; Current adjustment range: 1.55A to 3.1A)Find out more about MEAN WELL power solutions for outdoor lighting.
Features
- Wide input voltage range: 100 to 305 VAC (Class I)
- Fill power output at 70 to 100% constant power mode operation
- Metal case with IP67, suitable for outdoor applications
- LVLE and Class 2 power unit
- Surge protection with 6 KV/4 KV
- Protection functions: Over voltage, over current, over temperature
- Life time: >50,000 hours
- 5 year warranty
Specifications
- DC Voltage: 24 V
- Rated current: 3.1 A
- Rated power: 74.4 W
- Current adjustment range: 1.55 A to 3.1 A
- Dimensions: 5.51"L x 2.48"W x 1.26"H
Applications
- Skyscraper and commercial building lighting
- Street lighting
- Floodlights
- Stage lighting
- Fishing and marine lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in Class I, Division 2
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:XLG-75
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.26 in.
Width:2.48 in.
Length:5.51 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:1 A
Output
Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Current (Channel 1):1.55 A to 3.10 A
Output Connector Type:Stripped and Tinned
Output Voltage:24 VDC
Output Range:N/A
Output Current:3.10 A
Features
PFC Function:Yes
Minimum Isolation Voltage:4200V
IP Rating:IP67
Efficiency:90%
Power Rating:74.4 W
