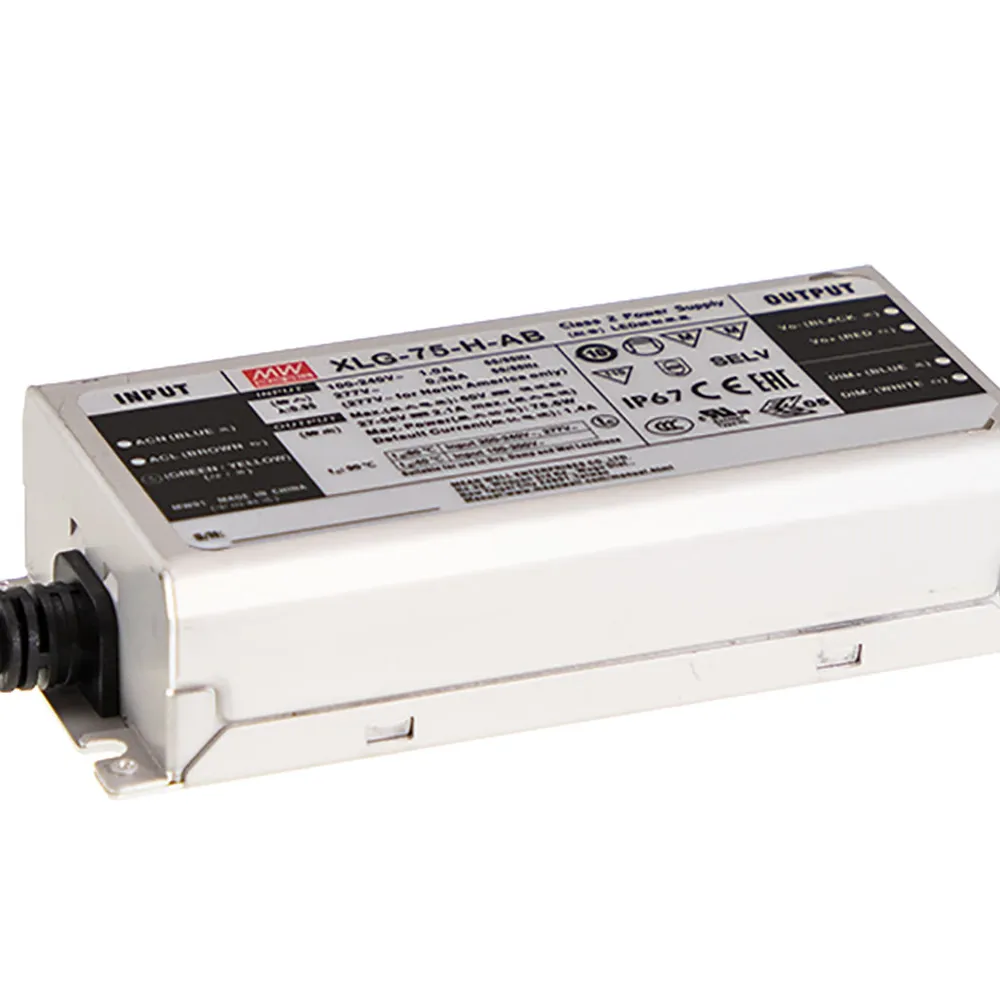

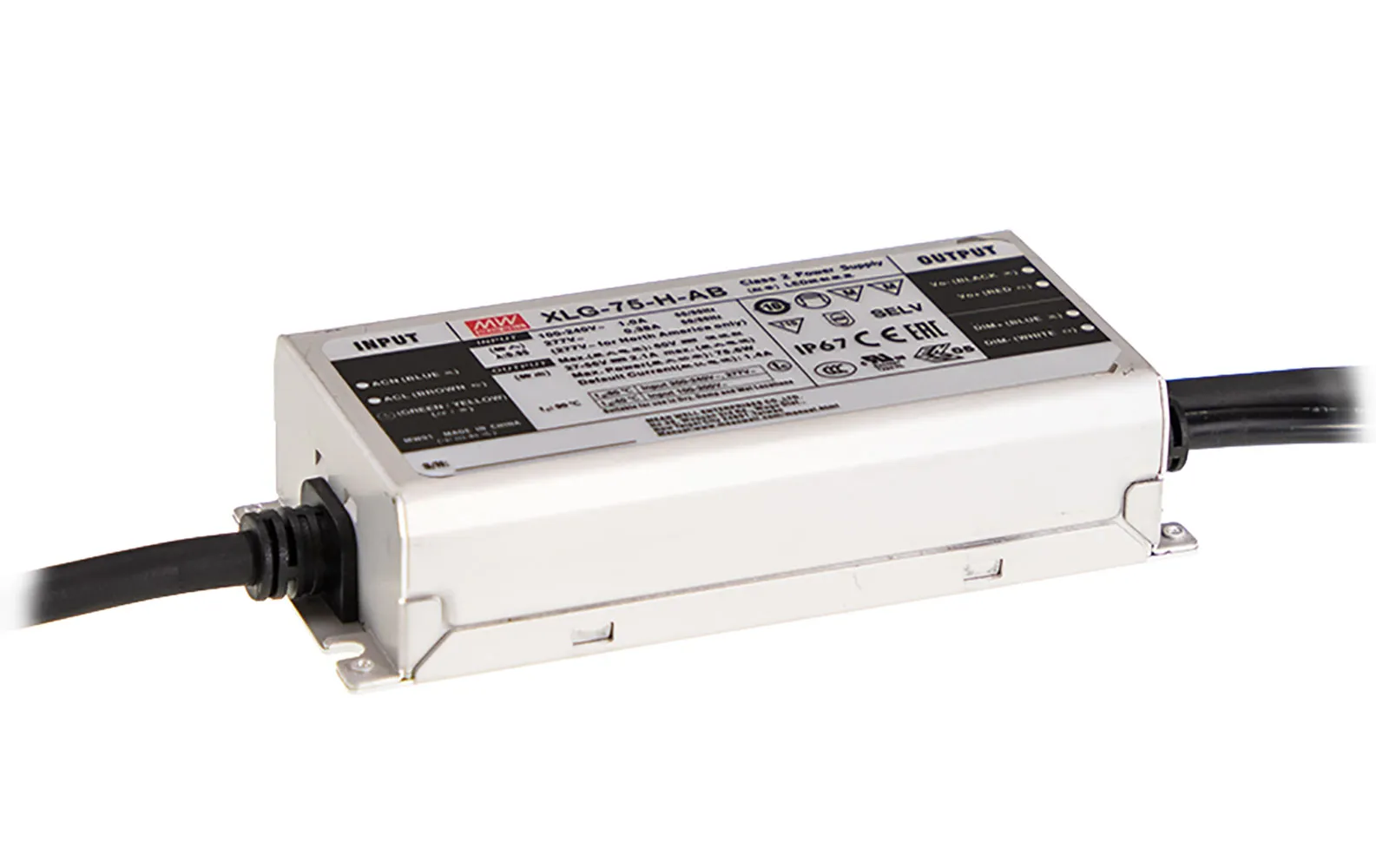

75W 1400mA 27V to 56V Constant Power Mode LED Driver with Tunable Output Current and Dimming

Rated Current: 1400 mA (Constant current region: 27V to 56V; Current adjustment range: 650mA to 2100mA)

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • Wide input voltage range: 100 to 305 VAC (Class I)
  • Fill power output at 70 to 100% constant power mode operation
  • Metal case with IP67, suitable for outdoor applications
  • LVLE and Class 2 power unit
  • Surge protection with 6 KV/4 KV
  • 3 in 1 dimming function (Dim to off and Isolation design) (0-10VDC, 10V PWM signal and resistance)
  • Protection functions: Over voltage, over current, over temperature
  • Life time: >50,000 hours
  • 5 year warranty

Specifications

  • Rated current: 1.4 A
  • Rated power: 75 W
  • Constant current region: 27 V to 56 V
  • Full power current range: 1.3 A to 2.1 A
  • Dimensions: 5.51"L x 2.48"W x 1.26"H

Applications

  • Skyscraper and commercial building lighting
  • Street lighting
  • Floodlights
  • Stage lighting
  • Fishing and marine lighting
  • Horticulture lighting
  • Bay lighting
  • DMX power supply
  • Type HL for use in Class I, Division 2

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-75

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.26 in.
Width:2.48 in.
Length:5.51 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Current (Channel 1):0.65 A to 2.10 A
Output Voltage (Channel 1):27 VDC to 56 VDC
Output Connector Type:Stripped and Tinned
Output Range:27 VDC to 56 VDC
Output Voltage:See Output Range
Output Current:1.40 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4200V
IP Rating:IP67
Efficiency:90%
Power Rating:75 W
,
