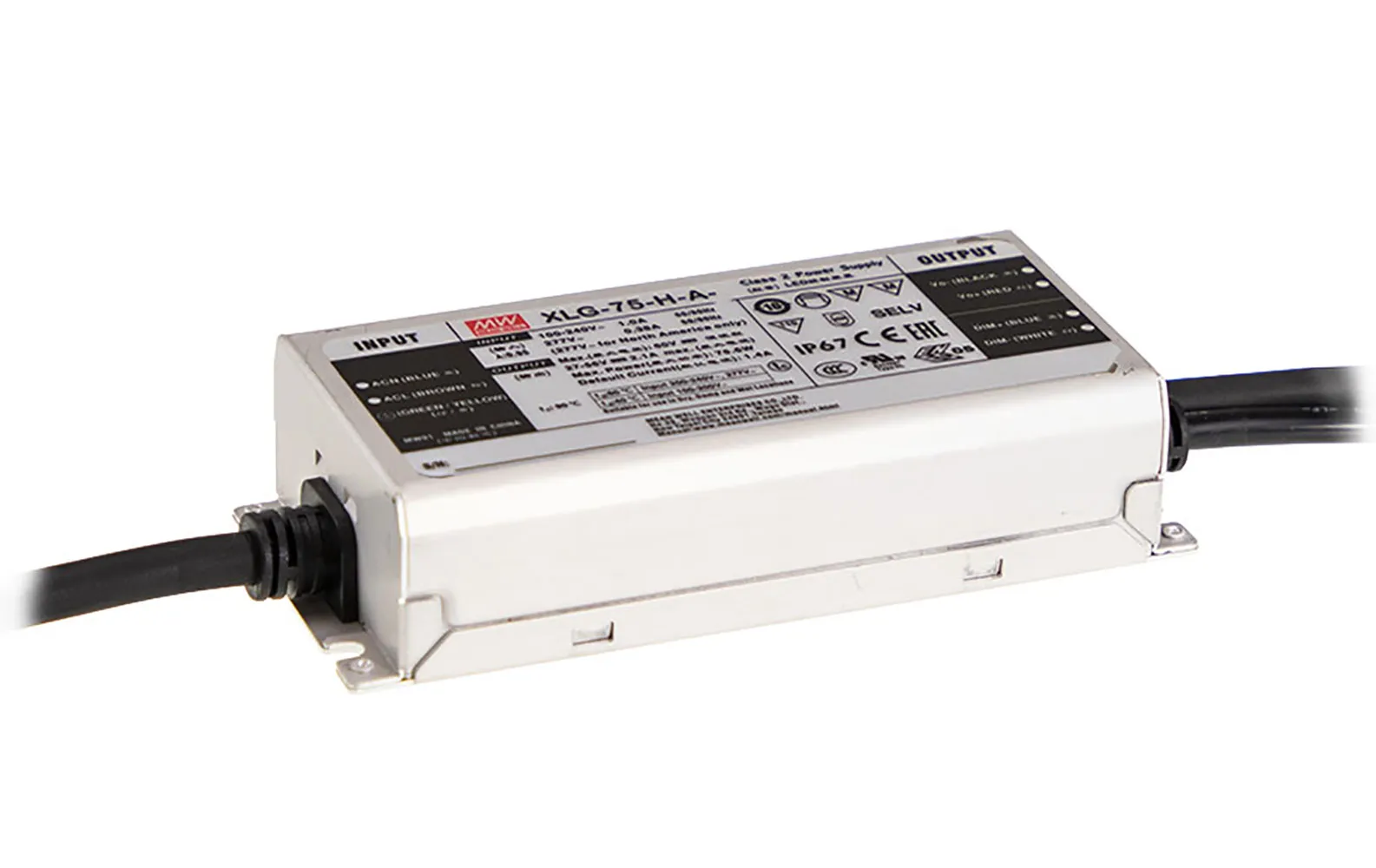

75W 1400mA 27V to 56V Constant Power Mode LED Driver with Tunable Output Current
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:XLG-75
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.26 in.
Width:2.48 in.
Length:5.51 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:1 A
Output
Number of Outputs:1
Output Current (Channel 1):0.65 A to 2.10 A
Output Voltage (Channel 1):27 VDC to 56 VDC
Output Connector Type:Stripped and Tinned
Output Range:27 VDC to 56 VDC
Output Voltage:See Output Range
Output Current:1.40 A
Features
PFC Function:Yes
Minimum Isolation Voltage:4200V
IP Rating:IP67
Efficiency:90%
Power Rating:75 W
