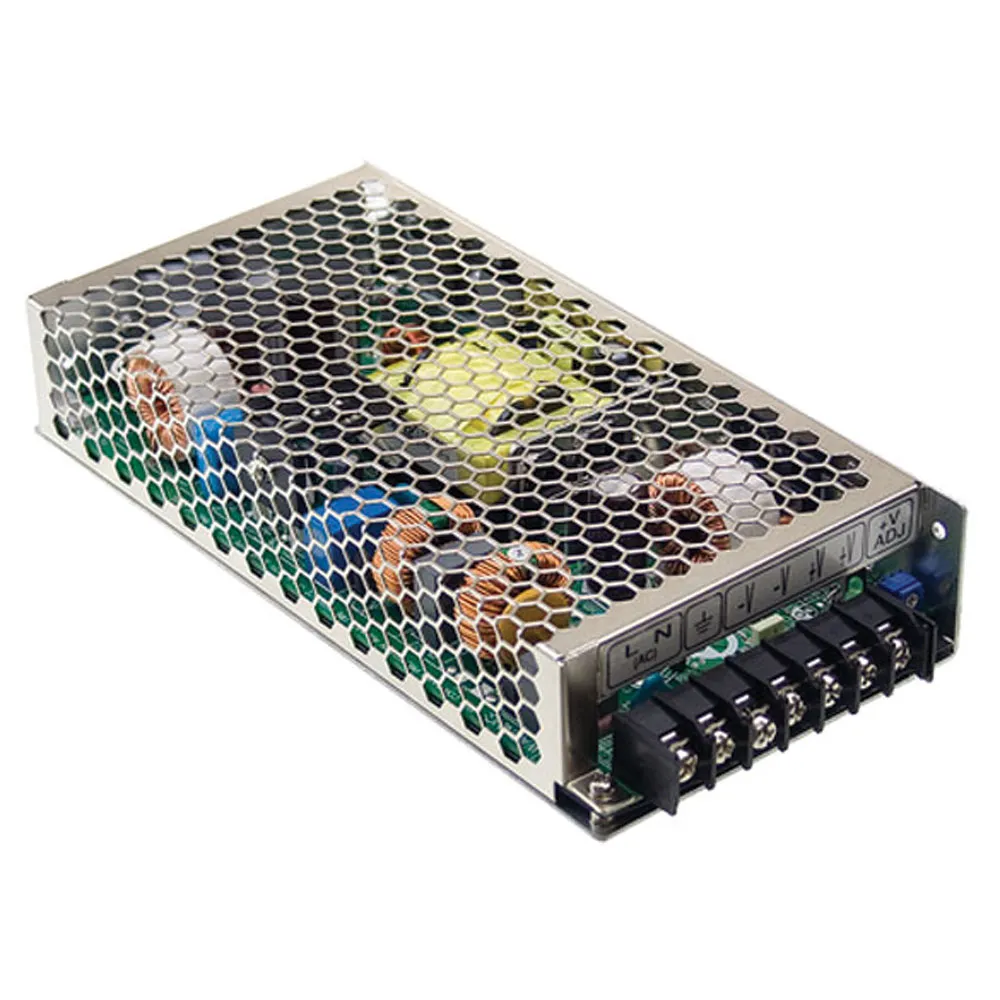

200W Single Output Power Supply with PFC


Output: 7.5 Volts @ 26.7 Amps


Features:

  • Input voltage range: 85-264 @ 47-63Hz, or 120-370VDC
  • Efficiency: 86%
  • Built-in active PFC function, PF>0.95
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Built-in constant current limiting circuit
  • Built-in DC OK signal
  • Stand by 5V @ 0.3A
  • 1U low profile 38mm
  • Cooling by free air convection
  • Built-in remote sense function
  • Size: 7.8"L x 3.9"W x 1.5"H
  • Weight: 1.7 lbs.

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:HRPG-200

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.5 in.
    Width:3.9 in.
    Length:7.8 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:2.2 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):7.5 VDC
    Output Voltage:7.5 VDC
    Output Connector Type:Screw Terminal Block
    Output Current (Channel 1):26.7 A
    Output Current:26.70 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3000V
    Efficiency:86%
    Power Rating:200.3 W
    ,
