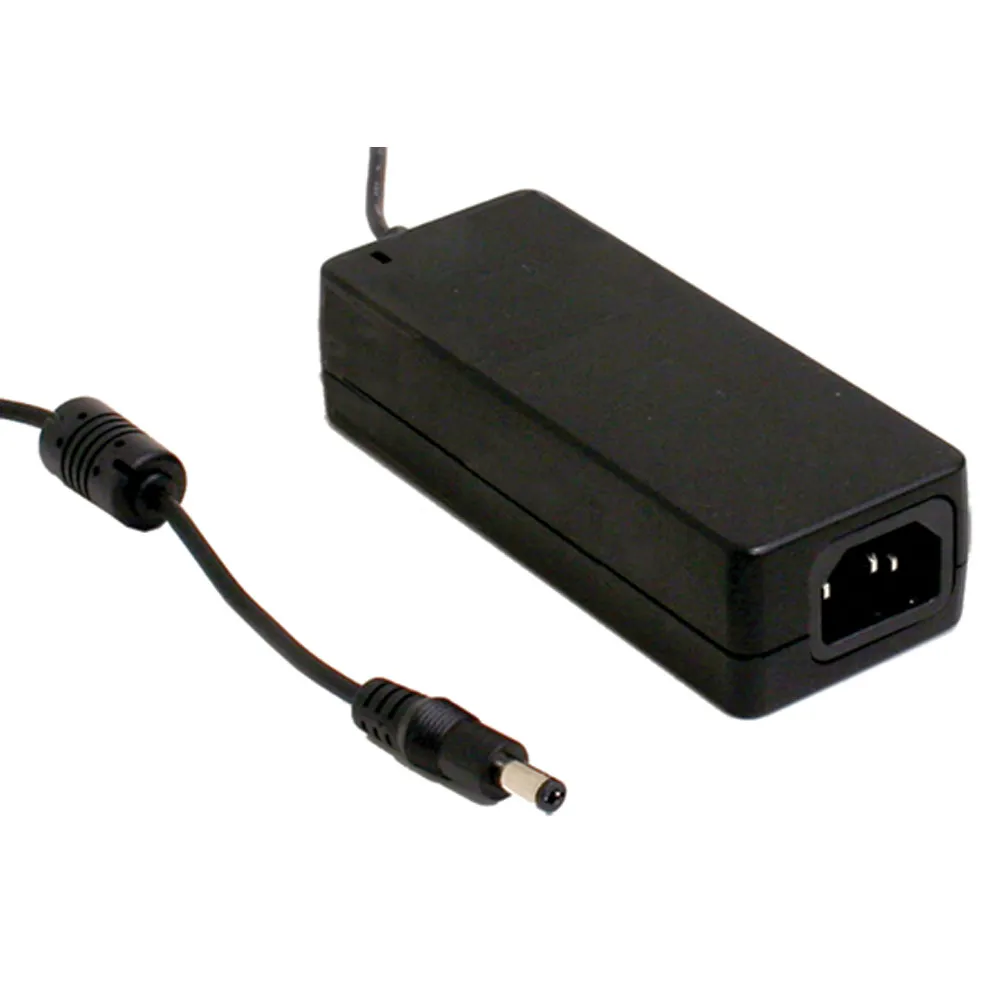

60 Watt AC-DC Single Output Medical Power Supply

7.5 Volts @ 6 Amps

Features

  • Universal AC input / Full range
  • 3 pole AC inlet IEC320-C14
  • 3-conductor AC power cord not included (recommend p/n: 2271575)
  • High efficiency up to 91%
  • Low leakage current <100uA
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Medical safety approved (MOPP level)
  • Class I power (with earth pin)
  • LED indicator for power on
  • No load power consumption<0.1W
  • ErP step2 compliant (level V)
  • Meet EISA 2007 (Energy Independence and Security Act)
  • 3 years warranty

Product Identification

Type:Switching
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:GSM60

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, FCC, TUV, UKCA, UL, UL, CUL, TUV, CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.24 in.
Width:1.97 in.
Length:4.92 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Packaging

Packaging:Carton

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.40 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:7.5 VDC
Output Connector Type:Cylindrical Female
Additional Output Voltages (VDC):N/A
Output Current:6 A

Features

Polarity:Center Positive
Product Note:Level V
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575, NOT INCLUDED, RECOMMEND 2271575
Efficiency:86%
Power Rating:60 W
,
