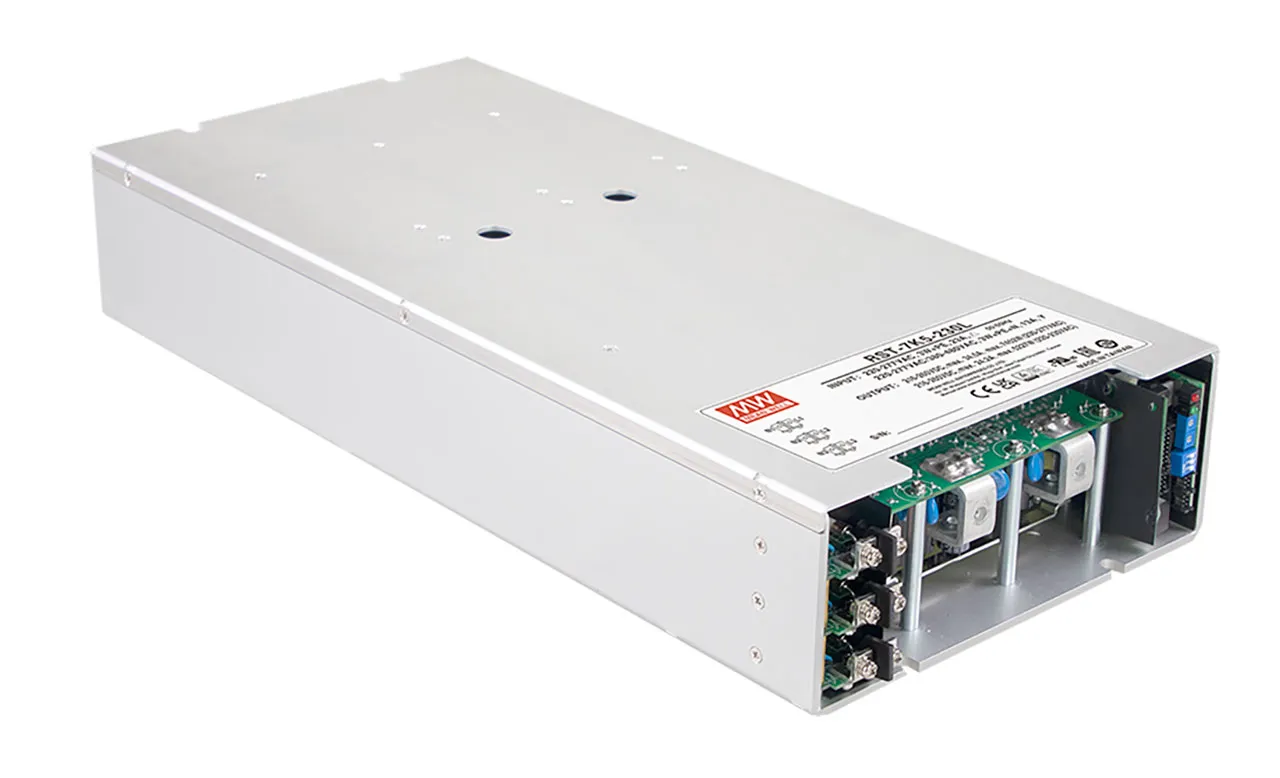

7500W High Voltage AC to DC Switching Enclosed Power Supply 115 VDC 65 Amps with PFC Function

115 Volts @ 65 Amps

High Voltage DC (HVDC) Output Power Supply Solutions.

Specifications

  • Output Power (W): 7475
  • Size (L x W x H) inches: 18.1 X 8.3 X 3.3
  • Ripple & Noise (Vp-p): 1
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 0.5%
  • Efficiency: 94%
  • Agency Approvals: UL/CUL/TUV/CE/CB/EAC/UKCA/EN
  • Built-in active Power Factor Correction (PFC)
  • Protections: short circuit, over voltage, over, over temperature, overload, fan fail
  • Output voltage and constant current level programmable
  • Current sharing up to 4 units
  • Forced air cooling by built with speed control function
  • Alarm signal output (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
  • Built in remote ON-OFF control
  • 5 year warranty

Applications

  • Energy & power systems for automation
  • UV or laser diode applications
  • Test and measurement instruments
  • Laser related machine
  • Burn-in facility
  • RF applications
  • EV charging station
  • Constant current source

Overview

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:RST-7K5

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:3.29 in.
Length:18.1 in.
Width:8.3 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:196 VAC to 305 VAC
Maximum Input Current:22.5 A

Output

Number of Outputs:1
Output Connector Type:Lug Terminal Female
Output Voltage (Channel 1):115 VDC
Output Voltage:115 VDC
Output Current (Channel 1):65 A
Output Current:65 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4300V
Efficiency:94%
Power Rating:7475 W
,
