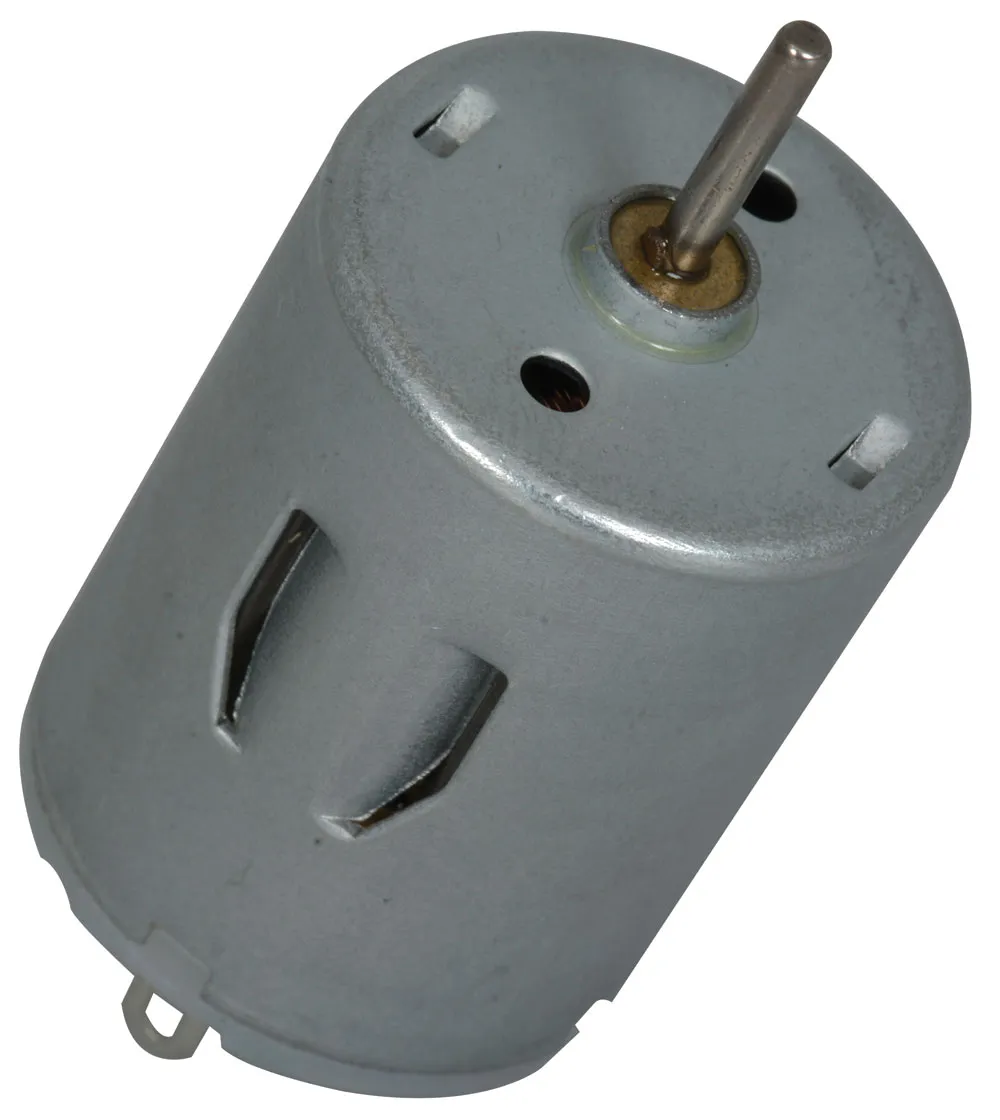

7.2VDC Motor

Features:
  • Nominal voltage: 7.2VDC
  • Voltage range: 3 - 14VDC
  • Current @ maximum efficiency: 1.18A
  • Speed @ maximum efficiency: 14,260 RPM
  • Torque @ maximum efficiency: 33.3 g-cm
  • Efficiency: 57.0%
  • Terminal type: 0.11" solder tabs
  • Shaft diameter: 0.08"
  • Shaft length: 0.43"
  • Size: 0.95" diameter x 1.20" depth

    • Compliance

    RoHS Status:ROHS Compliant

    Dimensions & Appearance

    Shaft Diameter:0.08 in.
    Dimensions:.95"Dia. x 1.2
    Body Length:1.2 in.
    Body Diameter:0.95 in.
    Shaft Length:0.43 in.

    Input

    Input Voltage Range:3 VDC to 14 VDC

    Features

    Current @ Max. Efficiency (A):1.18
    Speed @ Max. Efficiency (RPM):14260
    Terminal Type:0.11"/Solderable
    Torque @ Max. Efficiency (g-cm):33.3
    Efficiency:57%
    Voltage Rating:7.2 VDC
    ,
