7200W 55 VDC 150A 3-Phase 3-Wire High-Efficiency Digital Power Supply

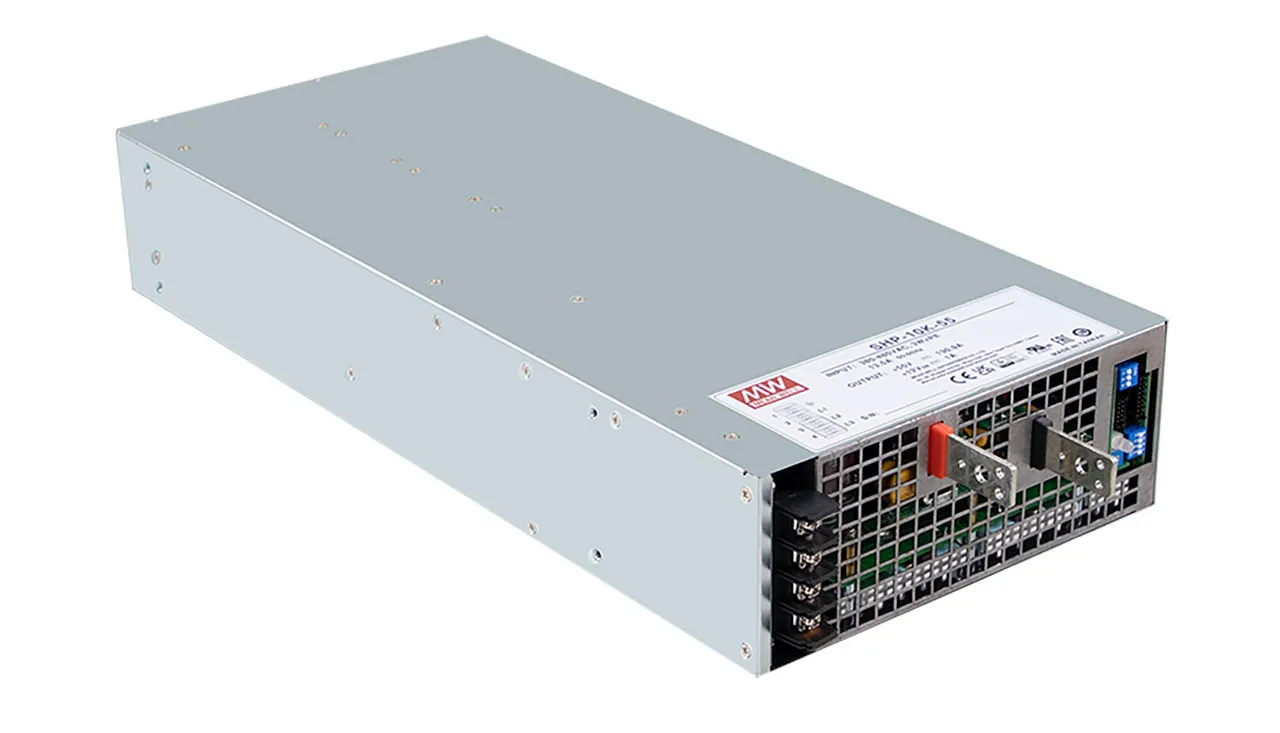

The SHP-10K-HV is a 7.2KW 3 phase 3-wire input AC/DC power supply. This series operates for the wide range three phase AC input (3 phase 3 wire / 340 to 530 VAC) neutral is not needed and offers the higher voltage outputs most in demand by various industries. This model uses forced air cooling, but a water cooled model is also available and can work at ambient temperatures up to 70°C. Moreover, SHP-10K-HV provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and communication protocols that will not only satisfy market demand, but also enhance automation purposes.

Features

• 3-phase 3-wire without neutral / 340 to 530 VAC wide input range
• High efficiency up to 94.5%
• Forced air cooling
• Built-in CANBus protocol
• Output voltage and constant current level programmable
• Active current sharing up to 4 units (40 KW)
• Built-in remote ON-OFF control, auxiliary power, alarm signal
• Protections: Short circuit, overload, over voltage, over temperature, fan fail
• 5-year warranty

Specifications

• DC Voltage: 55 VDC
• Current (factory default): 131 A
• Current Range: 0 to 150 A
• Rated Power: 7200 W
• Full Power Voltage Range: 48 to 57.6 VDC
• Input Voltage Range: 3-phase 3-wire / 340 VAC to 530 VAC @ 47-63 Hz

Applications

• Energy & power system for automation
• UV or laser diode application
• Electrolysis system
• Laser processing machine
• Burn-in facility
• RF application
• EV charging station
