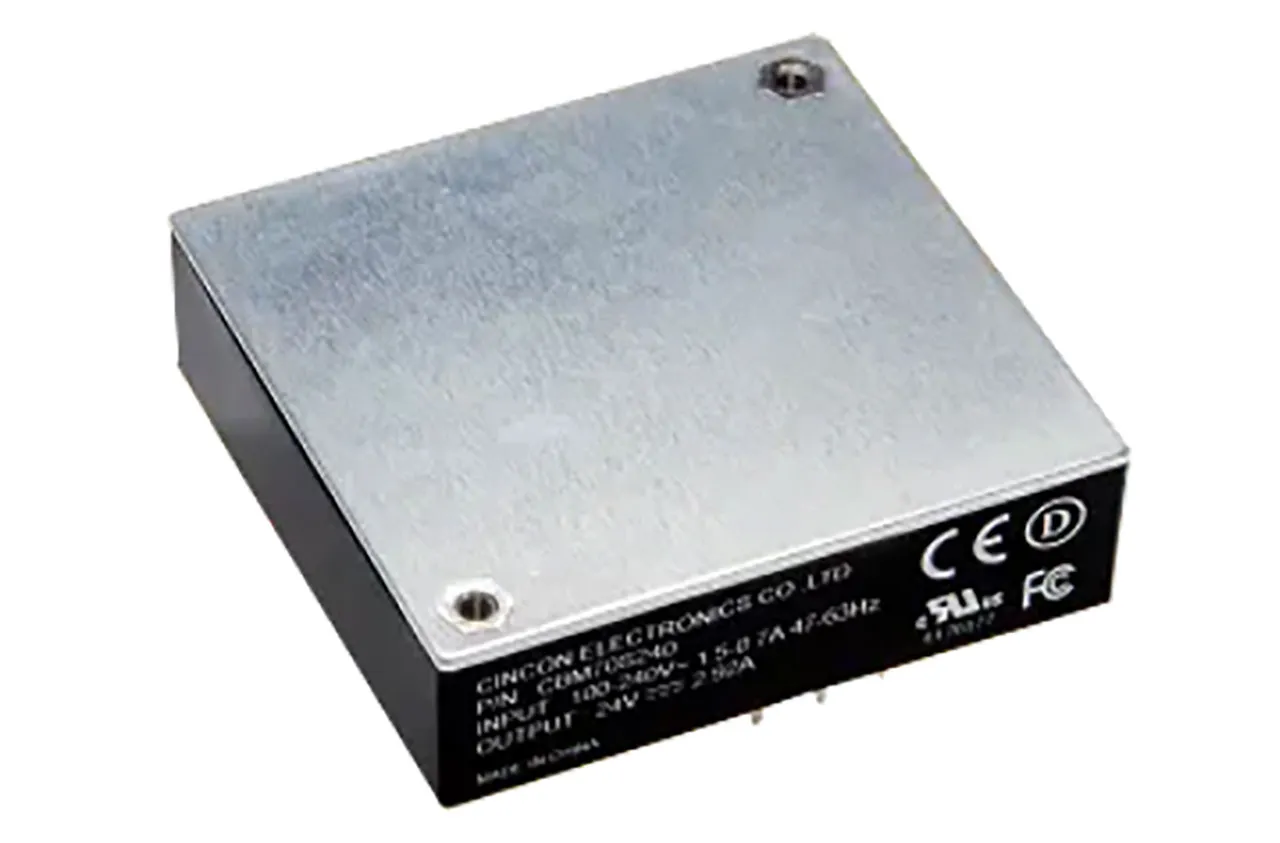

70W AC-DC Brick Power Supply 24VDC 2.92A
Features
- Universal Input Range 90 to 264 Vac
- Efficiency up to 88.5%
- Full Load with Baseplate Cooled and No Fan Required
- Wide Operating Temperature Range
- 17mm Ultra Low-Profile Half Brick Package
- Built-in EN55032 Class B Filter
- All in One without External Components
- No Load Input Power Consumption<150mW
- Over Temperature Protection
- Over Voltage Protection
- Continuous Short Circuit Protection
- Safety IEC/EN/UL 62368-1 Approval
- Meets Class I
- Operating Altitude 5000m
Product Identification
Product Type:Power Module SMPS
Manufacturer Series:CBM70S
Compliance
Agency Approvals: CE, CUL, EN, FCC, UL
Dimensions & Appearance
Color:Black
Style:Half Brick
Height:0.67 in.
Width:2.28 in.
Length:2.40 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.92 A
Features
Minimum Isolation Voltage:3000V
Efficiency:88.5%
Power Rating:70.08 W
