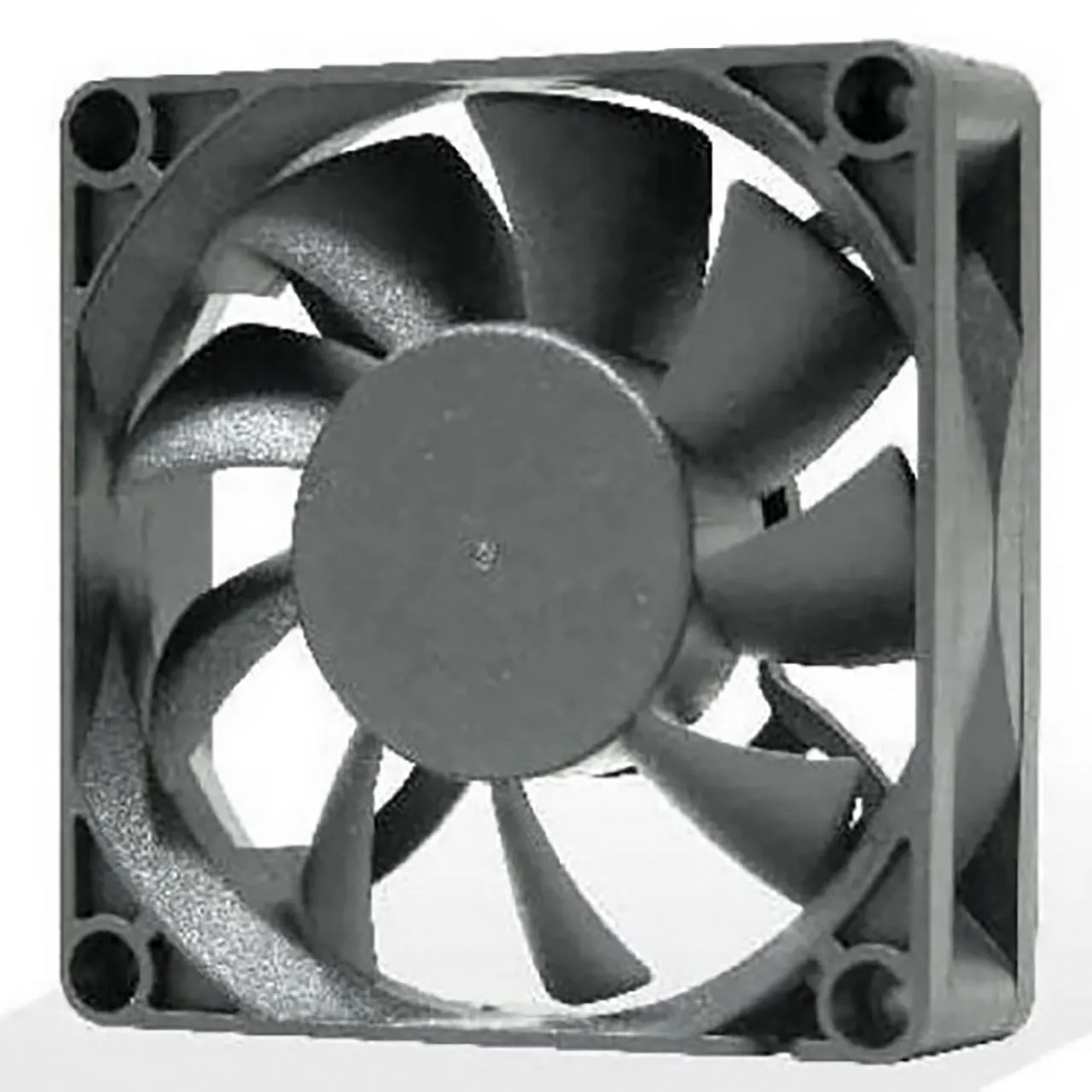

70 mm x 70 mm x 25 mm Tube Axial Fan 24 VDC Ball Bearing 48CFM 47.5dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$12.350

In Stock: 0

Quantity	Unit Price	You Save	Discount
5+	$12.350	-	-
25+	$11.450	0.90	7.29%
100+	$10.550	1.80	14.57%

Features

Voltage Rating: 24 VDC
Height: 70 mm
Width: 70 mm
Depth: 25 mm
Air Flow (CFM): 48
Bearing: Ball
Current Rating: 260 mA
Power Rating: 6.24 W
Agency Approvals: CE
Noise (dBA): 47.5
Termination: 12" Wires
Product Type: 70mm x 70mm DC Fan
Speed: 5000 rpm
Maximum Pressure: 0.32 in.
Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 5000 rpm.
