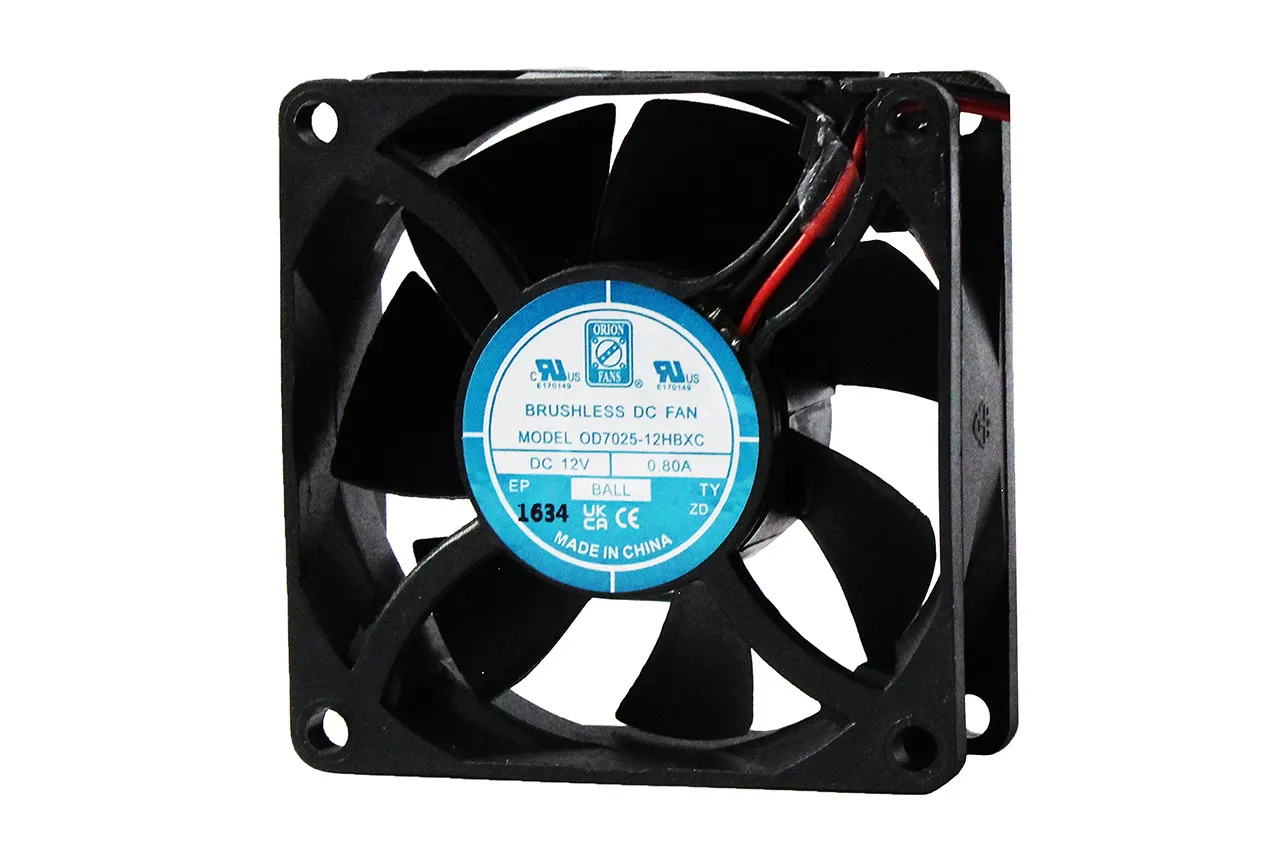

70 mm x 70 mm x 25 mm Tube Axial Fan 12 VDC Ball Bearing 57CFM 54.3dBA 12" Wires (3)

Features

  • Voltage Rating: 12 VDC
  • Height: 70 mm
  • Width: 70 mm
  • Depth: 25 mm
  • Air Flow (CFM): 57
  • Bearing: Ball
  • Current Rating: 800 mA
  • Power Rating: 9.6 W
  • Agency Approvals: CE
  • Noise (dBA): 54.3
  • Termination: 12" Wires (3)
  • Product Type: 70mm x 70mm DC Fan
  • Speed: 6000 rpm
  • Maximum Pressure: 0.45 in.
  • Additional Features: Open Collector Tach Output
  • Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 6000 rpm.

,
