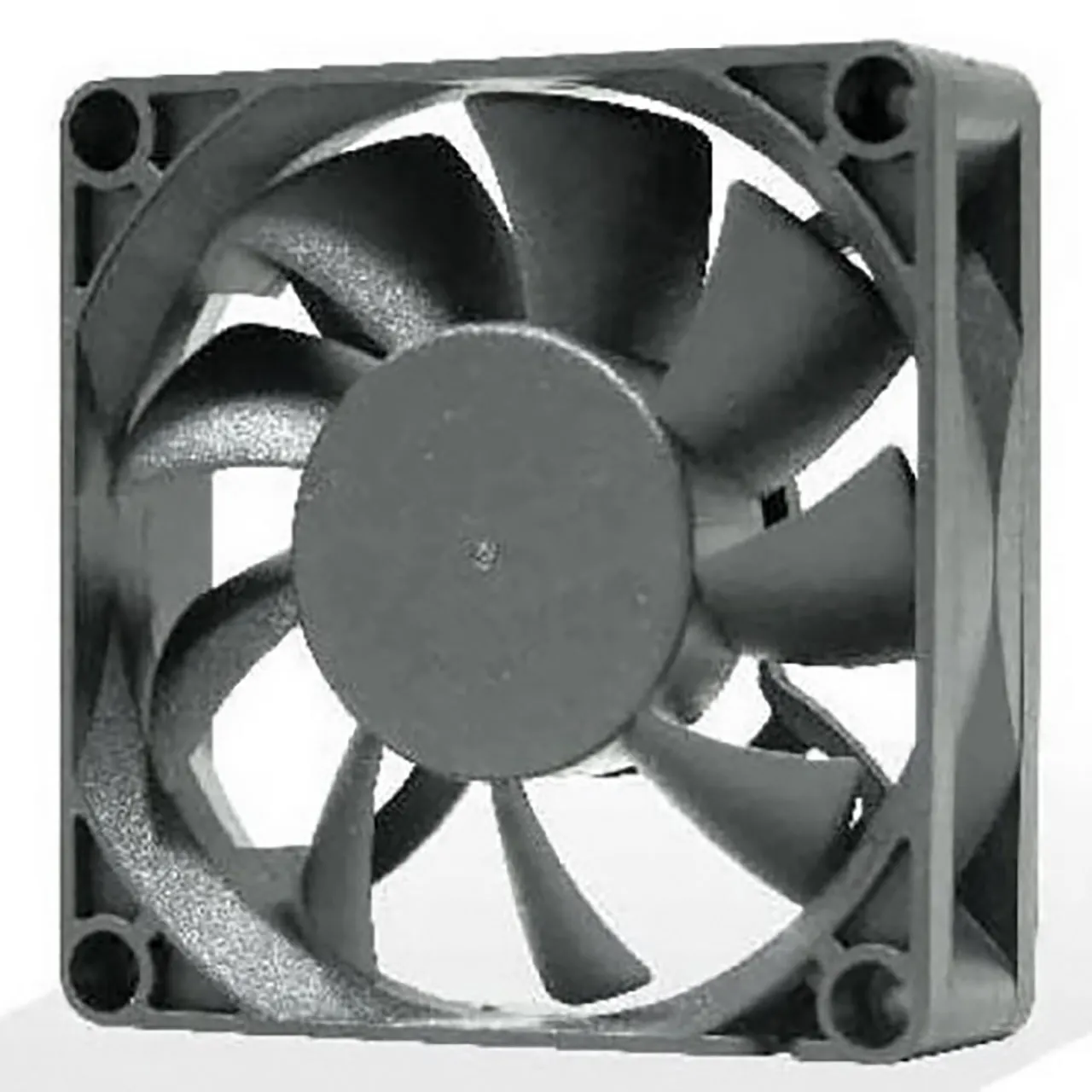

70 mm x 70 mm x 25 mm Tube Axial Fan 12 VDC Ball Bearing 48CFM 47.5dBA 12" Wires (3)

Features

  • Voltage Rating: 12 VDC
  • Height: 70 mm
  • Width: 70 mm
  • Depth: 25 mm
  • Air Flow (CFM): 48
  • Bearing: Ball
  • Current Rating: 420 mA
  • Power Rating: 5.04 W
  • Agency Approvals: UL, CUL, CE
  • Noise (dBA): 47.5
  • Termination: 12" Wires (3)
  • Product Type: 70mm x 70mm DC Fan
  • Speed: 5000 rpm
  • Maximum Pressure: 0.32 in.
  • Additional Features: Open Collector Tach Output
  • Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 5000 rpm.

,
