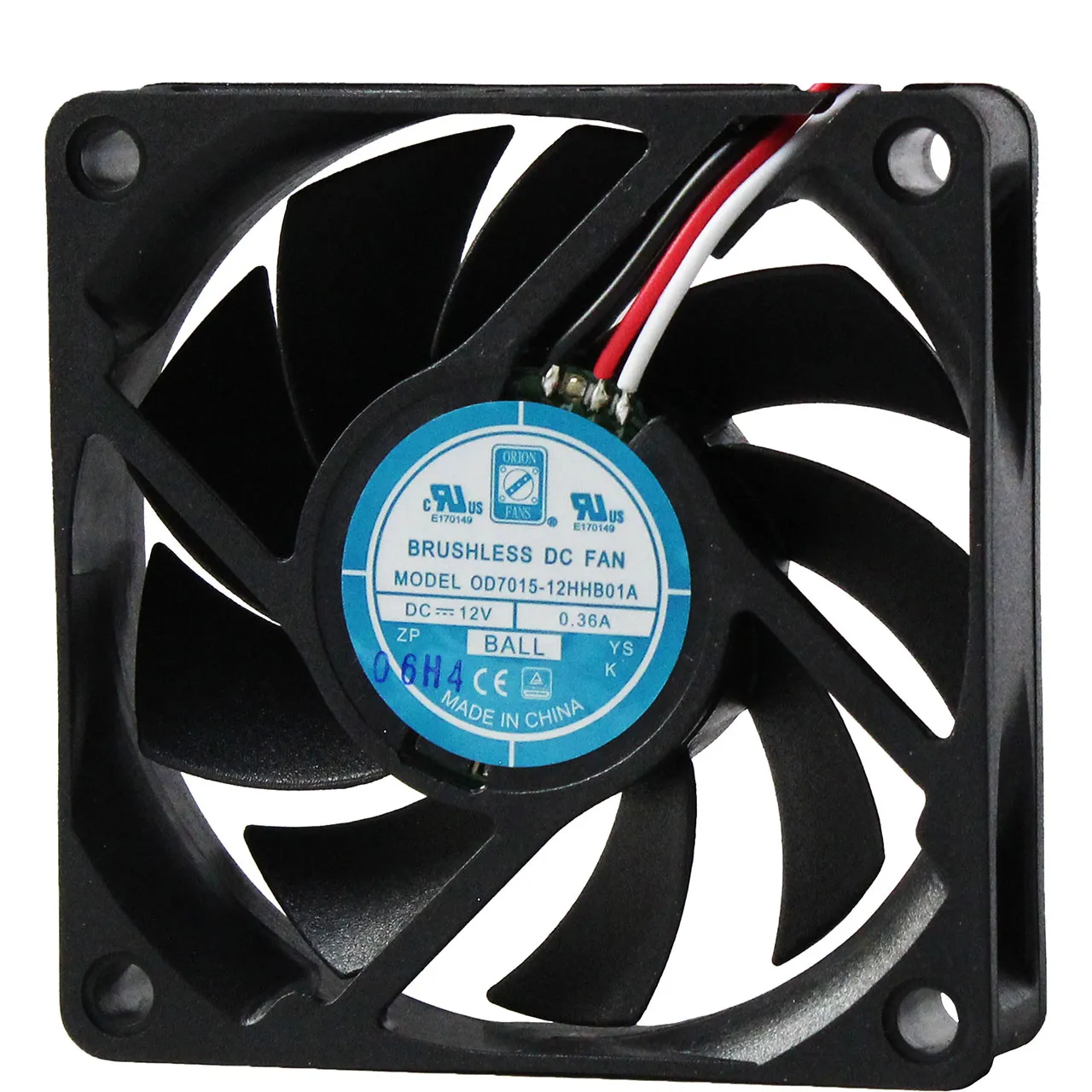

70 mm x 70 mm x 15.5 mm Tube Axial Fan 12 VDC Ball Bearing 23.4CFM 36.3dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$12.550

In Stock: 0

Quantity	Unit Price	You Save	Discount
4+	$12.550	-	-
20+	$11.650	0.90	7.17%
80+	$10.750	1.80	14.34%

Features

Voltage Rating: 12 VDC
Height: 70 mm
Width: 70 mm
Depth: 15.5 mm
Air Flow (CFM): 23.4
Bearing: Ball
Current Rating: 100 mA
Power Rating: 1.2 W
Agency Approvals: UL, CUL, TUV
Noise (dBA): 36.3
Termination: 12" Wires
Product Type: 70mm x 70mm DC Fan
Speed: 3500 rpm
Maximum Pressure: 0.13 in.
Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3500 rpm.
