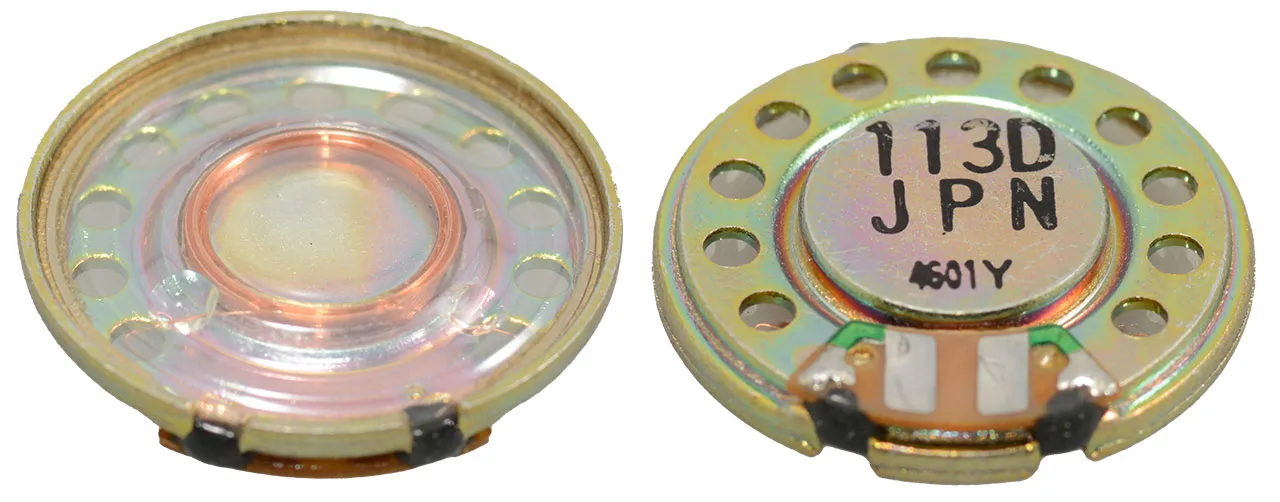

7 Ohms Flat Round General Purpose Speaker 200 mW 740 Hz to 4 kHz

Specifications

  • Technology: Magnetic
  • Type: General Purpose
  • Frequency Range: 740 Hz to 4 kHz
  • Frequency - Self Resonant: 740 Hz
  • Impedance: 7 Ohms
  • Efficiency - dBA: 77
  • Efficiency - Testing: 1mW
  • Efficiency - Type: Sound Pressure Level (SPL)
  • Power - Rated: 200 mW
  • Port Location: Top
  • Shape: Round
  • Termination: Solder Pads
  • Size: 0.787" Dia (20 mm)
  • Height - Seated (Max): 0.138" (3.5 mm)
  • Base Number: EAS-2

Dimensions & Appearance

Depth:0.138 in.
Diameter:0.787 in.
Width:0.787 in.
Length:N/A

Input

Input Power (max) (W):0.20
Nominal Input Power (W):0.20

Output

Output:77 dB

Features

Magnet Size (Diameter x H) (inches):0.39 x 0.04
Impedance:7 Ohm
Termination Style:Solder Pad
Frequency Range:740 Hz to 4000 Hz
,
