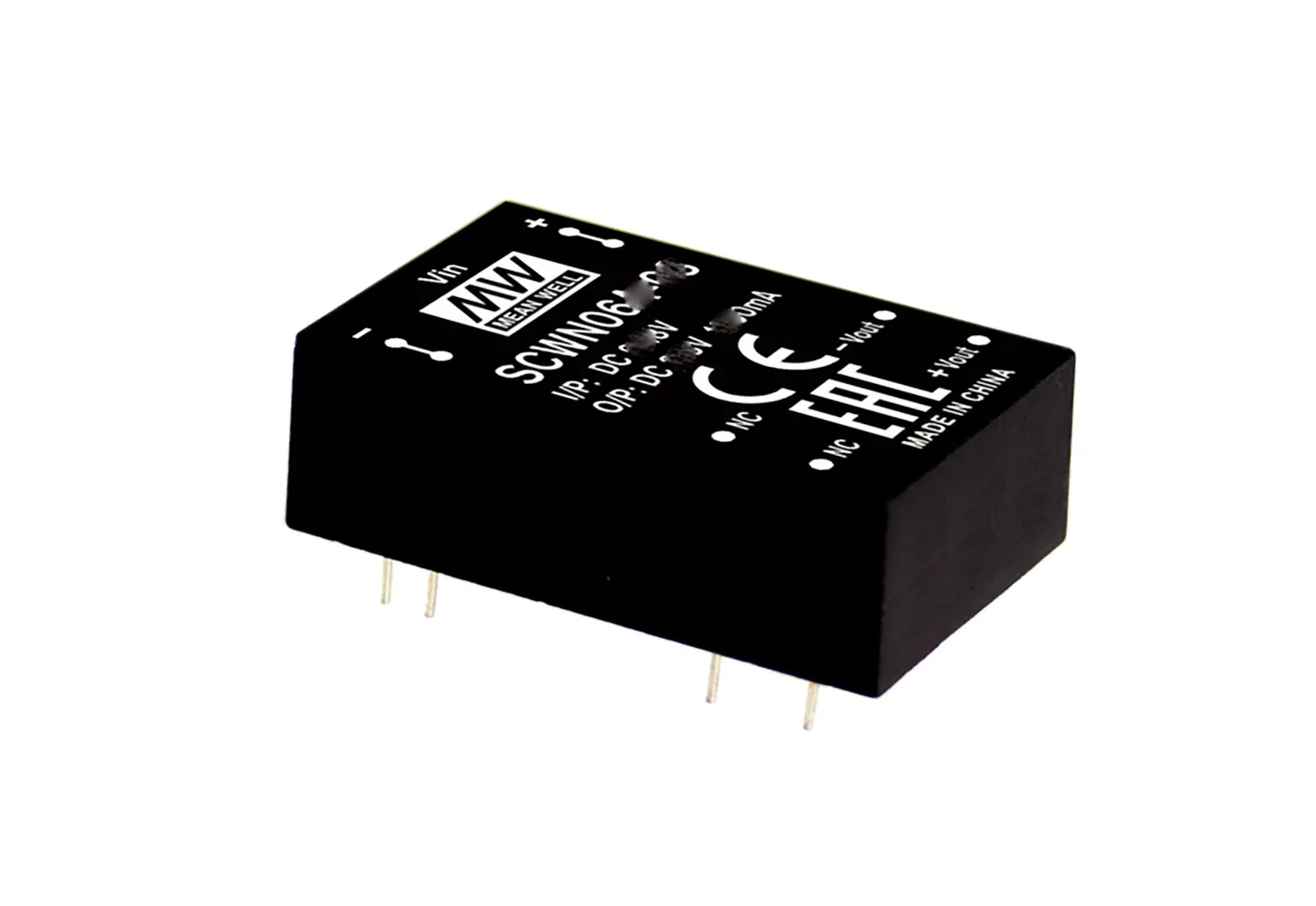

6W DC-DC Regulated Converter DIP Package 12V Nominal Input 12V 500mA Output

Output: 12 Volts DC @ 500 mA

Features:

  • DIP24 package with industry standard pinout
  • 2:1 wide input range
  • No minimum load required
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 87%
  • Protections: Short circuit (Continuous) / Overload
  • 3kVDC I/O isolation
  • 3 years warranty

Applications

  • Telecom/Datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Isolated
Product Type:DC-DC Regulated Single Output SMPS
Manufacturer Series:SCWN06

Dimensions & Appearance

Height:0.40 in.
Width:0.80 in.
Length:1.25 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Voltage Range:9 VDC to 18 VDC
Input Voltage:12 VDC
Maximum Input Current:0.6 A

Output

Number of Outputs:1
Output Connector Type:DIP-24
Output Voltage:12 VDC
Output Current:0.50 A
Additional Output Voltages (VDC):N/A

Features

Pins:8
Efficiency:83%
Power Rating:6 W
,
