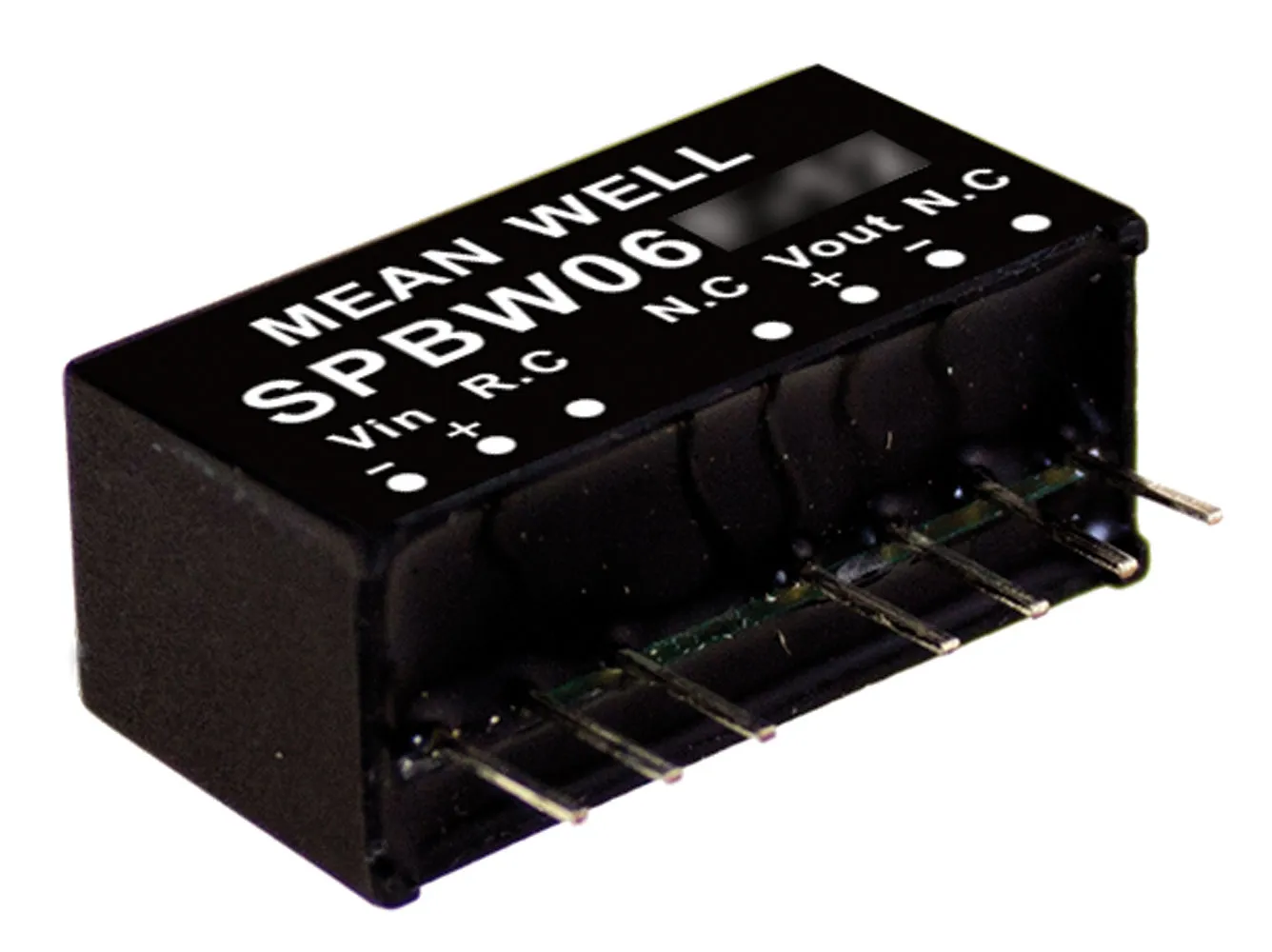

6W 5V 1.2A SIP-8 Isolated Regulated DC-DC Converter 48Vin

Output: 5 Volts @ 1300 milliamps

Features

  • SIP8 package with industry standard pinout
  • 4:1 ultra-wide input range
  • Input voltage range: 18V to 75V
  • Line regulation: ±0.5%
  • Load regulation: ±0.5%
  • Operating temperature range: -40°C to +85°C
  • No minimum load required
  • Complies with EN55032 radiated Class A without additional components
  • High efficiency up to: 85%
  • Protections: Short circuit (continuous), overload
  • 1.5KVDC I/O isolation
  • Remote ON/OFF control
  • 3 year warranty

Applications

  • Telecom and Datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Isolated
Product Type:DC-DC Regulated Single Output SMPS
Manufacturer Series:SPBW06

Dimensions & Appearance

Height:0.44 in.
Width:0.36 in.
Length:0.86 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Maximum Input Current:0.15 A
Input Voltage Range:18 VDC to 75 VDC
Input Voltage:48 VDC

Output

Number of Outputs:1
Output Connector Type:SIP-8
Output Voltage:5 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.20 A

Features

Pins:8
Efficiency:85%
Power Rating:6 W
,
