6W 24V 250mA Regulated DC-DC-Converter 9-75V Input 1x1 Inch PCB Mount

Features

• Complies with BS EN/EN55032 radiated Class A without additional components
• Input Current: 8 mA to 294 mA
• Output Voltage: 24 V @ 250 mA
• DIP 1"x1" package with industrial standard pin-out
• 8:1 (9 to 75 VDC) wide input range
• Wide operating temperature range -40 to +90°C
• No minimum load required
• Protections: Short circuit (Continuous)/ Overload/ Over voltage / Input under voltage
• Remote ON/OFF control (optional)
• 3KVDC I/O isolation
• 3 year warranty

Overview

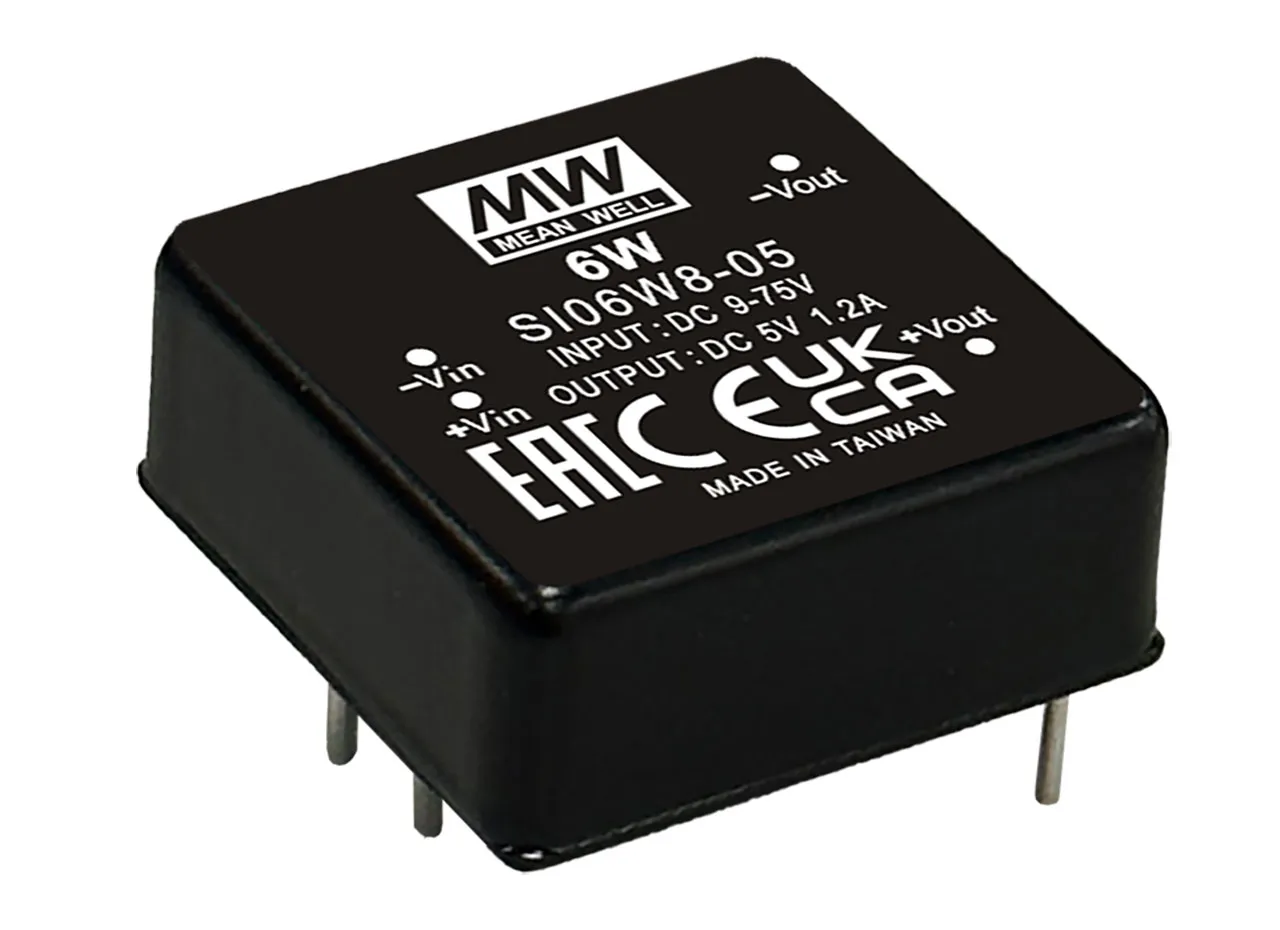

SI06W8 and DI06W8 series are 6W isolated and regulated module type DC-DC converters with a DIP 1"x1" package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40 to +90°C, 3KVDC I/P to O/P isolation voltage, complies with BS EN/EN55032 radiated Class A without additional components, has continuous-mode short circuit protection, and more. The models input voltage of 9 to 75VDC 8:1 wide input range, and various output voltage, 3.3V/5V/9V/12V/15V/24V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for many applications such as industrial control, telecommunication field, distributed power architecture, and more.

Applications

• Bus, tram, metro or railway system
• Telecom/datacom system
• Wireless network
• Industrial control facility
• Instruments
• Analyzers
• High vibration, heavily dusty, extremely low or high temperature harsh environment
