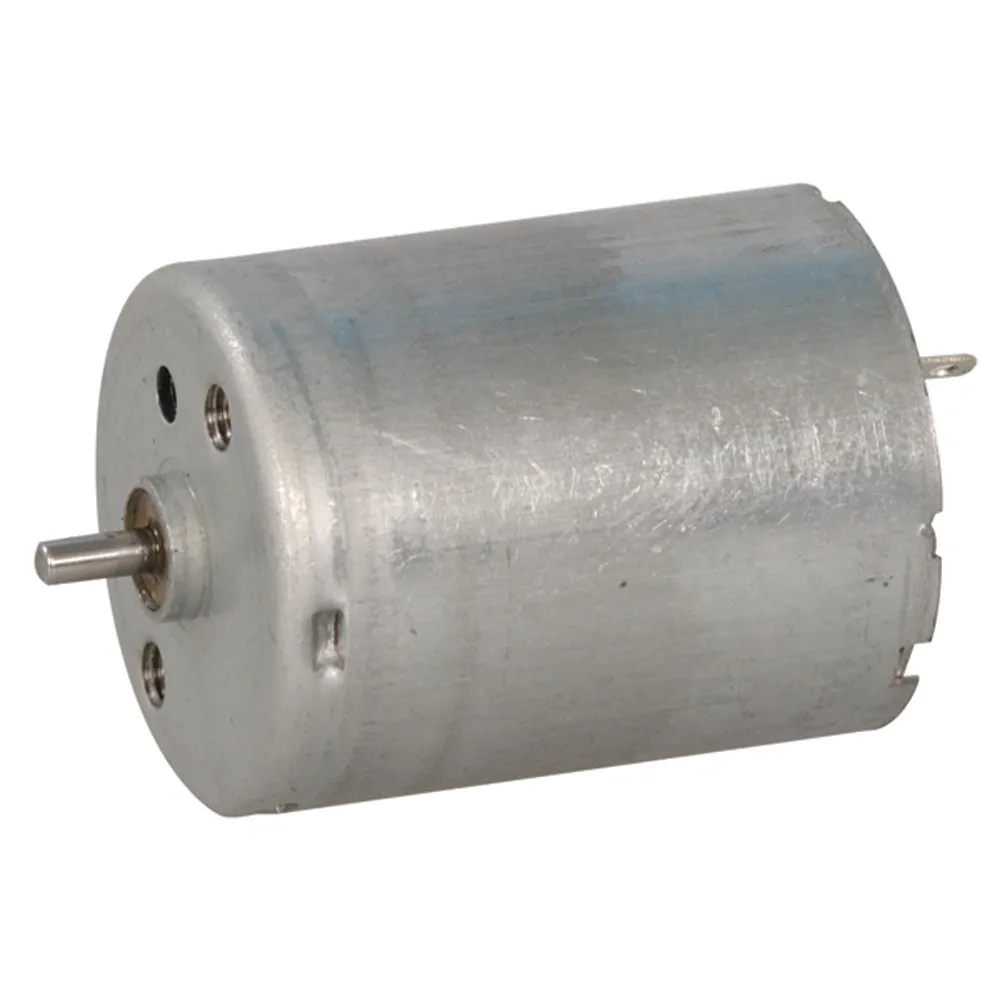

6V DC Motor


Features:

  • Voltage: 6V
  • Voltage range: 1-6V
  • Rated power output: 1.68W
  • Current at max. efficiency: 450mA
  • Max. efficiency: 63%
  • Max.Torque: 173.3 g-cm
  • Max. RPM: 4787
  • No load RPM: 6000
  • No load current: 65mA
  • Shaft size: 0.078" Diameter x 0.19"L
  • Motor Size: 0.96" Diameter x 1.2"L
  • Screw Mount Dimensions: M3 x 0.5

    • Dimensions & Appearance

    Dimensions:.96"Dia. x 1.2
    Shaft Diameter:0.078 in.
    Shaft Length:0.19 in.
    Body Diameter:0.96 in.
    Body Length:1.2 in.

    Input

    Input Voltage Range:1 VDC to 6 VDC

    Features

    Terminal Type:0.15"/Solderable
    Current @ Max. Efficiency (A):0.45
    Speed @ Max. Efficiency (RPM):4787
    Torque @ Max. Efficiency (g-cm):34.28
    Efficiency:63%
    Voltage Rating:6 VDC
    ,
