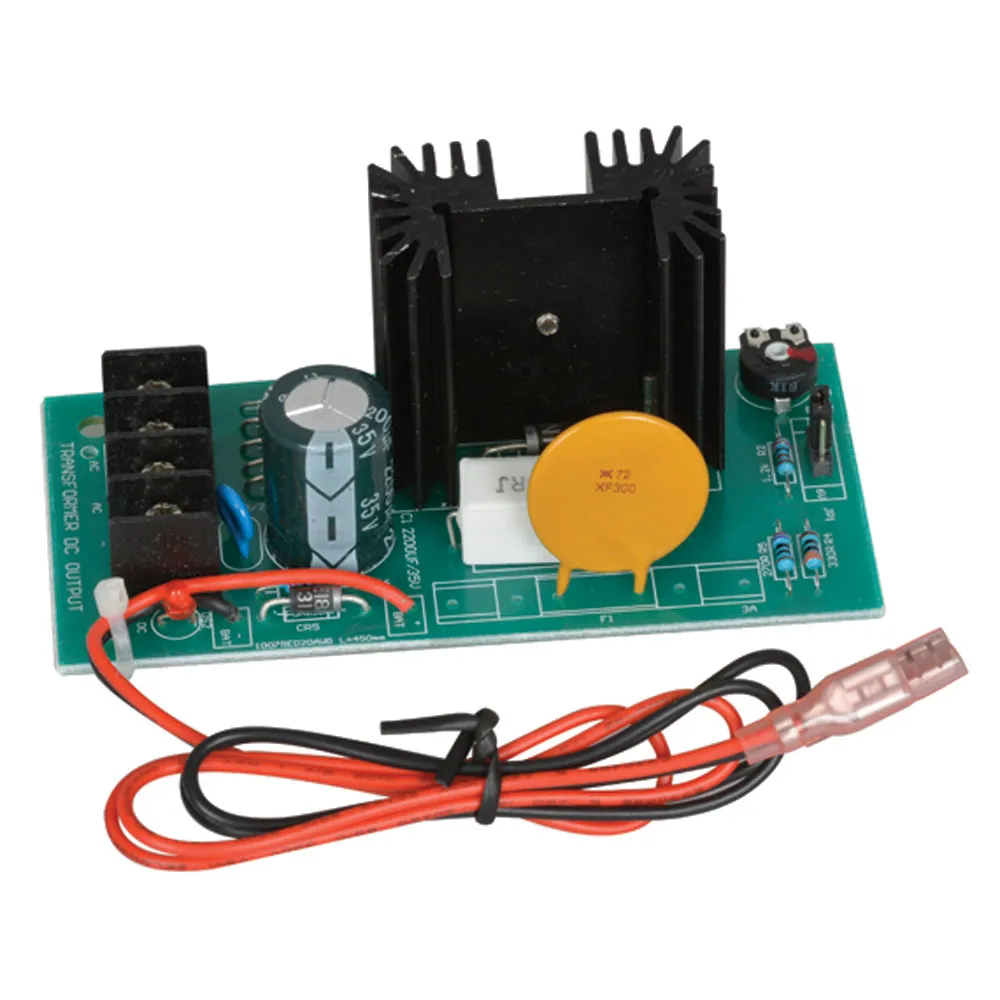

6V or 12V Auxiliary Power Supply and Charger

Output: 6 Volt or 12 Volt @ 1.5 AmpsThis combination power supply/charger provides 6 or 12 VDC, 1.5A output for powering alarm devices or similar. Voltage is user-selectable by changing the output jumper position on the datasheet.

Features:

• Input: VAC 16.5 40VA
• Power supply output (to power supply backup battery) 12VDC Mode: Charging voltage: 13.6VDC, Charging current: 130mA Maximum
• Power supply output (to load): Voltage: 13.6 VDC, Current: 1.5 amps Max (without battery backup)
• Standby time: 24Hrs @ 200mA drain level (without battery backup)
• Back up battery: Standard 4AH, Sealed lead-acid type (not included)
• LED's: Green remains ON as long as AC power in connected to the terminal strip
• UL Listed

Recommended Power Supply: 16 VAC 2.4A wall adapter with screw terminal output (P/N: 2230635)
