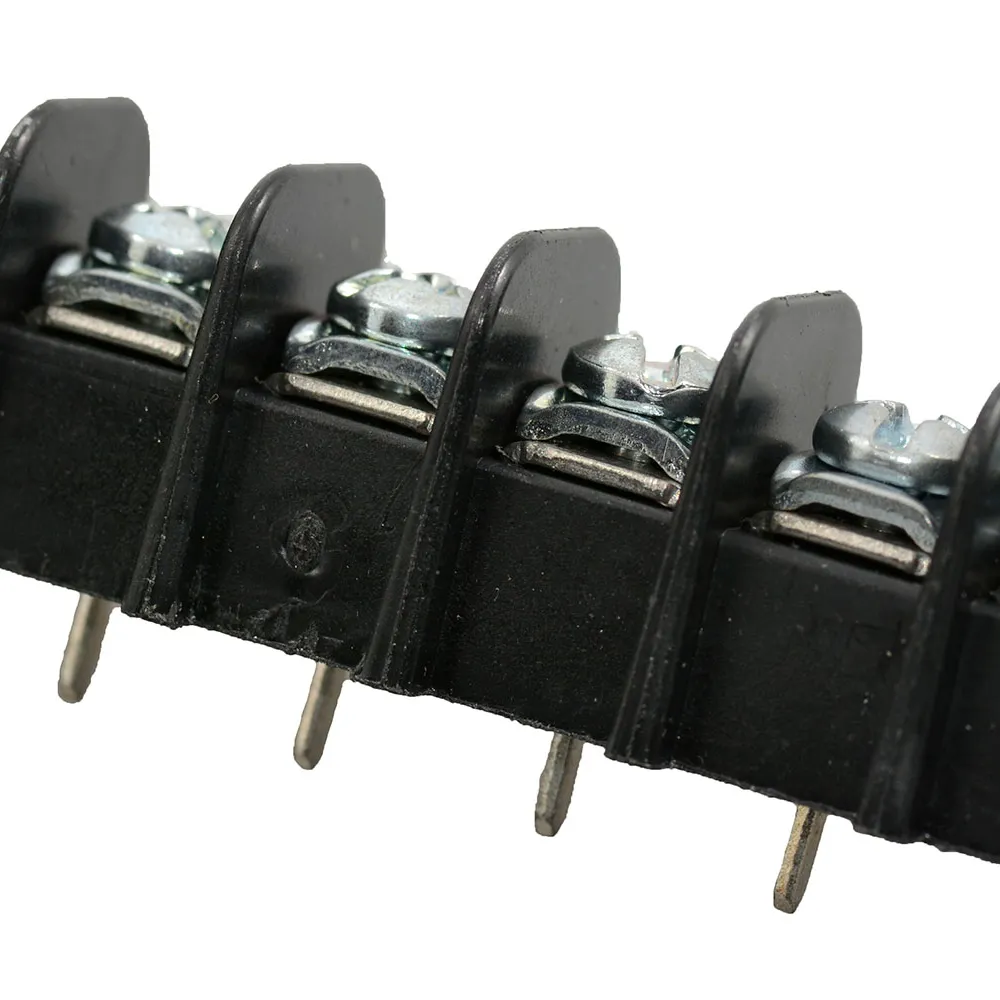

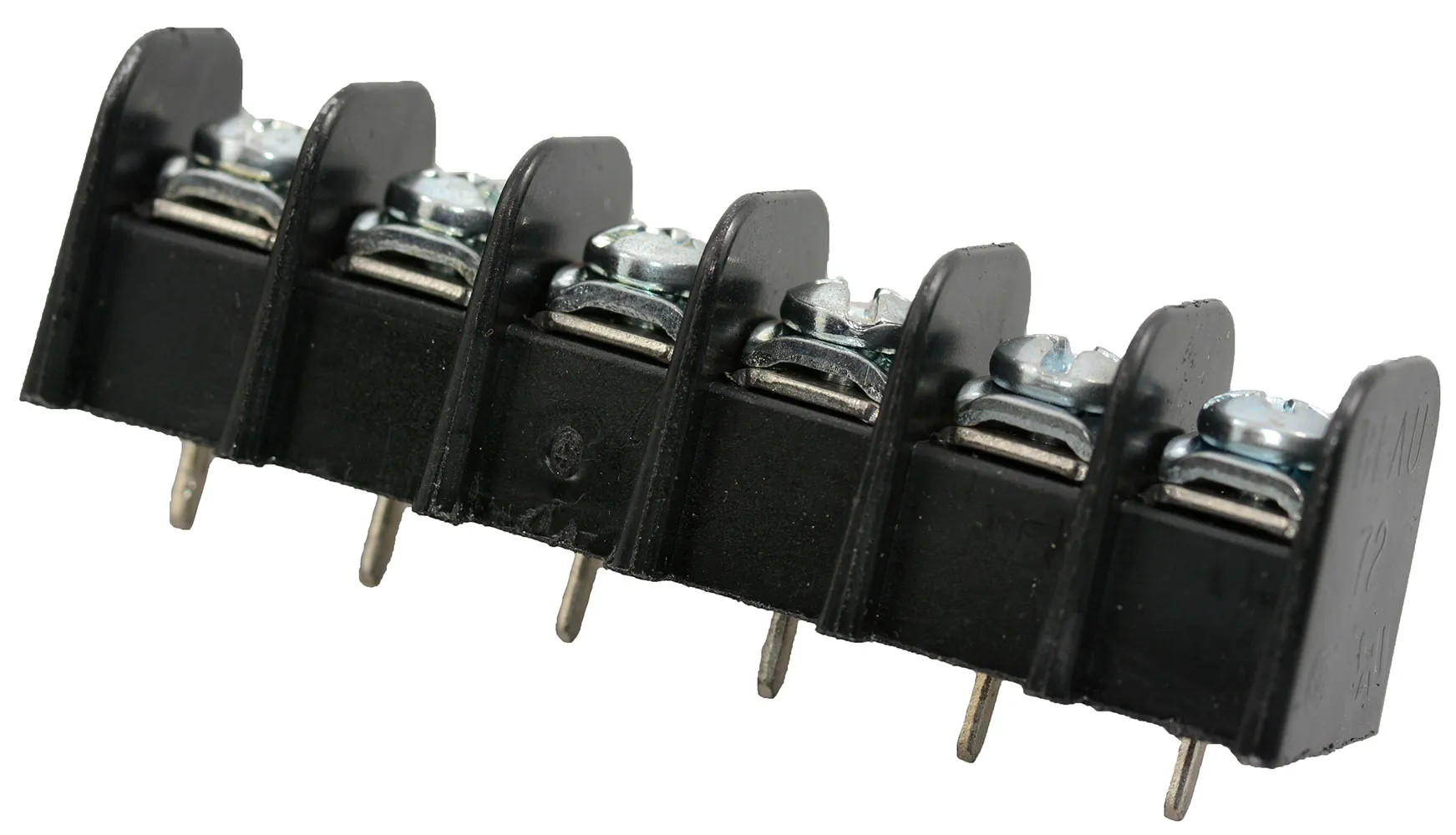

6-Position Double Row Barrier Strip Terminal Block

12 Contacts, 6 Positions

These series 77 screw terminals are ultrasonically welded into the thermoplastic insulator. The terminal cannot be twisted or rotated even under excessive force.

Features

  • Positions: 6
  • Pitch: 0.375" (9.53mm)
  • Low profile
  • Current rating: 15A
  • Double row
  • Terminals: Brass, nickel-plated
  • Insulator: Thermoplastic, UL94V0
  • Screws: #6-32 BH, Phillips/Slotted, Steel/Zinc chromate-plated
  • Block length: 73.8 mm
  • Block width: 18.3 mm
  • Block height: 11.2 mm
  • Sealed

,
