6-Conductor (3 Pair) Shielded Multi-Pair Cable 24AWG Low Cap 65% Braid 100-Foot Reel UL2919

Features:

• Annealed stranded tin copper conductors
• 100% Mylar/aluminum foil coverage with tin copper braid 65% coverage
• Stranded tin copper drain wire, poly "low cap"
• 6 conductors (3 pairs)
• Colors: White/Blue paired with Blue/White, and White/Orange paired with Orange/White, and White/Green paired with Green/White
• 24 AWG unshielded wire (7 x 32 strand)
• Gray PVC jacket
• Insulation Material: Polyethylene
• Insulation Thickness: 0.015"
• Nominal outer diameter: 0.283"
• CMUL 2919 30V, -20°C to 80°C, VW-1
• Reel length: 100 feet

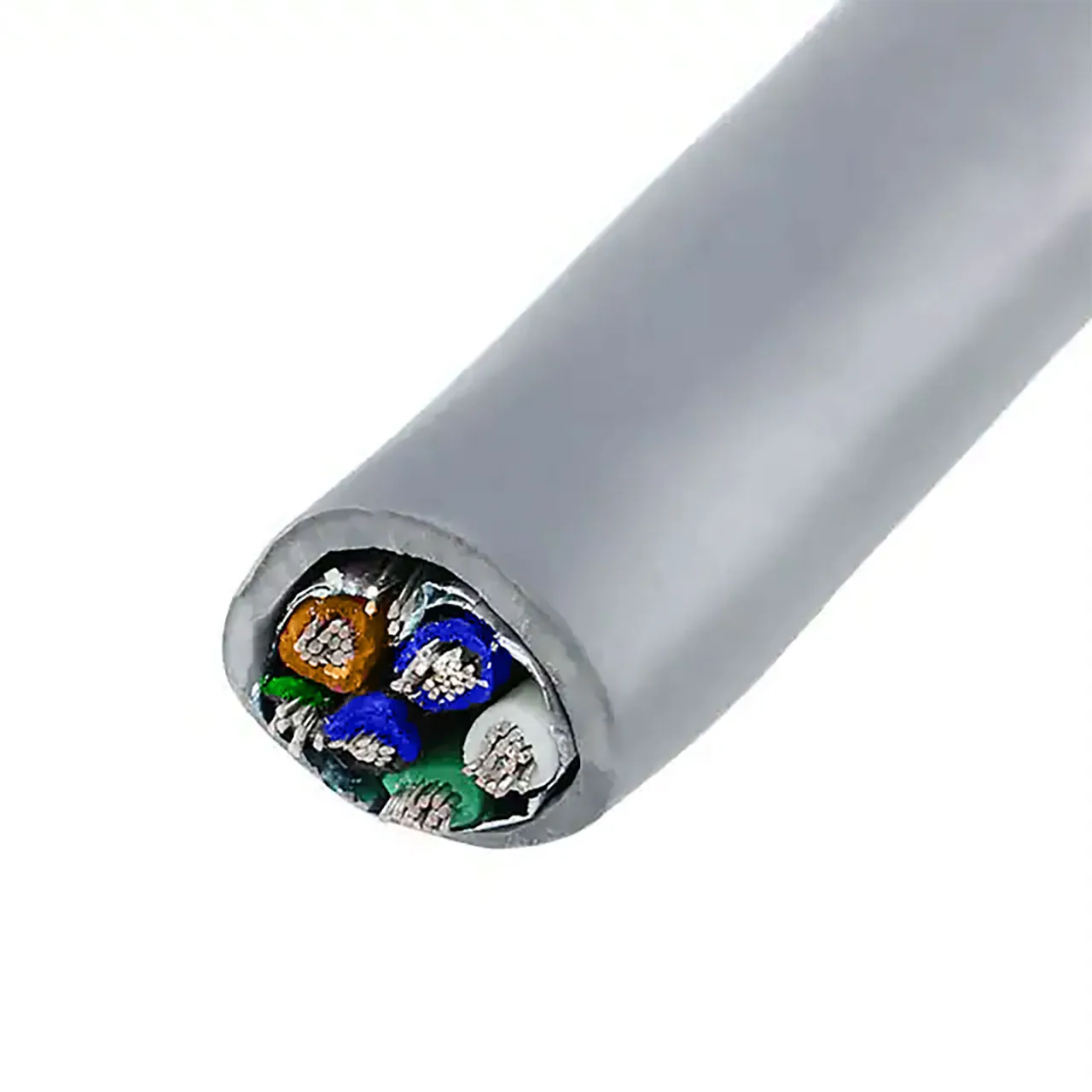

Overview

Multi-pair cable contains individually jacketed conductors within an overall PVC jacket. This model features six 24 AWG conductors arranged as three pairs and is shielded with 100% mylar/aluminum foil coverage with tin copper braid 65% coverage and includes a tinned copper drain wire.
