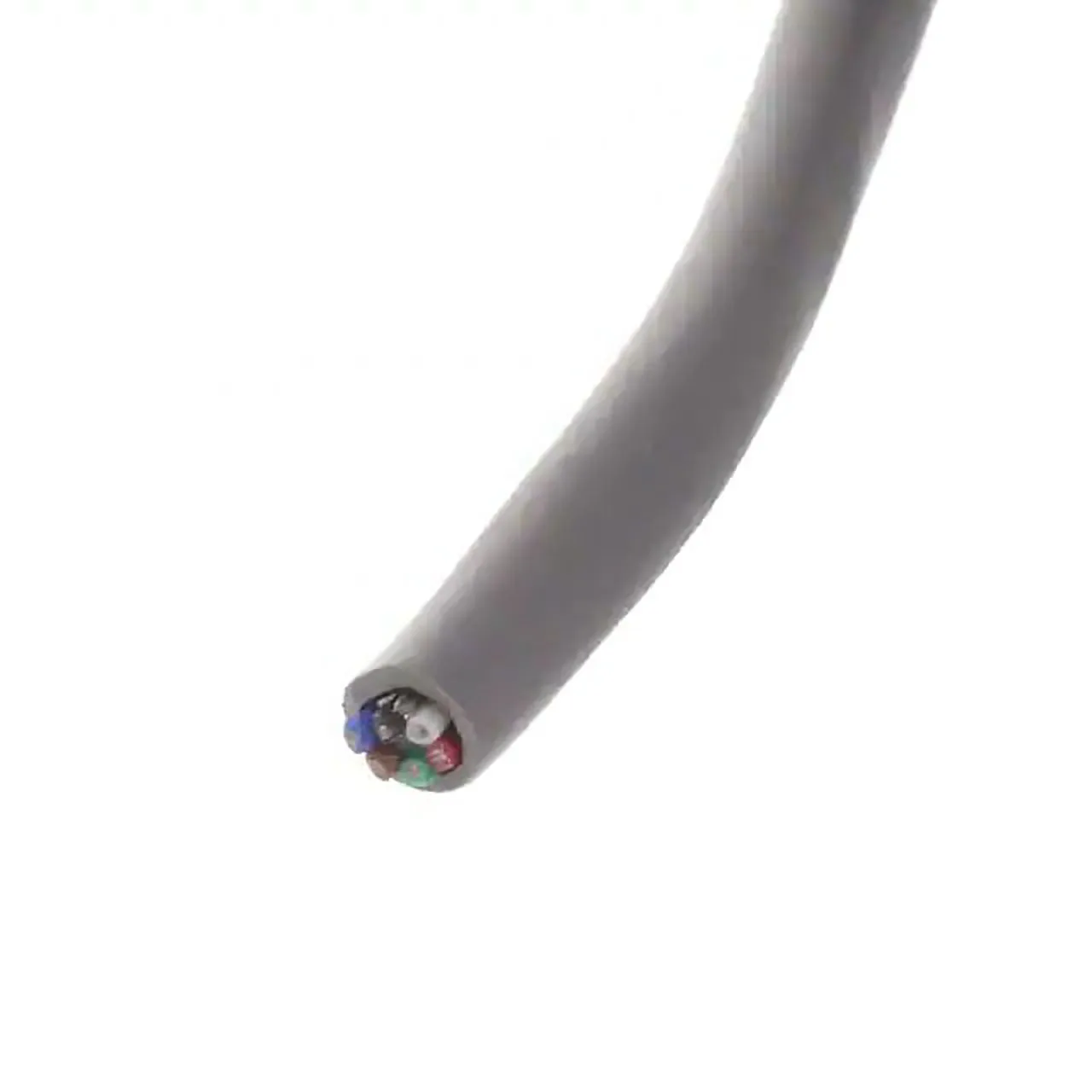

6-Conductor 24AWG Shielded Multi-Conductor Cable with Drain Wire 100-Foot Reel UL2464

Features:

• Unshielded multi-conductors
• 100% aluminum foil coverage with 25% overlap with annealed stranded tin copper (ASTM B-33) drain wire
• Annealed stranded tin copper conductor
• 6 conductors
• Colors: Black, Red, Green, White, Brown, Blue
• 24 AWG unshielded wire (7 x 32 strand)
• Gray PVC jacket
• Insulation Material: PVC
• Semi-Rigid PVC Insulation Thickness: 0.010"
• Rated 300V Temp: 80°C (UL 2464); 75°C (CM)
• Nominal outer diameter: 0.205"
• UL 2464, CM, CMG, UL VW-1
• Reel length: 100 feet

Overview

Multi-conductor cable contains individually jacketed conductors within an overall PVC jacket. This model features six 24 AWG conductors and is shielded with 100% aluminum foil coverage with 25% overlap with an annealed stranded tin copper drain wire.
