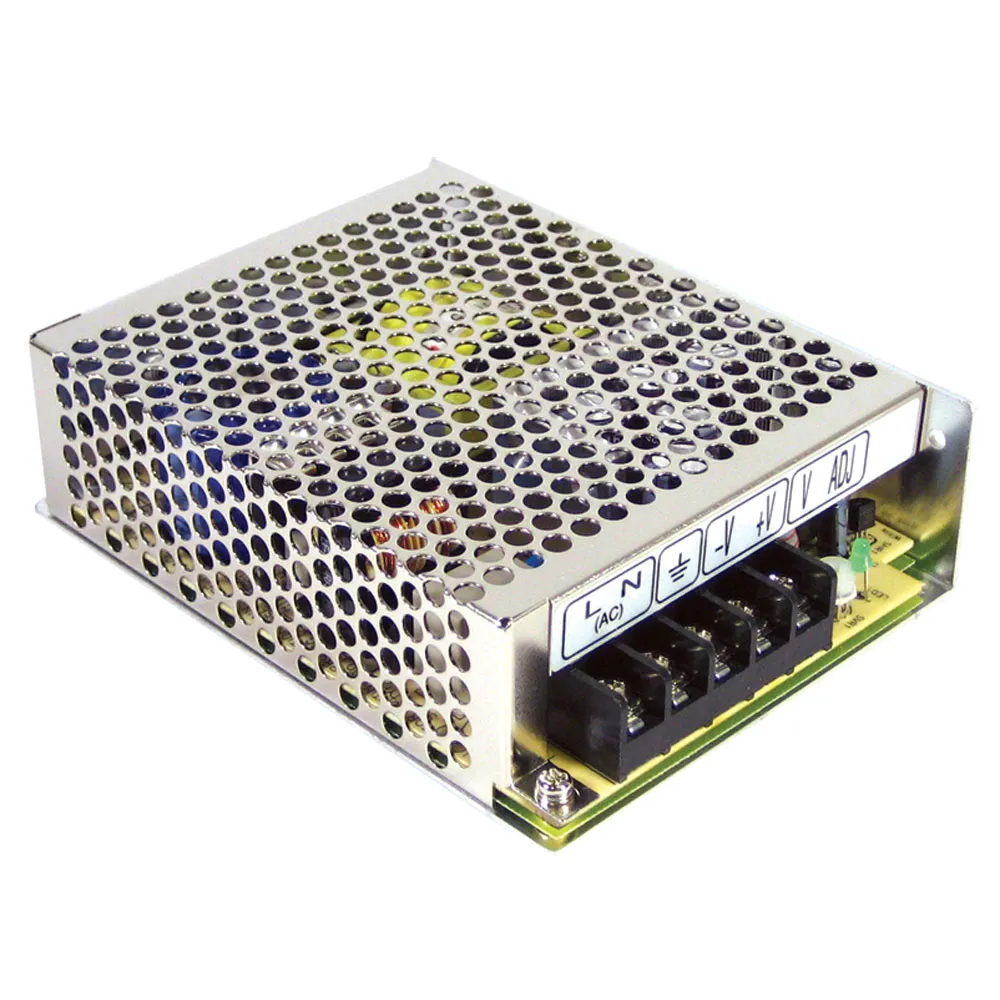

68W Dual Output Regulated Switching Power Supply


Channel 1: 5 Volts @ 4 Amps
Channel 2: 24 Volts @ 2 Amps

Features:

  • Input voltage range: 88-264VAC @ 47-63Hz, or 125-373VDC
  • Efficiency: 82%
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Withstand 300VAC surge input for 5 seconds
  • LED indicator for power on
  • High operating temperature up to 70°C
  • 100% full load burn-in test
  • Withstand 5G vibration test
  • Size: 5.1"L x 3.9"W x 1.5"H
  • Weight: 0.97 lbs.

    • Product Identification

    Type:Auto Switching SMPS
    Product Type:AC to DC Power Supply
    Manufacturer Series:RID-65

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Multiple Output
    Color:Silver
    Height:1.5 in.
    Width:3.9 in.
    Length:5.1 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:88 VAC to 264 VAC
    Maximum Input Current:2 A

    Output

    Number of Outputs:2
    Output Voltage (Channel 1):5 VDC
    Output Current (Channel 2):2 A
    Output Voltage (Channel 2):24 VDC
    Output Voltage:5 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):24
    Output Current (Channel 1):4 A
    Output Current:8 A

    Features

    Minimum Isolation Voltage:3000V
    Efficiency:82%
    Power Rating:68 W
    ,
