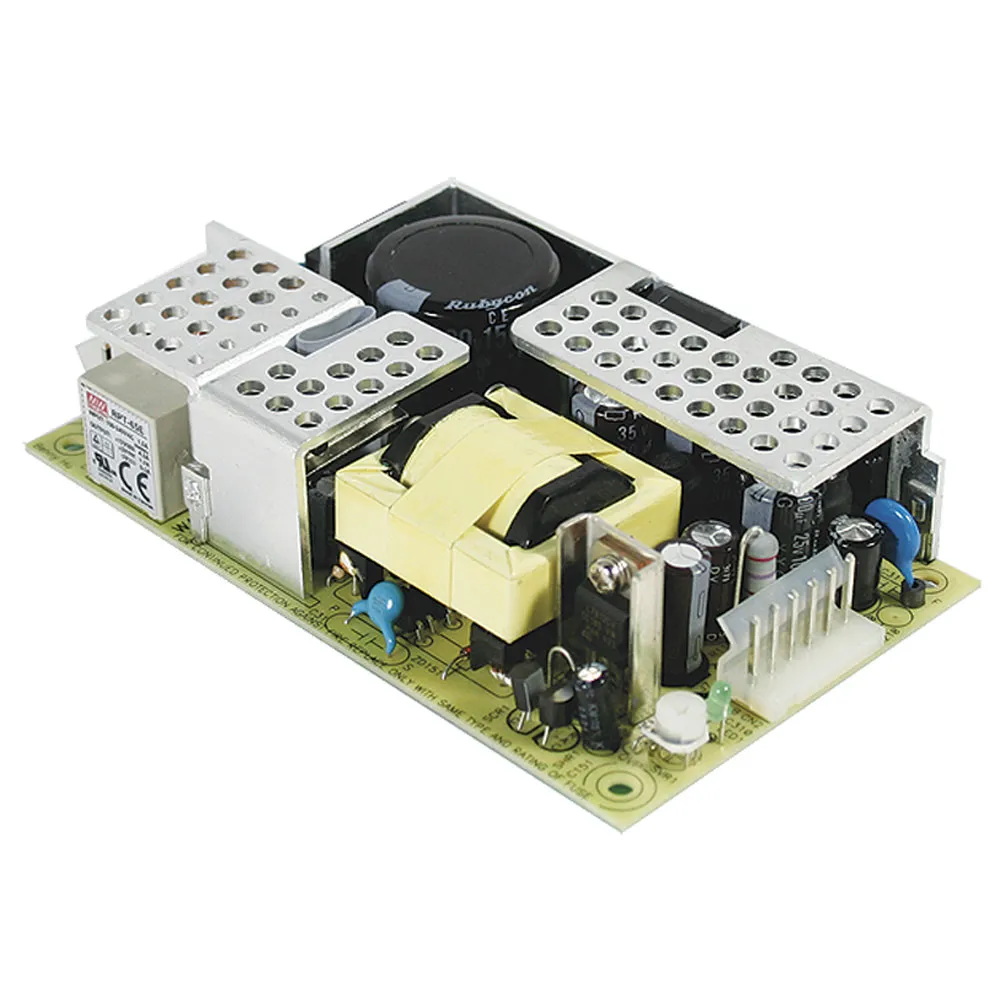

66W Triple Output AC/DC Regulated Switching Open-Frame Power Supply

Features

  • Input: 90-264VAC @ 47-440Hz, or 127-370VDC
  • Efficiency: 81%
  • Protection: Short-circuit, overload, over-voltage
  • 100% full load burn-in test
  • Size: 5.0L x 3.0W x 1.1H (without case), 5.1L x 3.3W x 1.5H (with case)
  • Weight: 1.04 lbs.
  • Optional enclosed frame case is included

Overview

Ch 1: 24 Volts @ 2.25 Amps
Ch 2: 5 Volts @ 1.2 Amps
Ch 3: 12 Volts @ 0.5 Amps

Product Identification

Manufacturer Series:RPT-65

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Open Frame
Height:1.10 in.
Width:3 in.
Length:5 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 440 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:3
Additional Output Voltages (VDC):5, 12
Output Connector Type:Molex 5273-06
Output Voltage:24 VDC
Output Current:2.25 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:81%
Power Rating:66 W
,
